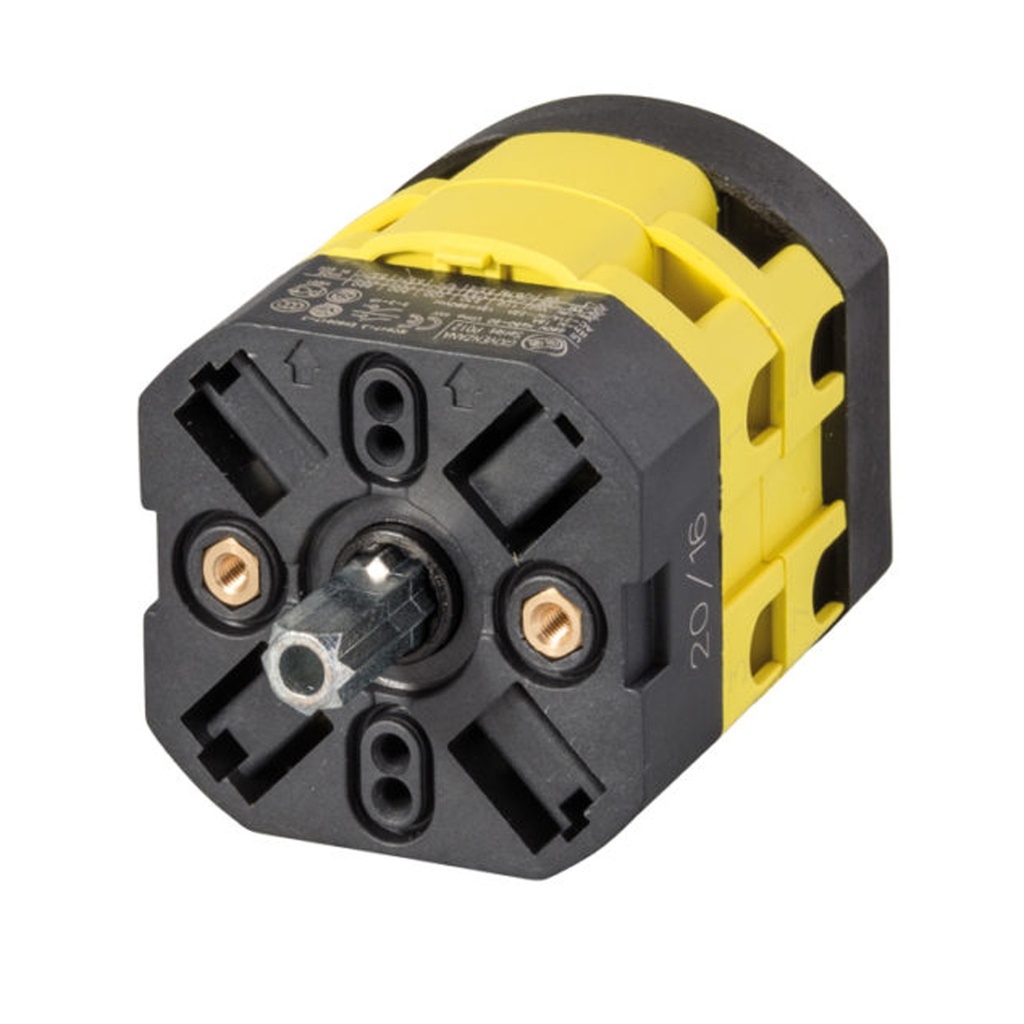

3 Position Rotary Cam Changeover Switch, 20 Amp Two Pole Changeover Switch, Rear Panel Mount, UL508 Listed
The ASI P0200009R is a rear panel mounted 20 amp two pole changeover switch. The ASI P0200009R 20A two pole rotary cam changeover switch features self cleaning contacts, silver alloy plating and a UL94V0 thermoplastic housing. With a UL508 general use rating of 20A at 600Vac, the P0200009R 2 pole, 3 position changeover switch is a compact design to save space, the wire connections are shock hazard proof and information on wiring and identification are laser engraved into the housing. This robust 20 amp, 3 position rotary cam changeover switch is ideal for control and load switching applications in all types of industrial applications. A wide range of NEMA 4X handles and operators are available for the rotary cam changeover switch including a lockable handle capable of accepting padlocks. Custom configurations of rotary cam switches are available upon request.
Specifications
| Cam Switch Amperage | 20 Amps |
| Cam Switch Positions | 3 |
| Cam Switch Type | Change Over |
| Cam Switch Mounting | Rear Panel Mount |
