DB50 Female Breakout Board, 50 Pin Female D-Sub Connector to Screw Terminal Block Interface Module, DIN Rail Mount


Available on backorder

Add to Quote
Buy Save New Price
10 - 24 3% $55.02 Each
25 - 100 5% $53.88 Each
Free DeliveryEasy Return Policy Free DeliveryFree Shipping Over $150* 24 Hours SupportHave a Product Question
SKU: 11009

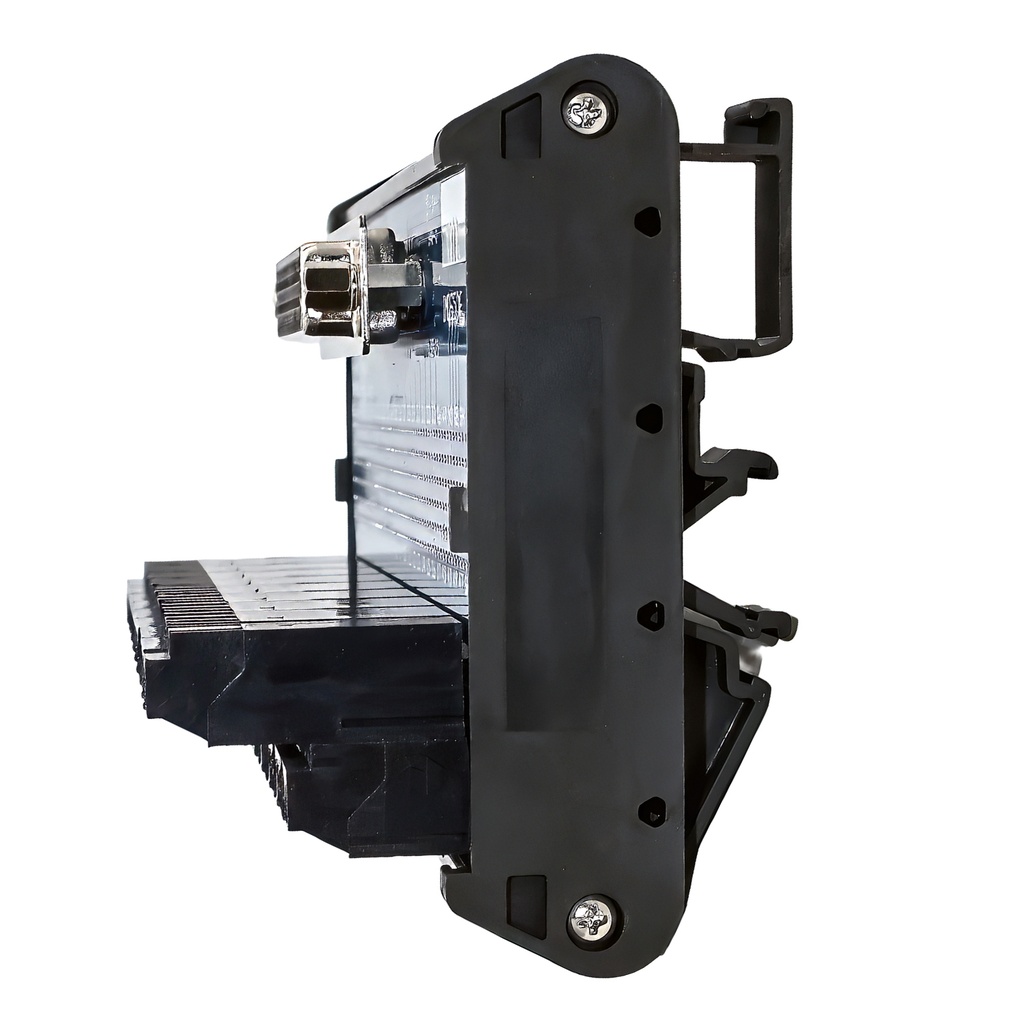

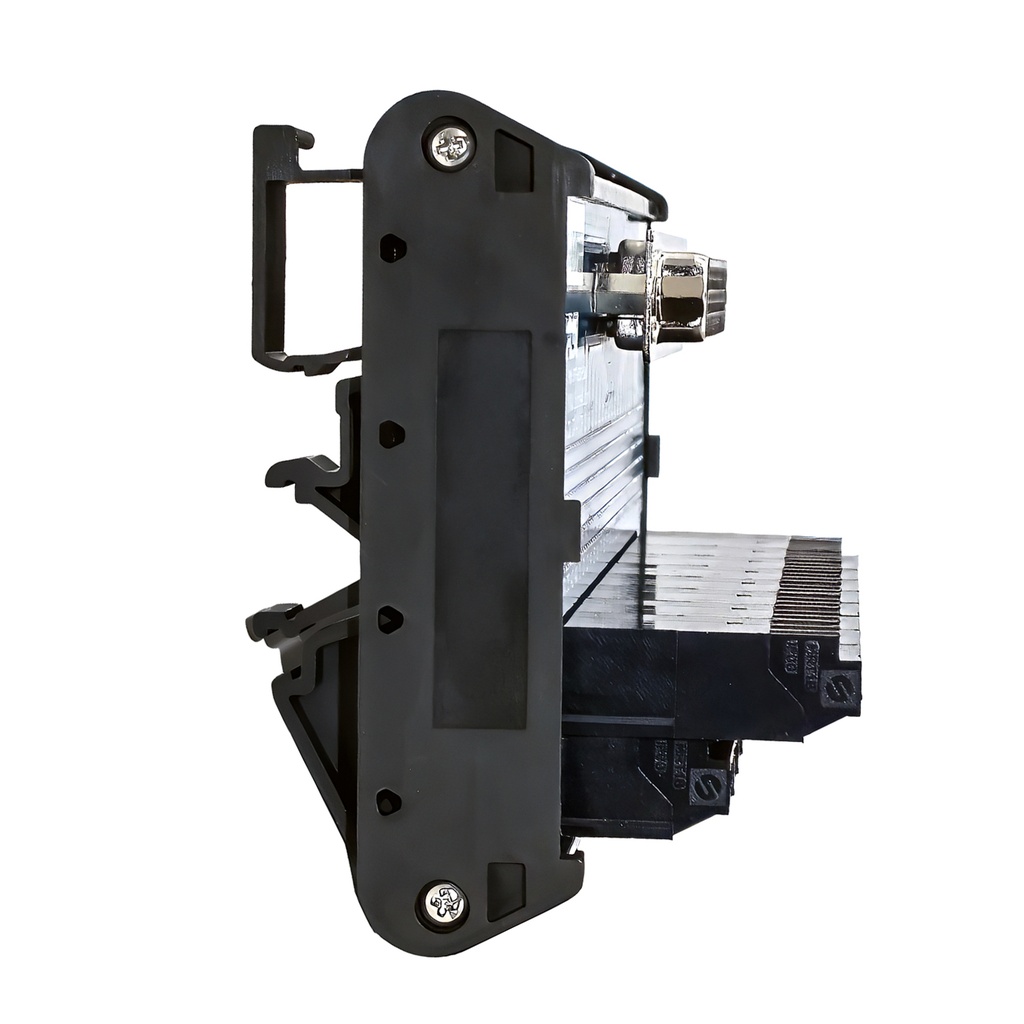

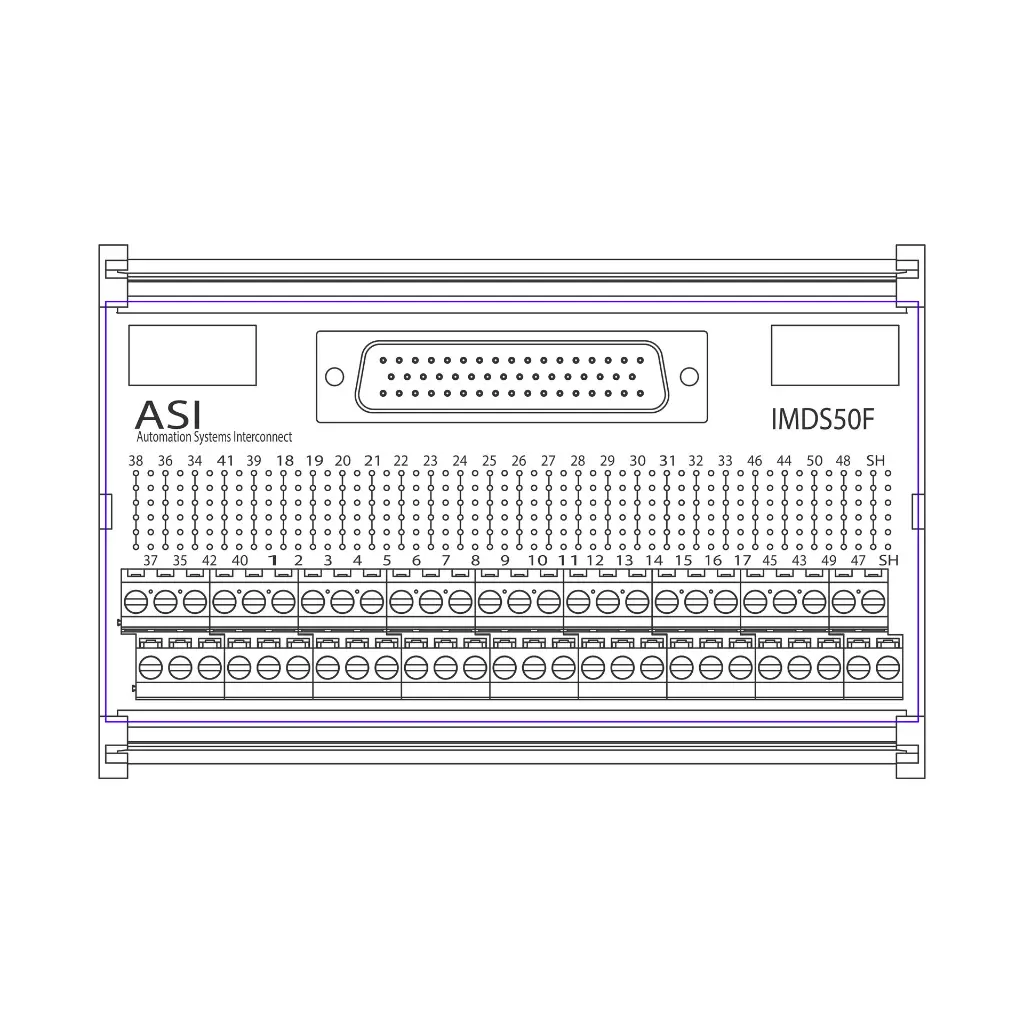

The IMDS50F db50 female breakout board is a compact DIN rail mount 50 position female D-sub connector to screw clamp terminal block interface. The female 50 pos. D-sub connector is equipped with screw locks to ensure a secure cable connection. The screw clamp terminal blocks on the 50 position female d-sub breakout module make for easy wire connections and they are labeled for visual indication of terminal positions. Components holes are part of the pcb between the connector and the terminal block thereby making it easy to add components such as diodes, MOV’s or similar as required.

Additional information

Weight 0.75 lbs
Dimensions 3.62 × 5.59 × 2.56 in
Connector style

Current rating

Module type

Voltage V


Wire size wg

Connector type

Number of pins

Alternate Part Number



There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
