Black Rotary Disconnect Switch Handle, 2 Position, Lockable, Type K
SKU: 091-0001

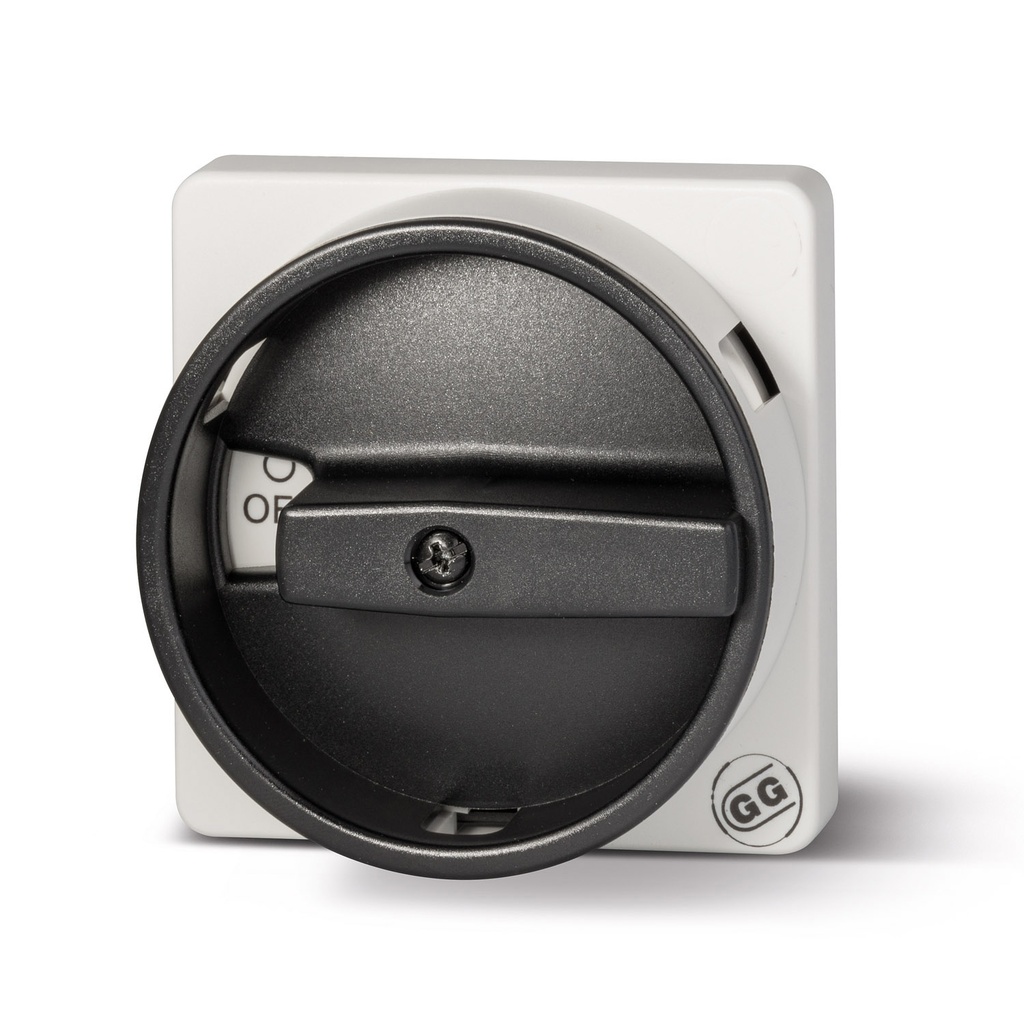

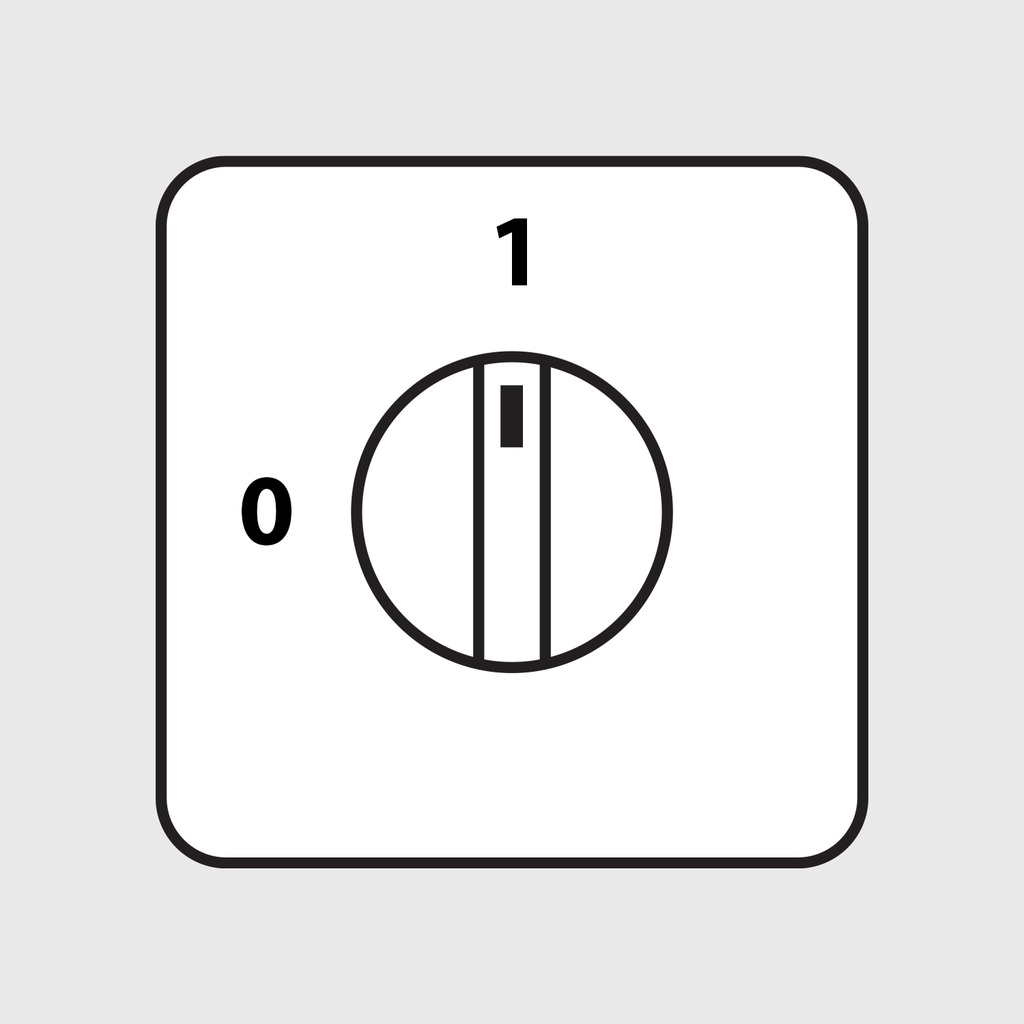

ASI 091-0001 is a black rotary locking handle used with the SQ025 to SQ032 series disconnect switches. It has a gray plate, and black knob. The OFF setting is in the 9 o'clock position and the ON setting is in the 12 o'clock position. For optimum security, it accepts up to 1 padlock. The front plate measures 67 x 67 mm. Door locking Type K. It has a screw mounting. EN 60529, IP65, UL50 Type 1, 4, 4x, 12, NEMA 4X.

Call for Lead Time

10.08 10.08 USD 10.08


Not Available For Sale

  • Color
  • Screw Locks

This combination does not exist.

Addtional Resources:


Color Black
Screw Locks Yes
