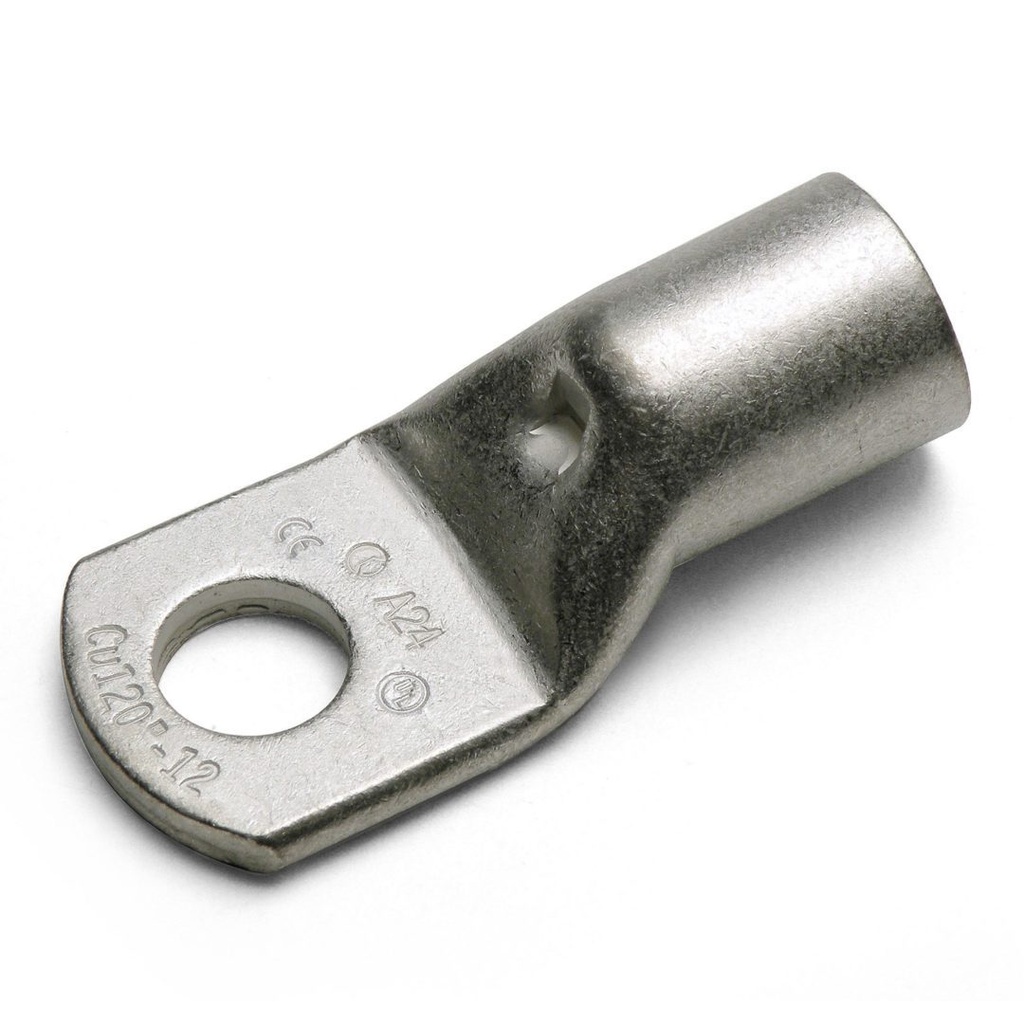

#8 Copper Compression Lug, Non-insulated, 6 AWG

https://www.sourceasi.com/web/image/product.template/36621/image_1920?unique=6f7816f
SKU: 2180030

ASI 2170030, Type A3-M4, is a #8 Copper Compression Lug, non-insulated that is UL Listed for 6 AWG, can be used with a #8 stud and can be crimped with one of the many tools available from ASI. The A-M Compression Lugs are constructed with an electrolytic copper which has been heat treated or annealed to strengthen the terminal especially between the crimp and tongue. The wire barrel of this 6-gauge crimp lug has a length that is optimized for ideal crimping and the inspection hole at the end allows you to check for proper insertion of the wire. This 6 AWG Compression Lug for use with a #8 stud is tin-plated to avoid oxidation making it ideal for most environments. Cordless hydraulic crimping tools B15MA, B35-50MA, B500A and B1500A are available from ASI to ensure that a proper crimp is accomplished during wire termination.

Call for Availability

68.56 68.56 USD 68.56

68.56

Not Available For Sale

/Pack of 100 (0.69 / Each)

    This combination does not exist.

    Addtional Resources:
    Competitive Part Numbers: A3-M4
