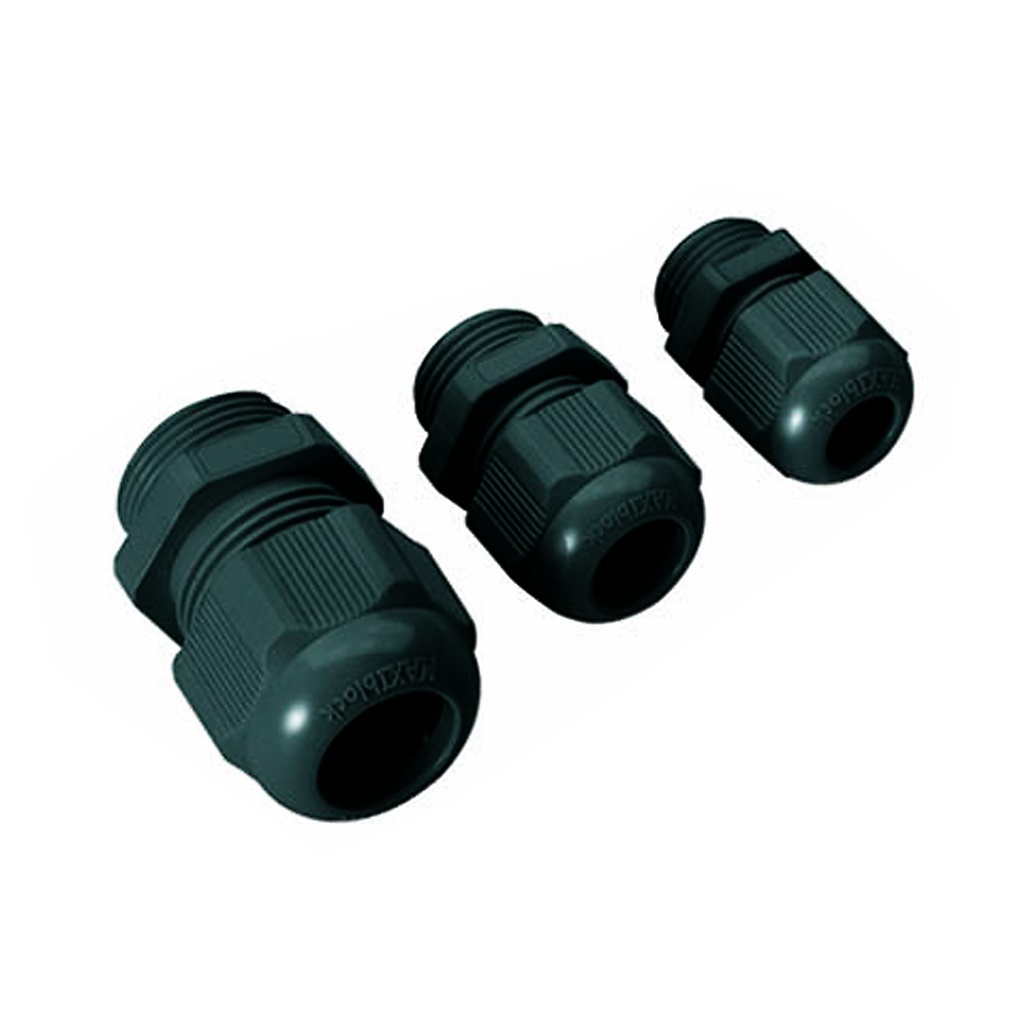

M16 Cable Gland, Waterproof, Black, Plastic Nylon, IP68 NEMA 6, ASI

https://www.sourceasi.com/web/image/product.template/36905/image_1920?unique=201709d
SKU: 3001221

The ASI 3001221 is a M16 waterproof cable gland with M16 x 1.5 mm pitch threads, 19 mm tightening nut and 5 to 10 mm wire clamping range. The locknut is sold separately and is needed if cable gland is not used in a threaded hole. This M16 waterproof cable gland is made from black plastic nylon Polyamide PA 6.6 with a self-extinguishing flammability rating. The sealing ring of the strain relief cable gland is made of a flexible Neoprene to provide for a solid-liquid tight grip on the wire. This excellent sealing design used in these waterproof cable glands meet IP68, NEMA 6 and 6P standards for dust protection and water submersion. The M16 plastic cord grip cable glands can be used in applications with temperatures ranging between -20 degrees to 90 degrees Celsius.

Call for Availability

45.20 45.2 USD 45.20

45.20

Not Available For Sale

/Pack of 100 (0.45 / Each)

    This combination does not exist.

    Addtional Resources:
    Competitive Part Numbers: 1900.M16N
