M16 Cable Gland, 5-10mm Clamping Range IP68, Includes M16 Locknut

https://www.sourceasi.com/web/image/product.template/36926/image_1920?unique=201709d
SKU: 3001313

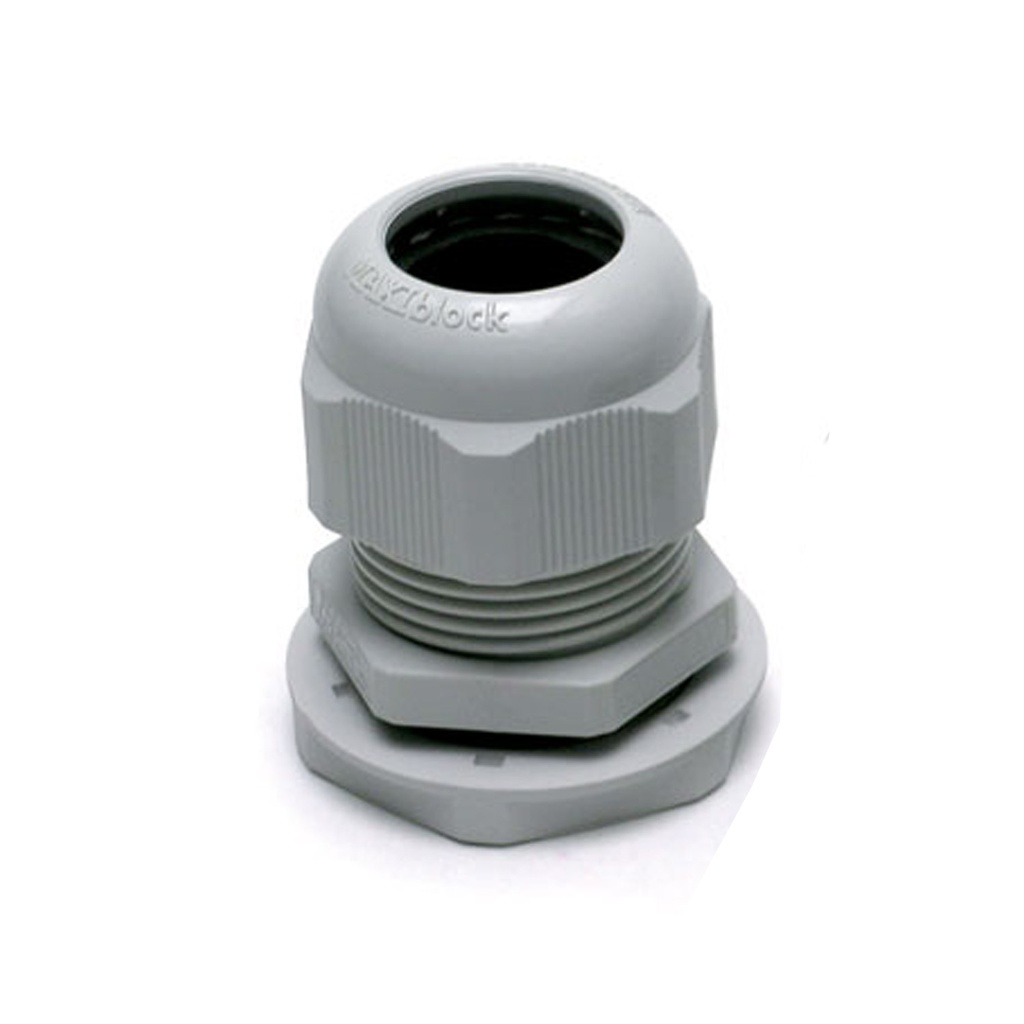

The ASI 3001313 is a M16 waterproof cable gland with locknut and collar and with M16 x 1.5 mm pitch threads, 19 mm tightening nut and 5 to 10 mm wire clamping range. This M16 waterproof cable gland with locknut is made from light gray plastic nylon Polyamide PA 6.6 with a self-extinguishing flammability rating. The sealing ring of the M16 strain relief cable gland is made of a flexible Neoprene to provide for a solid-liquid tight grip on the wire. This excellent sealing design used in these waterproof cable glands meet IP68, NEMA 6 and 6P standards for dust protection and water submersion. The M16 plastic cord grip cable gland with lock nut can be used in applications with temperatures ranging between -20 degrees to 90 degrees Celsius.

In Stock (5)

8.71 8.71 USD 8.71

8.71

Not Available For Sale

/Pack of 10 (0.87 / Each)
  • Thread Size
  • Material

This combination does not exist.

Addtional Resources:


Specifications

Thread Size M16
Material Plastic
