M20 Cable Gland, 7-13mm Clamping Range, IP68, Includes M20 Locknut

https://www.sourceasi.com/web/image/product.template/36927/image_1920?unique=201709d
SKU: 3001316

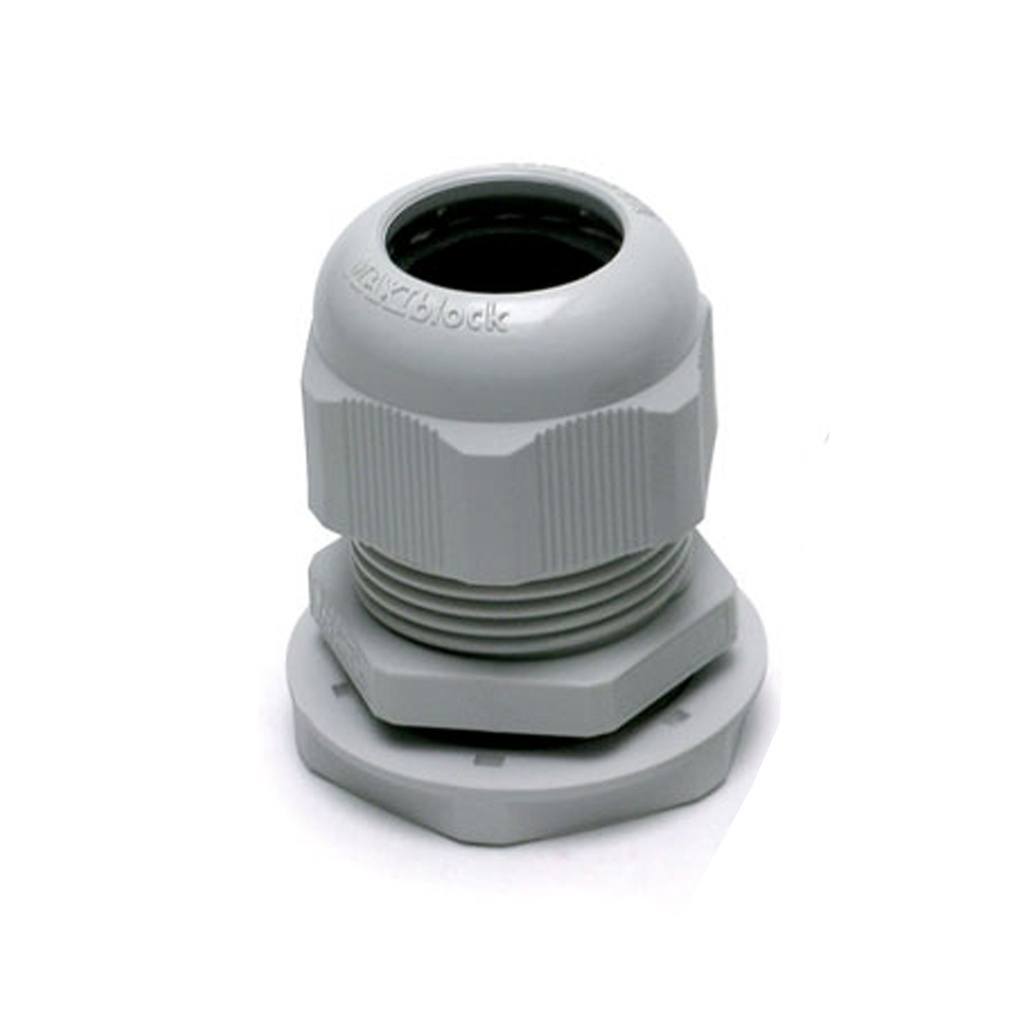

The ASI 3001316 is a M20 waterproof cable gland with locknut and collar and with M20 x 1.5 mm pitch threads, 25 mm tightening nut and 7 to 13 mm wire clamping range. This M20 waterproof cable gland with locknut is made from light gray plastic nylon Polyamide PA 6.6 with a self-extinguishing flammability rating. The sealing ring of the M20 strain relief cable gland is made of a flexible Neoprene to provide for a solid-liquid tight grip on the wire. This excellent sealing design used in these waterproof cable glands meet IP68, NEMA 6 and 6P standards for dust protection and water submersion. The M20 plastic cord grip cable gland with lock nut can be used in applications with temperatures ranging between -20 degrees to 90 degrees Celsius.

In Stock (46)

11.54 11.540000000000001 USD 11.54

11.54

Not Available For Sale

/Pack of 10 (1.15 / Each)
  • Thread Size
  • Clamping Range
  • Material

This combination does not exist.

Addtional Resources:


Specifications

Thread Size M20
Clamping Range 7-12 mm
Material Plastic
