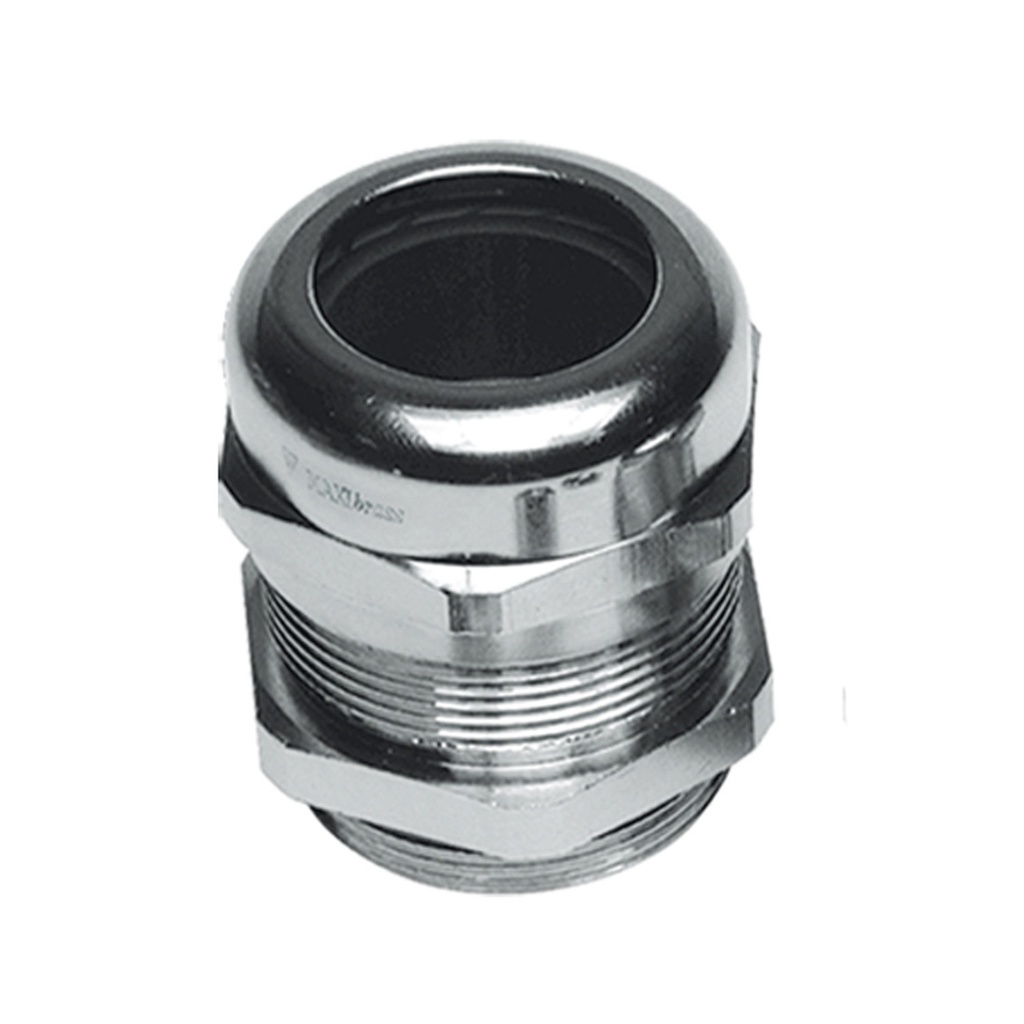

M50 Nickel Plated Brass Cable Gland, Waterproof, IP68, UL Cord Grip

https://www.sourceasi.com/web/image/product.template/37382/image_1920?unique=201709d
SKU: 3012245

Type 2900.M50N, Nickel Plated Brass Cable Glands, M50x1.5 Threads, Tightening nut: 54 mm, 26-35 mm Clamping Range. ASI 3012245 Nickel-plated brass cable glands with M50x1.5 mm pitch threads, 54 mm tightening nut and 26-35 mm clamping range. The strain relief cable grip insert is made of a flexible Polyamide PA 6.6 to insure a liquid tight seal on the wire or cable. The factory fitted O-ring provides an external seal of Nitrile to insure a liquid tight seal to the enclosure or panel after installation. The combination of the seal to the cable or wire and the seal to the enclosure insures that the ASI nickel plated cable gland cord grips meet IP68, NEMA 6 and 6P standards for dust protection and water submersion. The ASI metal cable glands are designed to work in applications with a continuous temperature range between -20 degrees to 100 degrees Celsius

Call for Availability

255.44 255.44 USD 255.44

255.44

Not Available For Sale

/Pack of 8 (31.93 / Each)
