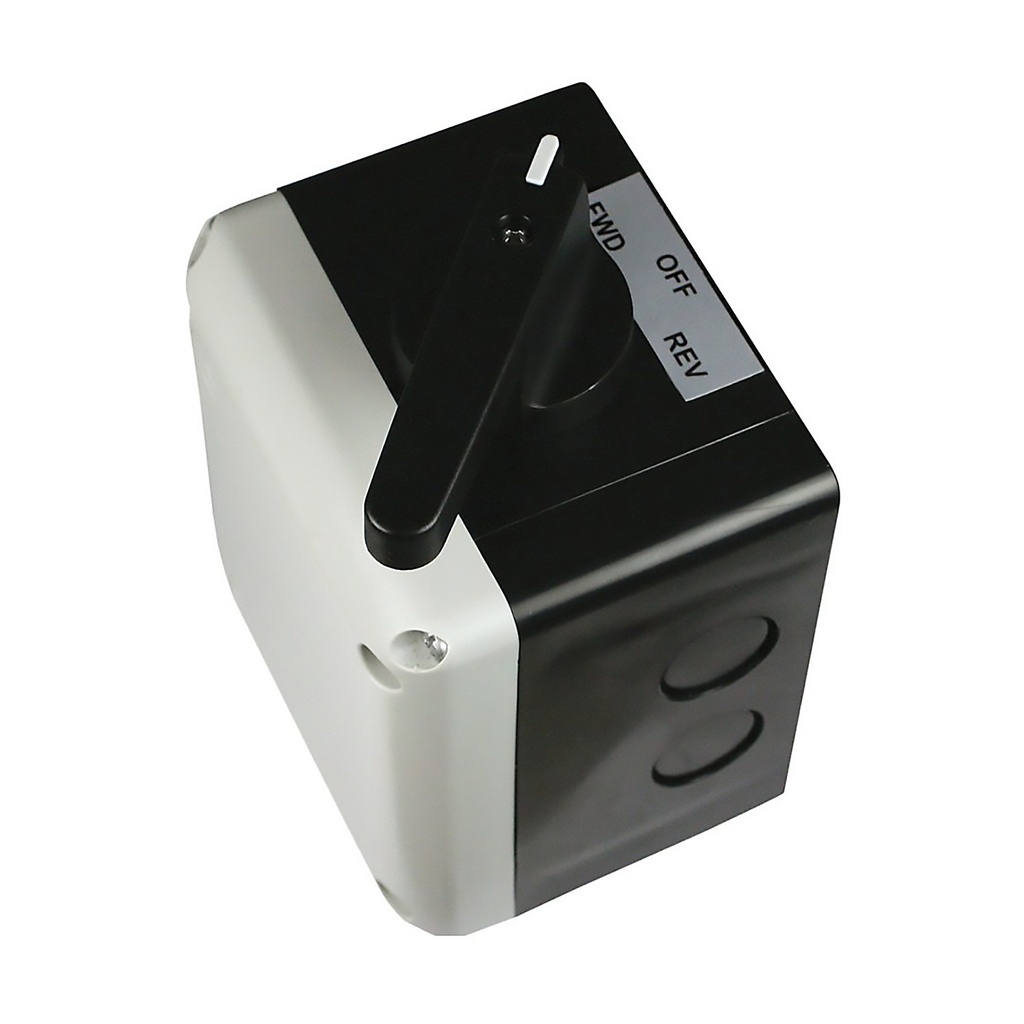

Motor Reversing Drum Switch, Momentary, 10 HP, 240Vac or 15 HP 480Vac Motors, Black Handle, Legend Plate, UL508 Listed (copy)

The A-101892G is a drum switch used as a momentary manual reversing switch which is enclosed in a high impact thermoplastic enclosure, Top Mounted Black Handle, UP/DOWN and FWD/REV labels. It is used for 3 phase motors up to 20 horsepower. The ASI A-101892G reversing drum switch has 3 poles and can be used with 208 Vac and 480 Vac 3 phase motors. This 3-phase motor reversing switch features self-cleaning contacts, silver alloy plating, and a UL94V0 thermoplastic housing. With a UL508 listing of 600 Vac, 32A this forward and reverse motor switch is ideal for three-phase motors ranging from 10 HP to 20 HP based on voltage. The ASI A-101892G motor reversing switch is a compact design to save space, the wire connections are shock hazard proof. Red Handle available upon request.
