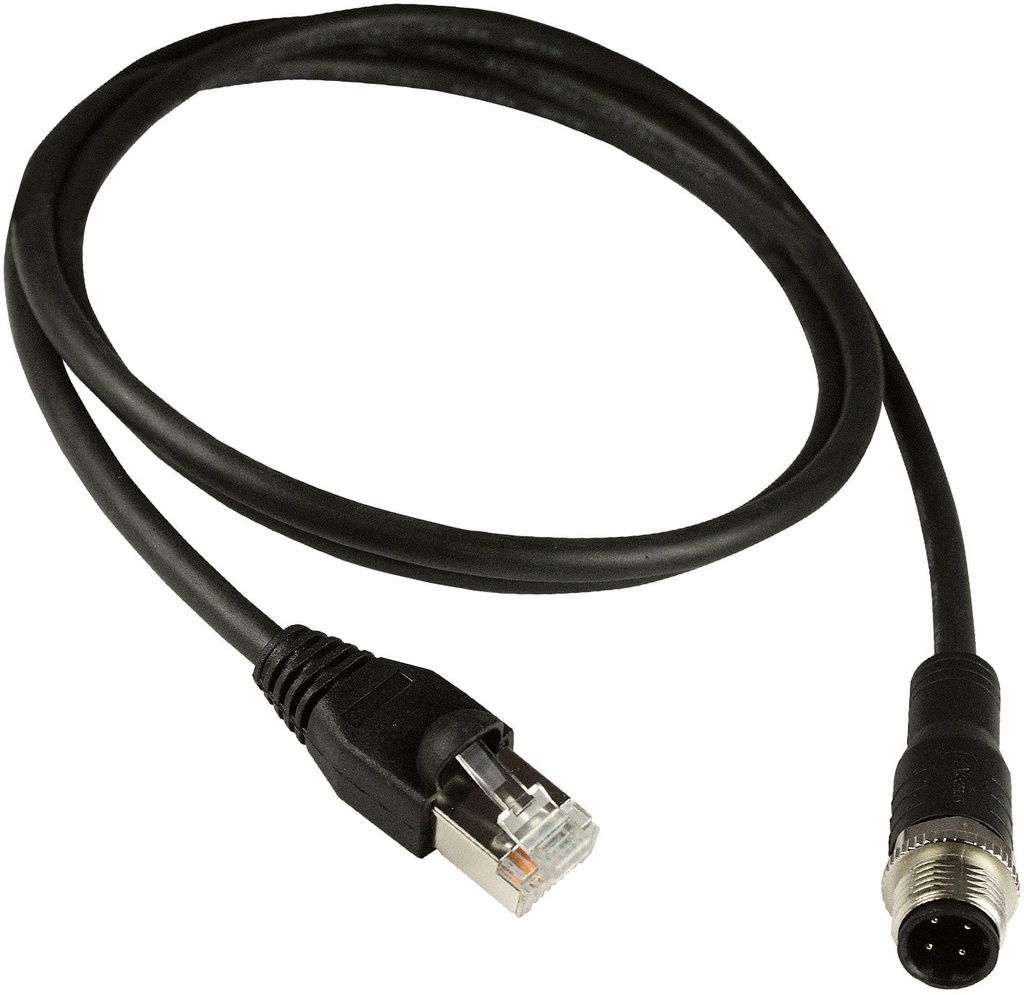

M12 to RJ45 Industrial Ethernet Cable | D-Coded 4-Pin | Cat5e Shielded | 5 Meter | ASI-M12-RJ45-11105
The ASI-M12-RJ45-11105 is a 5-meter (16.4 ft) industrial Ethernet cable
designed to connect equipment with an M12 Ethernet port to standard RJ45
network equipment. It features a straight 4-pin D-coded M12 male connector,
straight RJ45 male connector, shielded Cat5e cable, 24 AWG conductors, and a
black PUR jacket.
Designed for industrial automation and machinery, the cable provides a secure
M12 connection at the machine while allowing connection to standard RJ45
Ethernet equipment. The shielded construction helps protect network
communications from electrical interference, while the PUR jacket and molded
strain reliefs provide durability for industrial installations.
WHAT PROBLEM DOES THIS SOLVE?
Industrial machines, controllers, and automation equipment often use rugged
M12 Ethernet connections, while Ethernet switches, control panels, computers,
and other network equipment commonly use standard RJ45 connections.
The ASI-M12-RJ45-11105 provides the physical connection between these two
interfaces, eliminating the need for adapters or field-terminated Ethernet
connections while providing a cable assembly designed for industrial
environments.
KEY FEATURES & BENEFITS
• Connects D-Coded M12 Ethernet Equipment to Standard RJ45 Networks
• 5 Meter (16.4 ft) Length for Machine and Control Panel Connections
• 4-Pin D-Coded M12 Male to RJ45 Male Configuration
• Shielded Cat5e Construction Helps Reduce EMI/RFI Interference
• Black PUR Jacket Resists Abrasion in Industrial Environments
• 24 AWG Conductors Provide Reliable Industrial Ethernet Communication
• Molded TPU Strain Relief Protects Cable-to-Connector Transitions
• Preassembled Cable Eliminates Field Termination of Ethernet Connectors
APPLICATIONS
• Industrial Ethernet Networks
• Factory Automation
• PLC and Machine Control Systems
• Robotics and Automated Equipment
• Assembly Lines and Manufacturing Equipment
• Industrial Ethernet Switch Connections
• Control Panel to Machine Network Connections
• Material Handling and Packaging Equipment
WHY CHOOSE THIS PRODUCT?
The ASI-M12-RJ45-11105 provides a ready-to-install connection between rugged
M12 Ethernet equipment and standard RJ45 network infrastructure. Its D-coded
M12 connector, shielded Cat5e construction, PUR jacket, and molded connectors
make it better suited to industrial machinery than a standard office Ethernet
patch cable.
PRODUCT SELECTION
The ASI M12-to-RJ45 cable family is available in multiple lengths.
• ASI-M12-RJ45-11101 — 1 Meter (3.3 ft)
• ASI-M12-RJ45-11103 — 3 Meter (9.8 ft)
• ASI-M12-RJ45-11105 — 5 Meter (16.4 ft)
The 1-meter and 3-meter versions use the same D-coded M12-to-RJ45 industrial
Ethernet concept.
