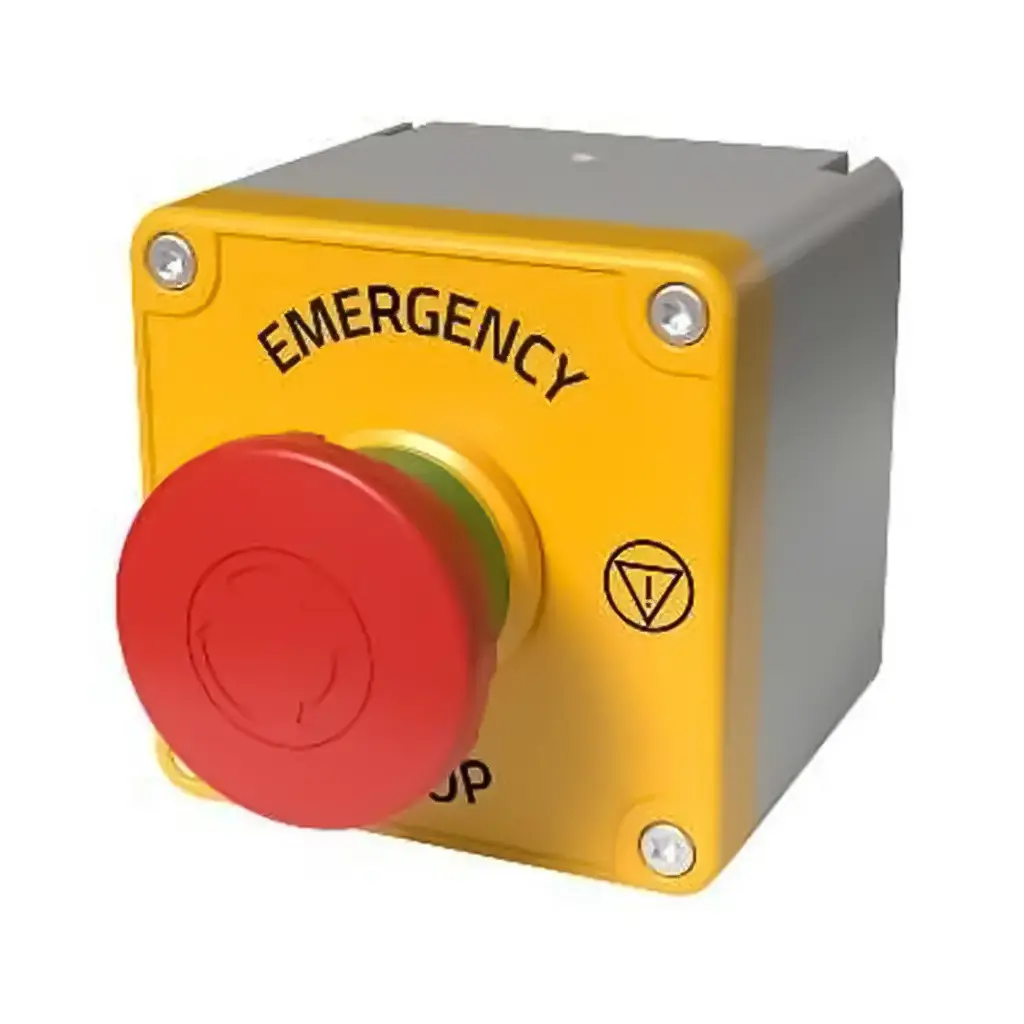

Emergency Stop Push Button Station with Red 40mm Turn-to-Release Estop

The ASI080TU0707-6GF01 Polyamide E-Stop Enclosure is a compact, robust emergency stop solution designed for industrial safety applications. Featuring a red Ø 40 mm mushroom push-button with twist-to-release action and 1 NC contact, it provides reliable and immediate emergency stop functionality. The enclosure’s durable polyamide housing with a yellow lid is built to withstand harsh indoor and outdoor environments, offering IP66/IP69 protection, IK08 impact resistance, and compliance with CE, UL, and CSA standards. Designed for versatility, it supports safe operation across a wide temperature range from -35°C to +80°C, making it ideal for industrial control panels and machinery safety circuits.

Key Features:
🔹Red Mushroom E-Stop with Twist-Pull Release – Ensures fast, secure emergency stop activation for critical safety situations.
🔹1 NC Contact Configuration – Provides reliable normally closed contact for standard emergency stop circuits.
🔹Rugged Polyamide Housing – Durable, UV- and weather-resistant enclosure with yellow lid, suitable for harsh industrial environments.
🔹High Protection Ratings – IP66/IP69 and NEMA 1/4/4X protection against dust and water, with IK08 impact-resistant housing and IK03 push-button.
🔹Wide Operating Range – Performs reliably from -35°C to +80°C with Class II electric shock protection and 300V insulation rating.
🔹Easy & Secure Installation – Compact 70x70x63 mm design, TPV gasket, and stainless steel Torx fasteners for straightforward panel mounting.
