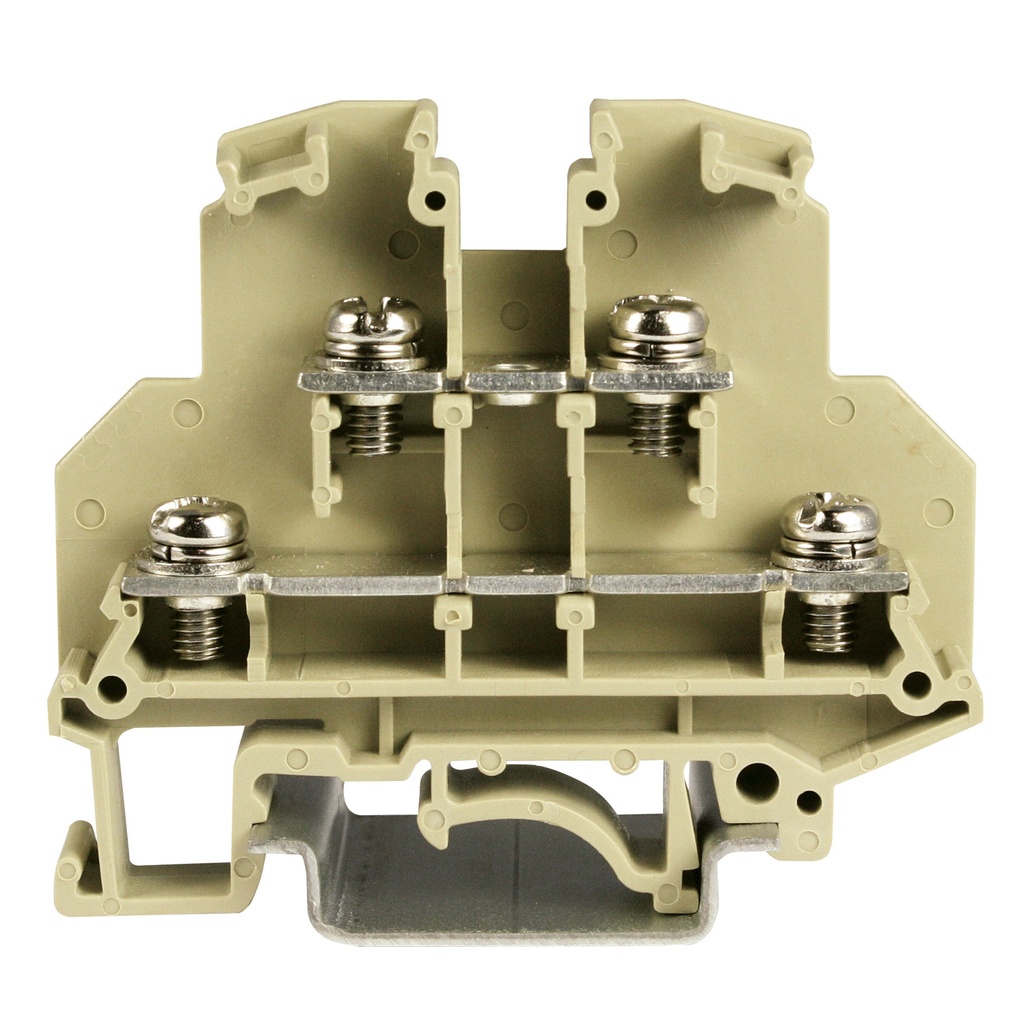

2 Level Ring Terminal Block, 2 Level DIN Rail Ring Lug Terminal Block With A Width Of 9.2mm, Rated 35 Amp, 600 Volt
SKU: ASI271014
The ASI271014, type ASIST5-DL is a 2 level ring terminal block that is 9.2 mm wide and is a two level feed thru Ring Lug terminal block. This 2 level ring terminal block features both flat and lock washers that are used to insure maximum surface connection and locking screws to prevent loosening. The 2 level DIN rail ring terminal blocks have been designed to mount on standard din rail and accept wire equipped with Ring or Spade Terminals. The screws on this 2 level ring terminal block are M4 size and are nickel plated to insure better corrosion resistance. This is UL recognized at 35 Amp, 600 Volt.
Call for Availability
Competitive Part Numbers: ASIST5-DL, UBJ2-2.5/2-2
