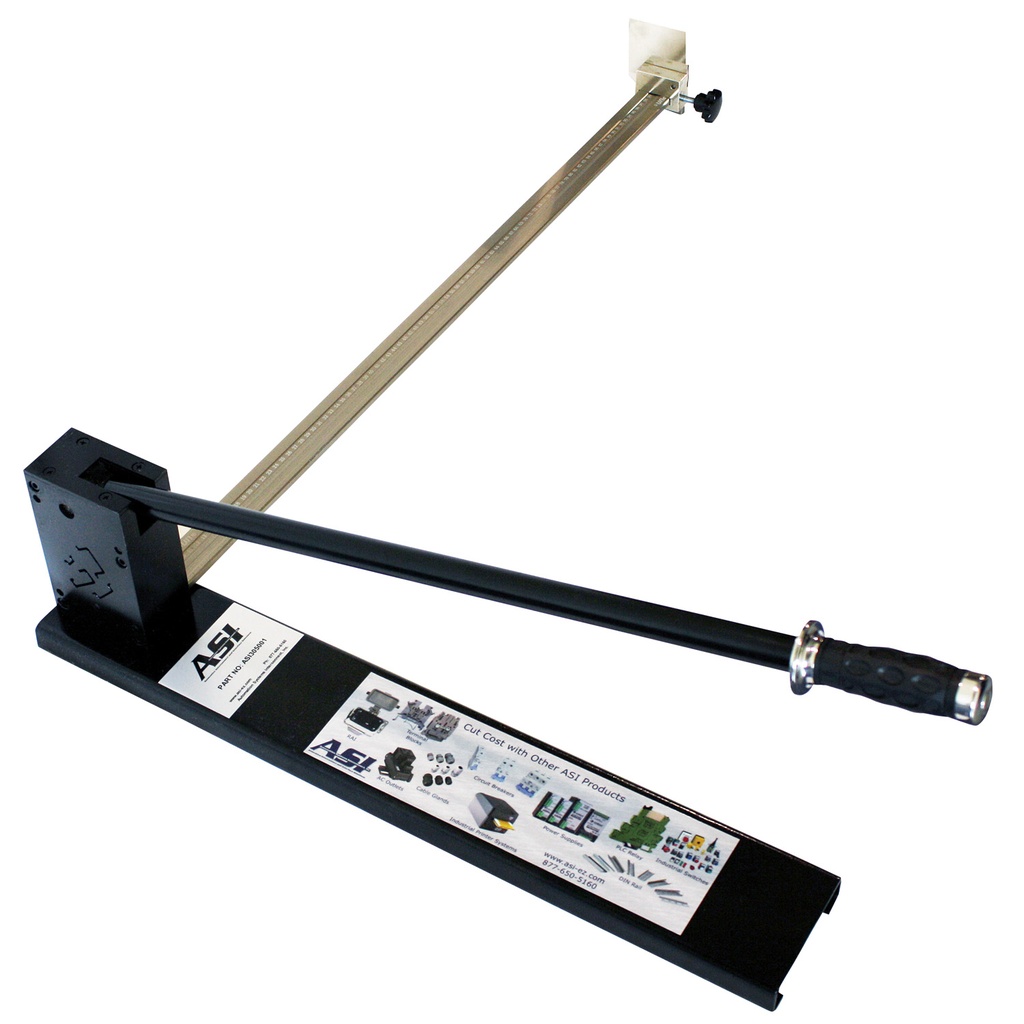

Heavy-Duty Manual DIN Rail Cutter – 4-in-1 Die for 35mm, 32mm, and 15mm Steel/Aluminum DIN Rails with 1-Meter Measurement Guide & Stop | ASI305001

The ASI305001 DIN Rail Cutter is a heavy-duty, benchtop manual cutting tool engineered to produce clean, square, and burr-free cuts on four standard DIN rail profiles without requiring die changes. Designed with a high-leverage operating handle and hardened steel cutting dies, it eliminates the need for secondary deburring, filing, or hazardous grinding inside panel shops. The integrated 1-meter measuring ruler and adjustable end-stop ensure precise, repeatable cuts for high-volume electrical panel assembly, OEM manufacturing, and maintenance operations.

KEY FEATURES
4-in-1 Universal Cutting Die: Cuts 35 x 7.5 mm standard symmetric, 35 x 15 mm deep symmetric, 32 mm asymmetric (G-rail), and 15 mm miniature DIN rails using a single integrated die block.
Clean, Burr-Free Cuts: Produces factory-quality, flat edges with no metal distortion or sharp burrs, eliminating secondary filing and post-cut grinding.
High-Leverage Ergonomic Handle: Powerful mechanical lever action minimizes operator physical fatigue and provides smooth cutting force across thick steel and aluminum profiles.
Integrated 1-Meter Measurement Guide & Stop: Includes an attached metric ruler and sliding work-stop for fast, accurate, and repeatable length cuts.
Hardened Steel Construction: Built with wear-resistant hardened tool steel dies and a solid 28 lb base for long-lasting, stable benchtop operation without mandatory bolting.

APPLICATIONS
- UL 508A Control Panel Building: Sizing mounting rails for terminal blocks, power
supplies, contactors, and relays inside electrical enclosures.
- OEM Machine Manufacturing: High-volume, repeatable cutting of standard DIN rails
for machine-mount subpanels and junction boxes.
- Industrial Plant Maintenance & Retrofits: Safe, spark-free on-site cutting in facilities
where rotary saws or angle grinders present fire and metal shaving hazards.
- Electrical Contractor Pre-Fabrication: Shop-floor preparation of custom rail lengths for
commercial and industrial installation jobs.

COMMONLY USED TO POWER / CONTROL / MONITOR
Terminal block assemblies and distribution blocks
DIN rail power supplies and 24VDC control circuits
Miniature circuit breakers (MCBs) and supplementary protectors
Motor starters, contactors, and overload relays
PLCs, remote I/O racks, signal conditioners, and interface relays

WHY CHOOSE THIS PRODUCT?
Traditional methods of cutting DIN rail, such as portable bandsaws, chop saws, or hacksaws, create jagged edges, hazardous sharp burrs, and metal chips that can contaminate sensitive electrical components. The ASI305001 solves this issue by shearing DIN rail cleanly and evenly in a single manual stroke. Because it produces a smooth, finished cut, technicians can immediately mount components onto the rail without spending valuable labor time on grinding, filing, or cleanup.

Unlike single-profile cutters that require costly changeover dies or separate cutting heads, the ASI305001 features a dedicated 4-bore die block. Operators can instantly switch between standard 35 mm top-hat rail, deep 15 mm rail, miniature 15 mm rail, and 32 mm G-type rail with zero setup downtime.

Constructed from hardened tool steel, this unit weighs 28 lbs, giving it the stability needed for everyday benchtop use in busy panel shops. Combined with the built-in 1-meter ruler and adjustable stop, it delivers consistent length accuracy across production runs while reducing physical strain on assembly workers.

AVAILABILITY SECTION
Stock Status: In Stock & Ready to Ship
Shipping Location: Mechanicsburg, PA, USA
Order Fulfillment: Same-day or next-business-day shipping available on standard orders. Bulk and distributor quantity pricing available.
