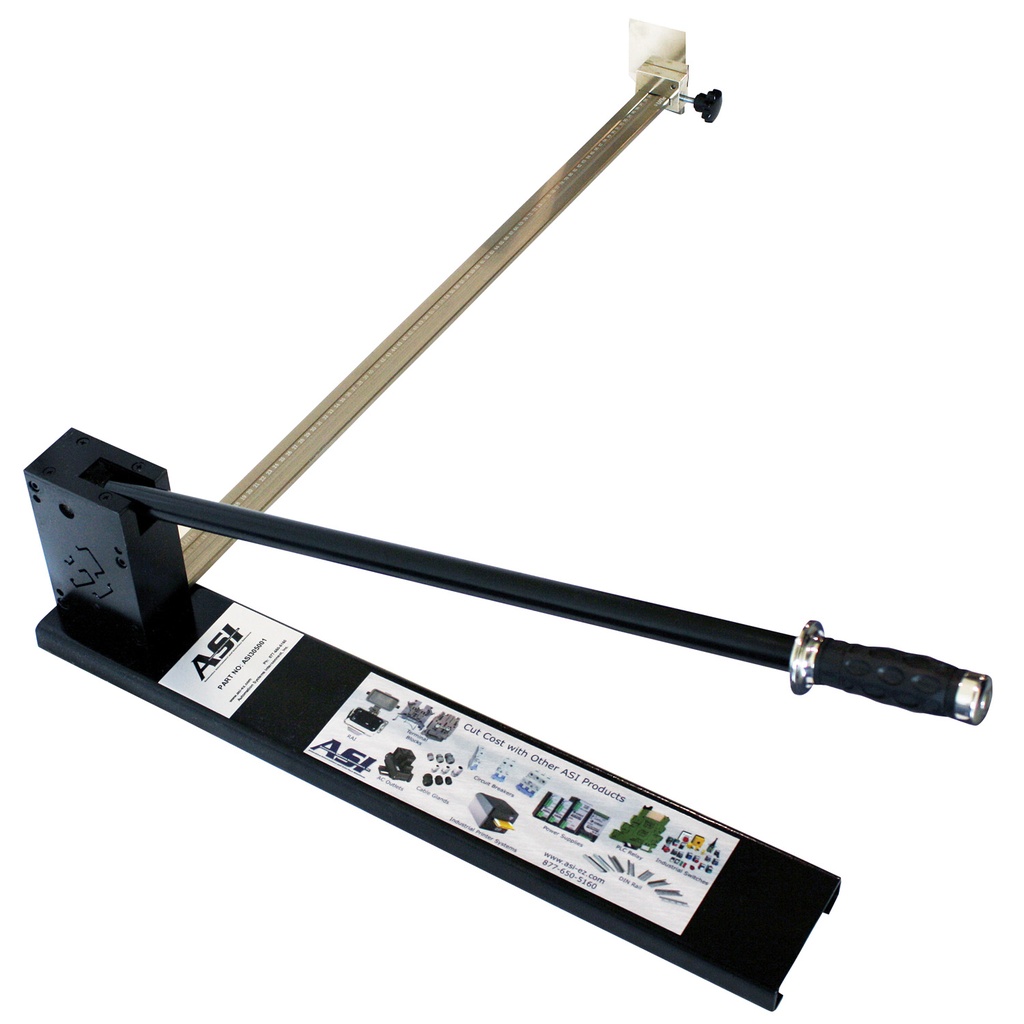

Heavy-Duty Manual DIN Rail Cutter | 4 Rail Profiles | 1-Meter Measuring Guide | ASI305001
The ASI305001 is a heavy-duty manual DIN rail cutter designed to produce clean,
square, burr-free cuts without using a saw, grinder, or other powered cutting
tool. A single 4-profile cutting die handles common 35mm, 32mm, and 15mm DIN
rail profiles without changing dies.
The benchtop cutter includes a 1-meter measuring guide, adjustable guide, and
end stop for accurate, repeatable cuts. Its high-leverage handle reduces the
force required to cut DIN rail, making it well suited for panel shops, OEM
production, electrical assembly, and industrial maintenance operations.
WHAT PROBLEM DOES THIS SOLVE?
Cutting DIN rail with a hacksaw, bandsaw, or abrasive tool can leave rough
edges, burrs, and metal debris that require additional filing, grinding, and
cleanup. It can also make repetitive cuts slower and less consistent.
The ASI305001 combines measuring, positioning, and cutting into one manual
tool. The adjustable stop allows repeated lengths to be produced without
remeasuring every piece, while the shearing action produces a finished cut
that normally requires no secondary deburring.
KEY FEATURES & BENEFITS
• Cuts Four Common DIN Rail Profiles with One Permanent Die
• Produces Clean, Burr-Free Cuts without Secondary Filing or Grinding
• 1-Meter Measuring Guide Simplifies Accurate Rail Length Setup
• Adjustable End Stop Speeds Repetitive Production Cutting
• High-Leverage Handle Reduces the Force Required for Cutting
• Manual Operation Eliminates Sparks from Abrasive Cutting Tools
• Hardened Steel Construction for Repeated Panel-Shop Use
• Benchtop Design Does Not Require Permanent Mounting
DIN RAIL PROFILES
• 35 × 7.5mm Standard Symmetrical DIN Rail
• 35 × 15mm Deep Symmetrical DIN Rail
• 32mm Asymmetrical DIN Rail
• 15mm Miniature DIN Rail
APPLICATIONS
• UL 508A Control Panel Shops
• OEM Machine and Equipment Manufacturing
• Electrical Panel and Enclosure Assembly
• Industrial Maintenance and Retrofit Work
• Electrical Contractor Prefabrication
• Terminal Block and Control Component Assembly
• Repetitive DIN Rail Production Cutting
WHY CHOOSE THE ASI305001?
The main advantage of the ASI305001 is workflow efficiency. The operator
can measure, position, and cut multiple DIN rail profiles at one workstation
without changing dies or moving between a saw, measuring station, and
deburring operation.
For shops cutting repeated rail lengths, the 1-meter ruler and adjustable stop
also make the ASI305001 useful as a production tool rather than simply a
manual cutter. Once the required length is set, additional pieces can be cut
to the same length without individually measuring each rail.
WHY ASI?
U.S. inventory, fast shipping, technical support, and 25+ years of industrial
automation experience. That's the ASI way.
ASI305001 DIN Rail Cutter is your affordable bench top tool used to make professional burr-free cuts every time. Features include a 1 meter length ruler, an adjustable guide, an end stop and four permanent die slots which are used to measure, guide and cut the steel DIN rail. It requires a minimal amount of pressure reducing user fatigue. Made of hardened steel, the ASI DIN rail cutter will provide you with years of quality workmanship and peace of mind.
Durable Benchtop Design
- Powerful lever action design reduces the force needed to cut din rail
- Manufactured of hardened steel for years of maintenance free operation
- Bench top design does not need to be mounted permanently for operation
- Designed and priced aggressively to be affordable for any size shop, big or small.
Precision Cutting
- Cuts DIN rail up to 1 meter in length
- Locking guide ensures precise cuts
- Built-in End Stop adjusts for each type of DIN rail
- Burr-free cuts elminate secondary filing or grinding
Cuts 4 Types of Steel DIN Rail
- 35 x 7.5 mm Standard DIN Rail (PR005-1M)
- 35 x 15 mm Top Hat DIN Rail (PR006-1M)
- 32 x 7.5 mm Asymetric DIN Rail (PR004-1M)
- 15 x 5.5 mm Mini DIN Rail (PR010-1M)
