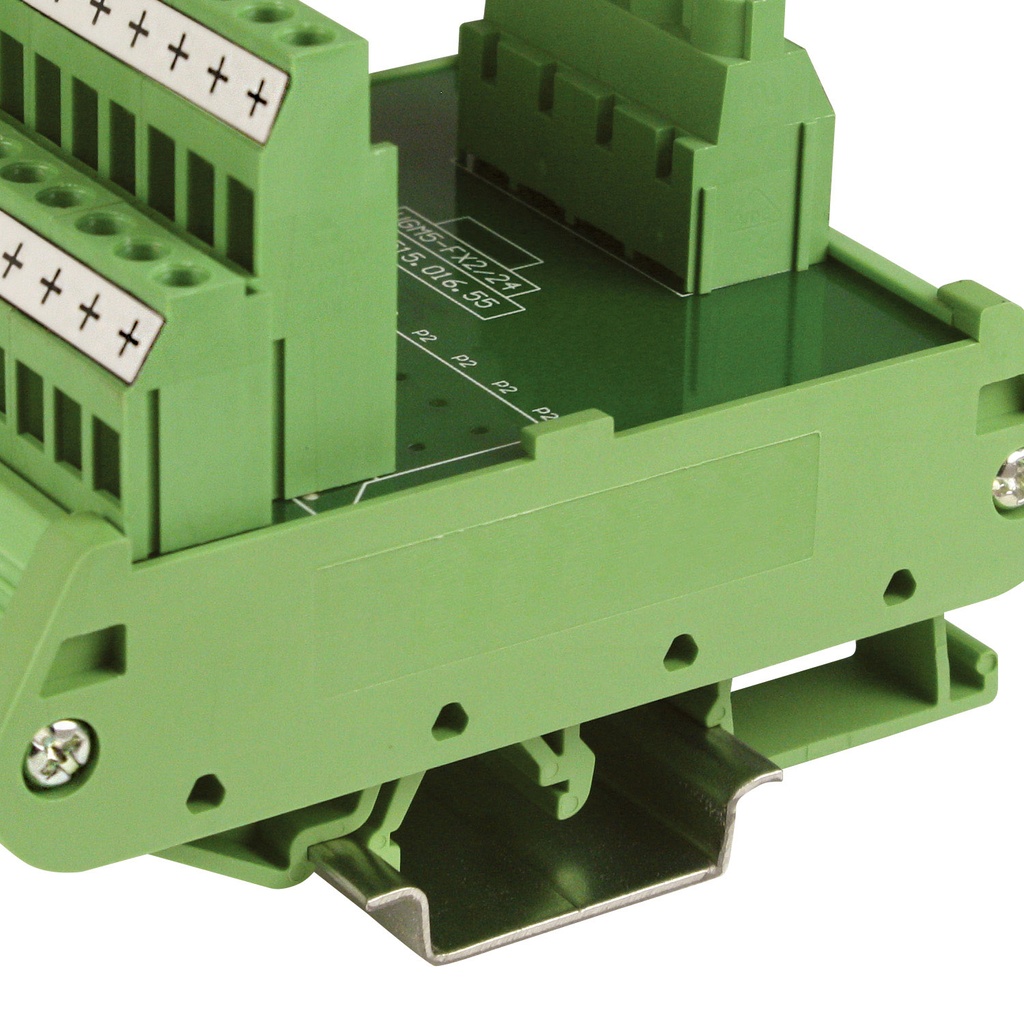

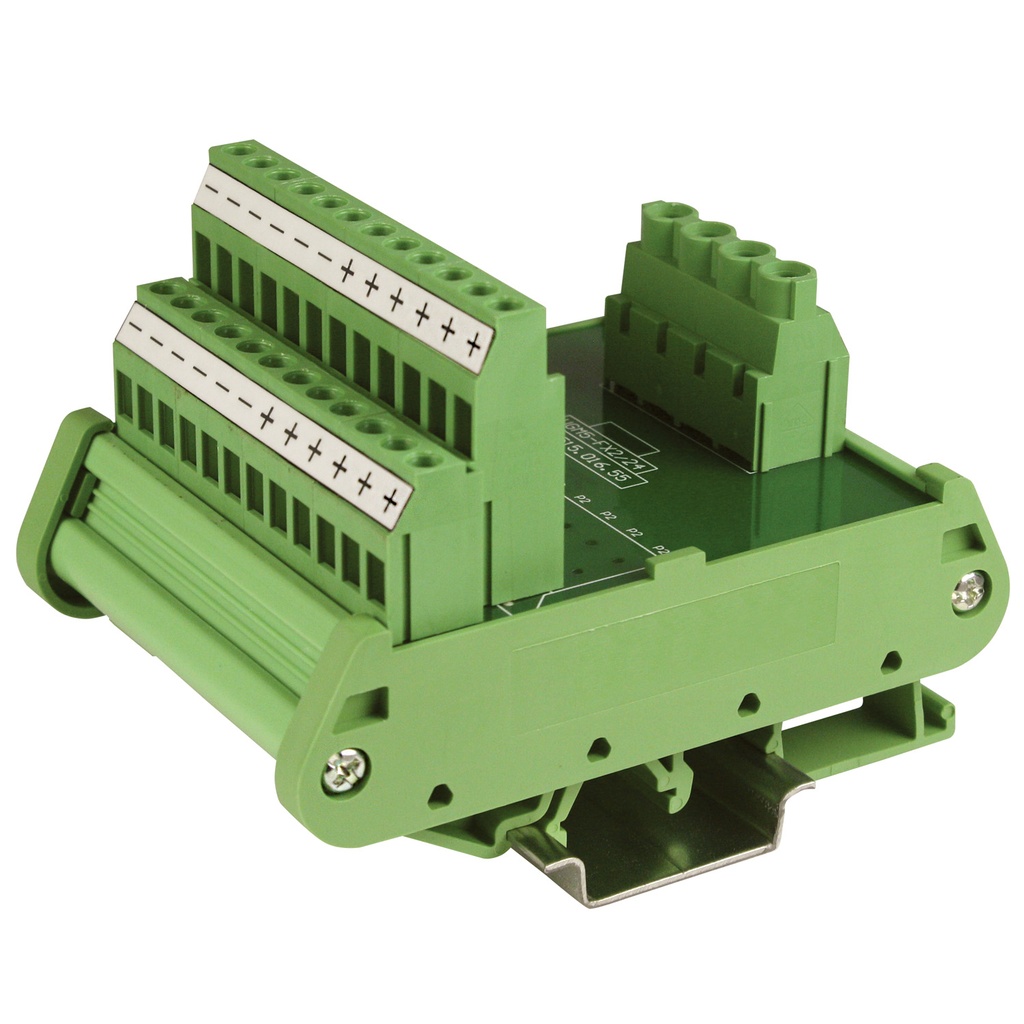

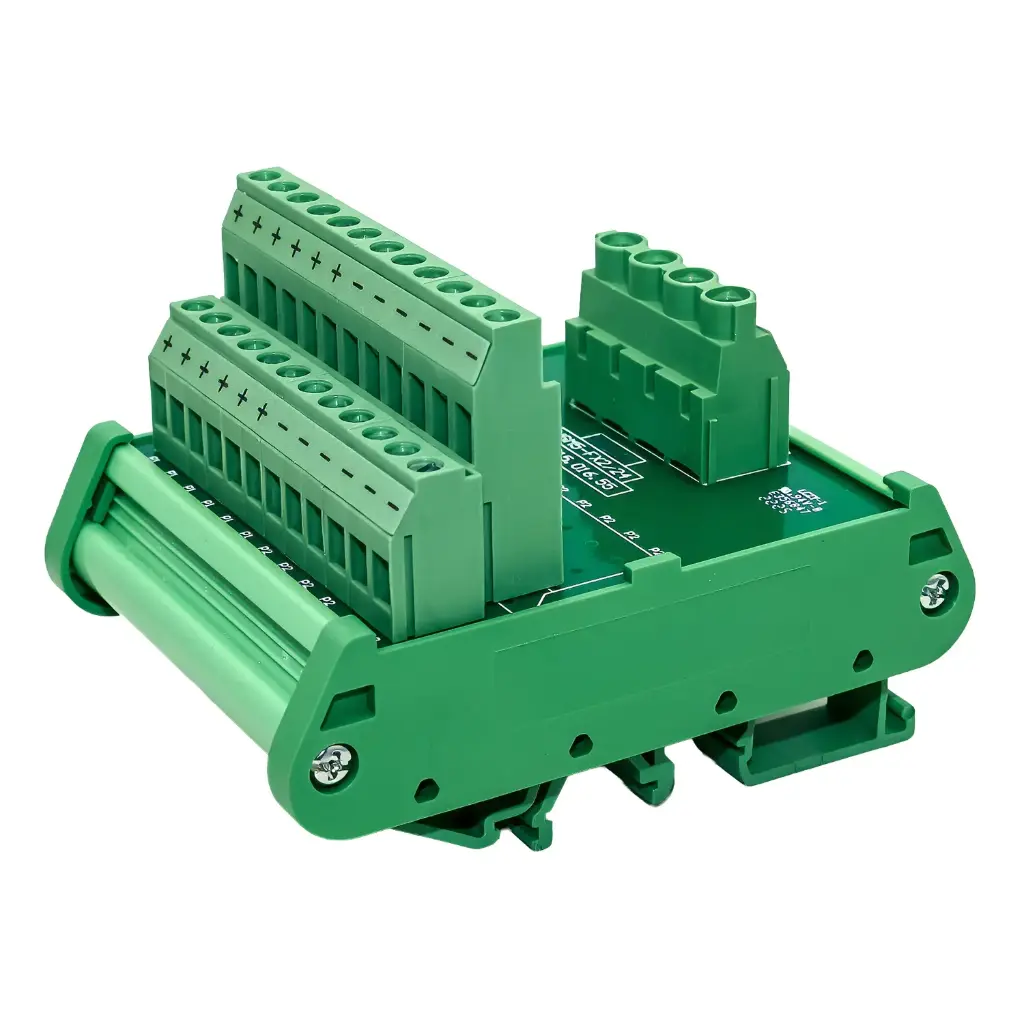

DIN Rail Power Distribution Module | 2 Inputs | 12 Outputs | 250VAC/DC | 30A Max | Alternative to Phoenix Contact 2315269 | ASI471078
The ASI471078 DIN Rail Power Distribution Module provides a clean, centralized method of distributing AC or DC power to multiple devices inside an industrial control panel. With 2 inputs and 12 outputs, the module simplifies power distribution while reducing point-to-point wiring, terminal block jumpering, and crowded connections at the power source.

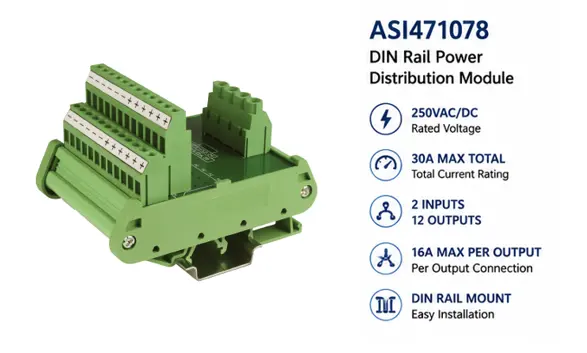

Rated for up to 250VAC/DC, 30A maximum total current, and 16A maximum per output, the ASI471078 is designed for industrial control panels, automation systems, machinery, and OEM equipment requiring organized multi-device power distribution.
The ASI471078 is an alternative to Phoenix Contact 2315269, providing an alternative for existing installations, replacement requirements, and new control panel designs.
WHAT DOES THIS PRODUCT DO?
The ASI471078 creates a centralized distribution point between the power source and the devices being powered.
Instead of individually wiring multiple devices directly back to the power supply or building a network of terminal blocks and jumpers, power is brought into the ASI471078 and distributed through 12 output connections.
The result is cleaner, more organized control panel wiring with a dedicated location for power distribution.
WHAT PROBLEM DOES THIS SOLVE?
Industrial control panels frequently contain multiple devices that require power from the same source.
Without a dedicated distribution module, panel builders may need to stack multiple conductors at power supply terminals, install additional terminal blocks and jumpers, or create extensive point-to-point wiring throughout the panel.
This can increase wiring time, consume DIN rail space, create crowded connection points, and make troubleshooting or future modifications more difficult.
The ASI471078 provides one centralized distribution point with 2 inputs and 12 outputs, helping simplify panel wiring while making the power distribution system easier to understand, troubleshoot, and modify.
KEY FEATURES & BENEFITS
• 2 Inputs and 12 Outputs for Centralized Power Distribution
• Rated up to 250VAC/DC with 30A Maximum Total Module Current
• Reduces Point-to-Point Wiring and Terminal Block Jumpering
• Accepts One or Two Properly Configured Parallel Power Supplies

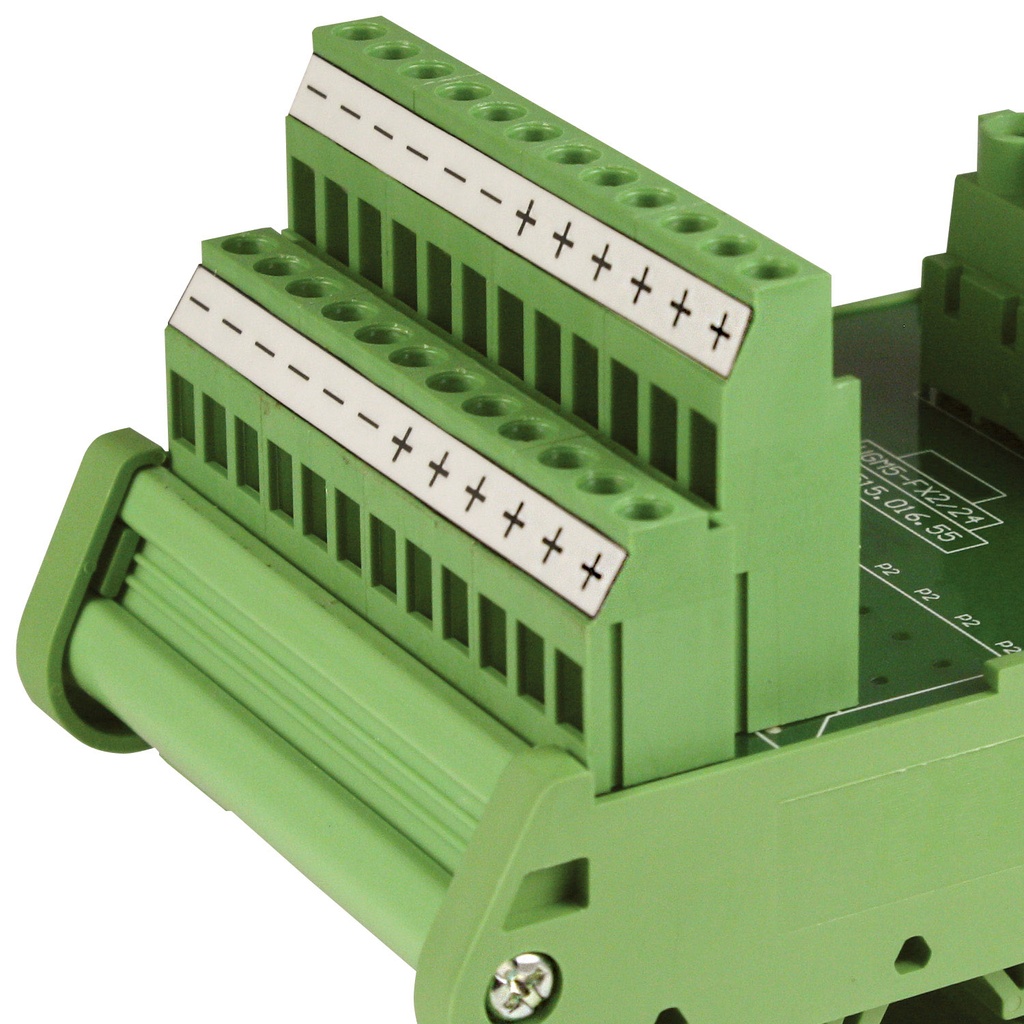

• 26-10 AWG Input Terminals Accommodate Larger Incoming Power Conductors
• 26-12 AWG Output Terminals for Distribution to Connected Loads
• DIN Rail Mount Design Simplifies Control Panel Installation
• Centralized Distribution Makes Wiring Easier to Troubleshoot and Modify
APPLICATIONS
• Industrial Control Panels
• PLC and Automation Systems
• OEM Machinery
• Machine Control Panels
• Process Control Systems
• Building Automation
• Material Handling and Packaging Equipment
• AC or DC Power Distribution
WHY CHOOSE THE ASI471078?
The ASI471078 combines multiple power distribution connections into one compact DIN rail mounted module, providing a cleaner alternative to extensive terminal block jumper networks and individual point-to-point power wiring.
Its 2 input and 12 output configuration provides a convenient centralized distribution point for industrial control panels requiring power to be distributed to multiple devices.
The module's 250VAC/DC voltage rating allows it to be used for both AC and DC power distribution applications, while its 30A maximum current rating and ability to accept up to 10 AWG input conductors make it suitable for a wide range of industrial control panel applications.
For systems using parallel power supplies, the ASI471078 can also accept the output of one or two parallel supplies before distributing power to the connected devices.
IMPORTANT APPLICATION NOTE
The ASI471078 is a power distribution module. It does not provide individual branch circuit protection, electronic circuit protection, or redundant power supply isolation.
When using multiple power supplies, the power supplies and overall system must be properly configured for parallel operation.
