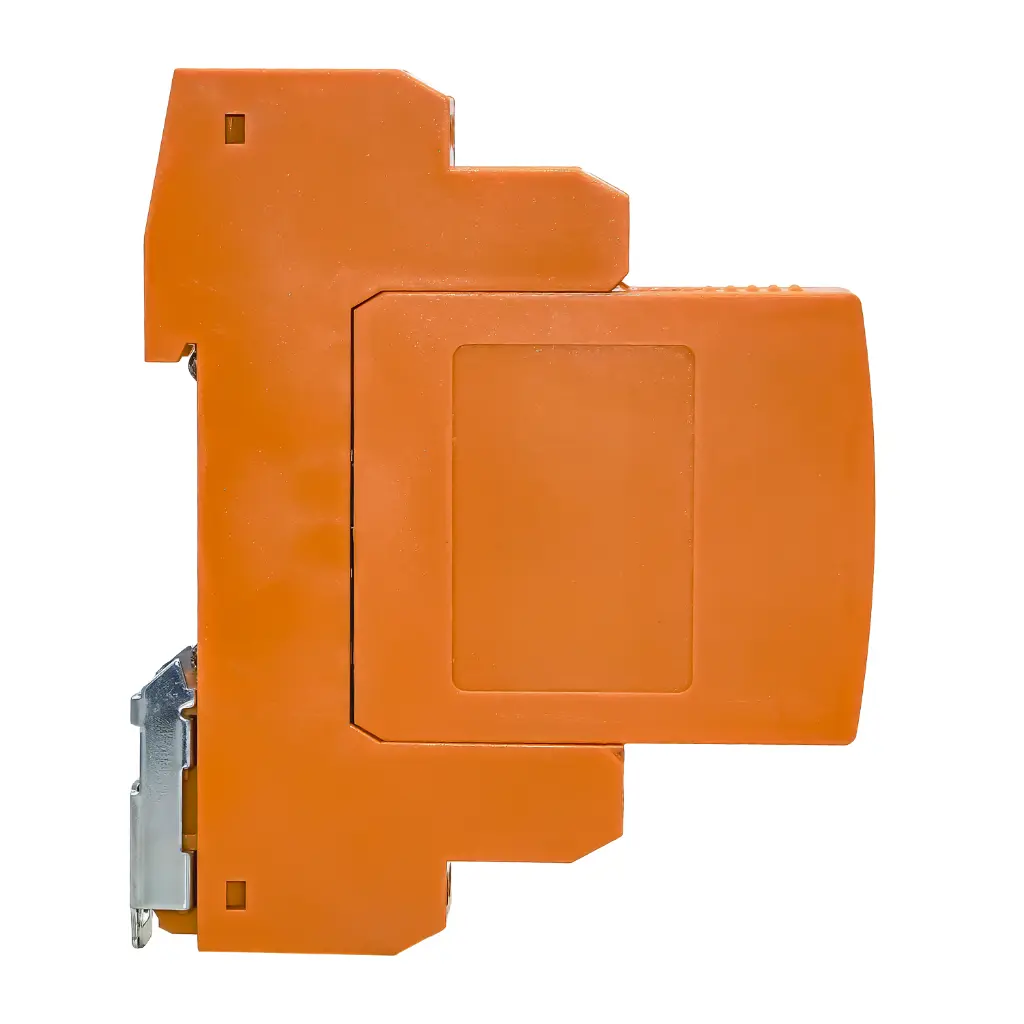

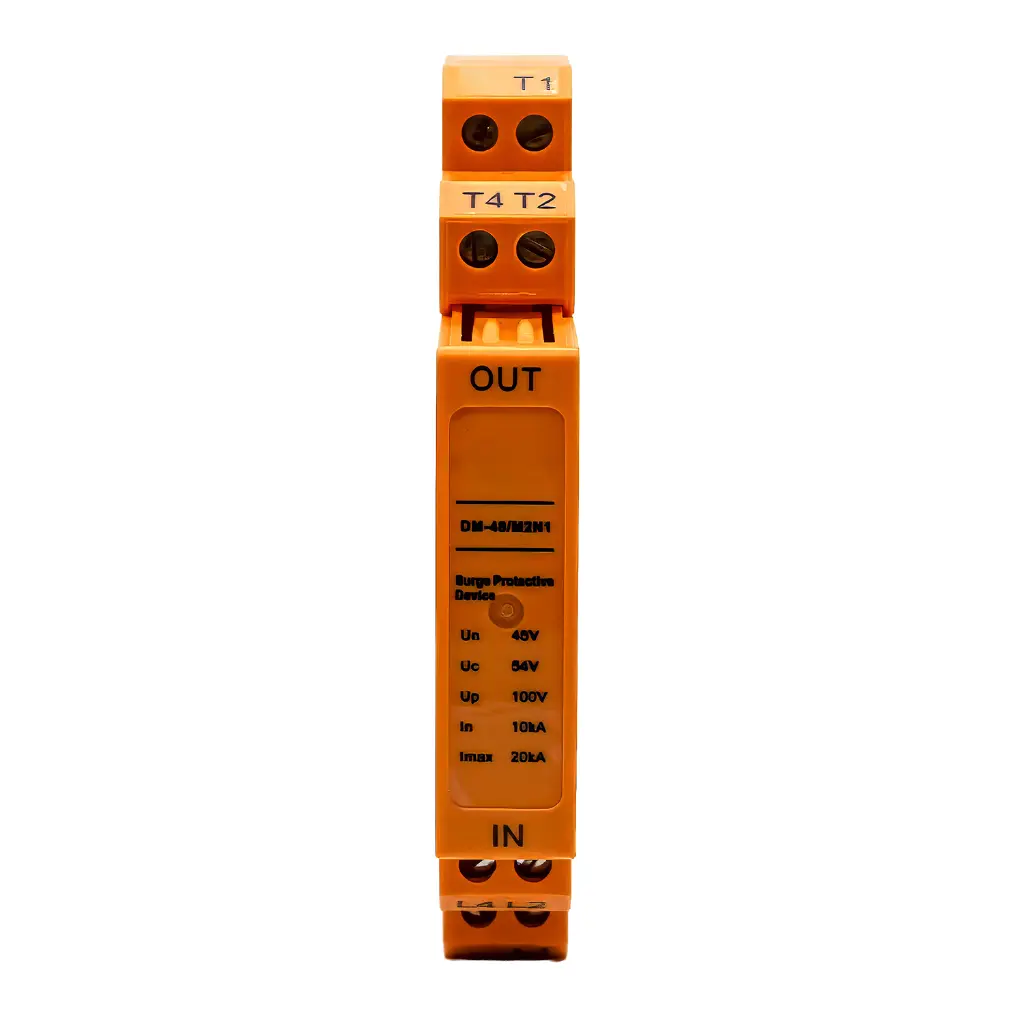

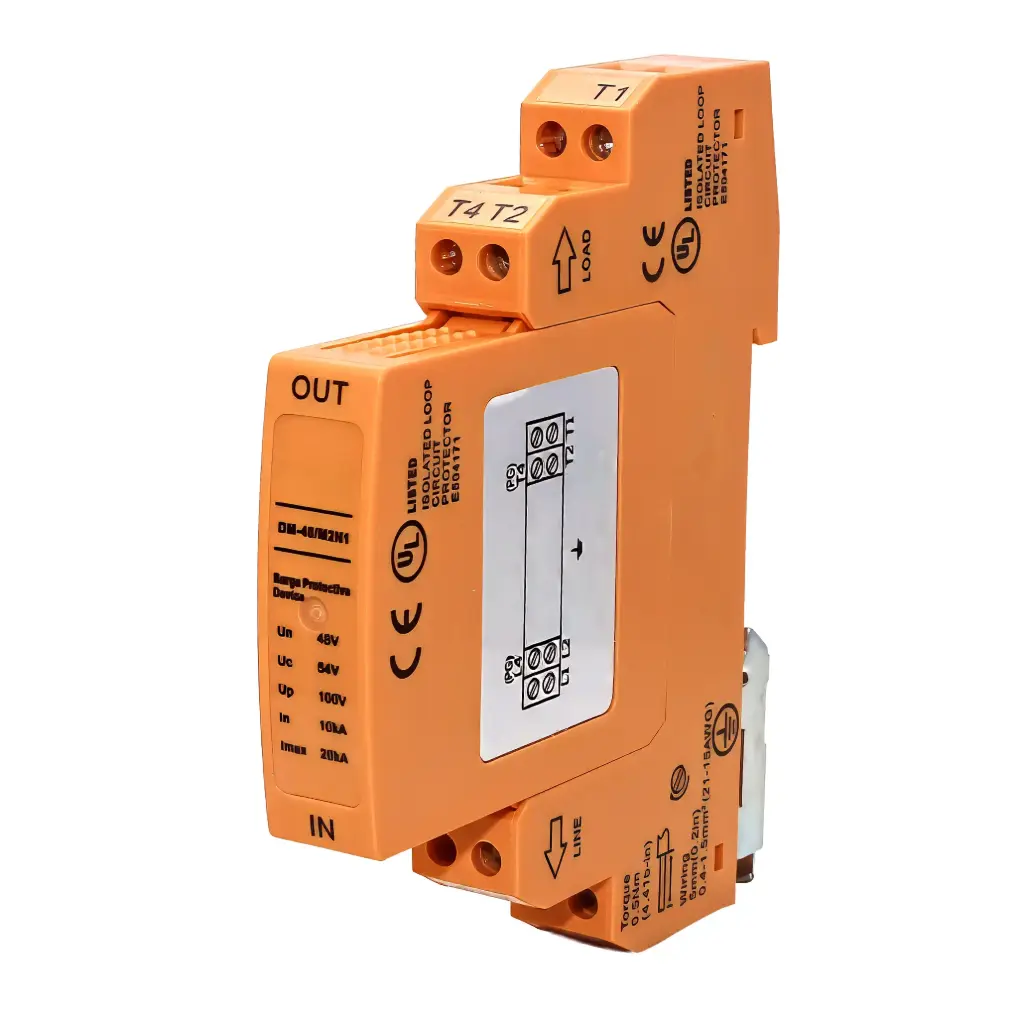

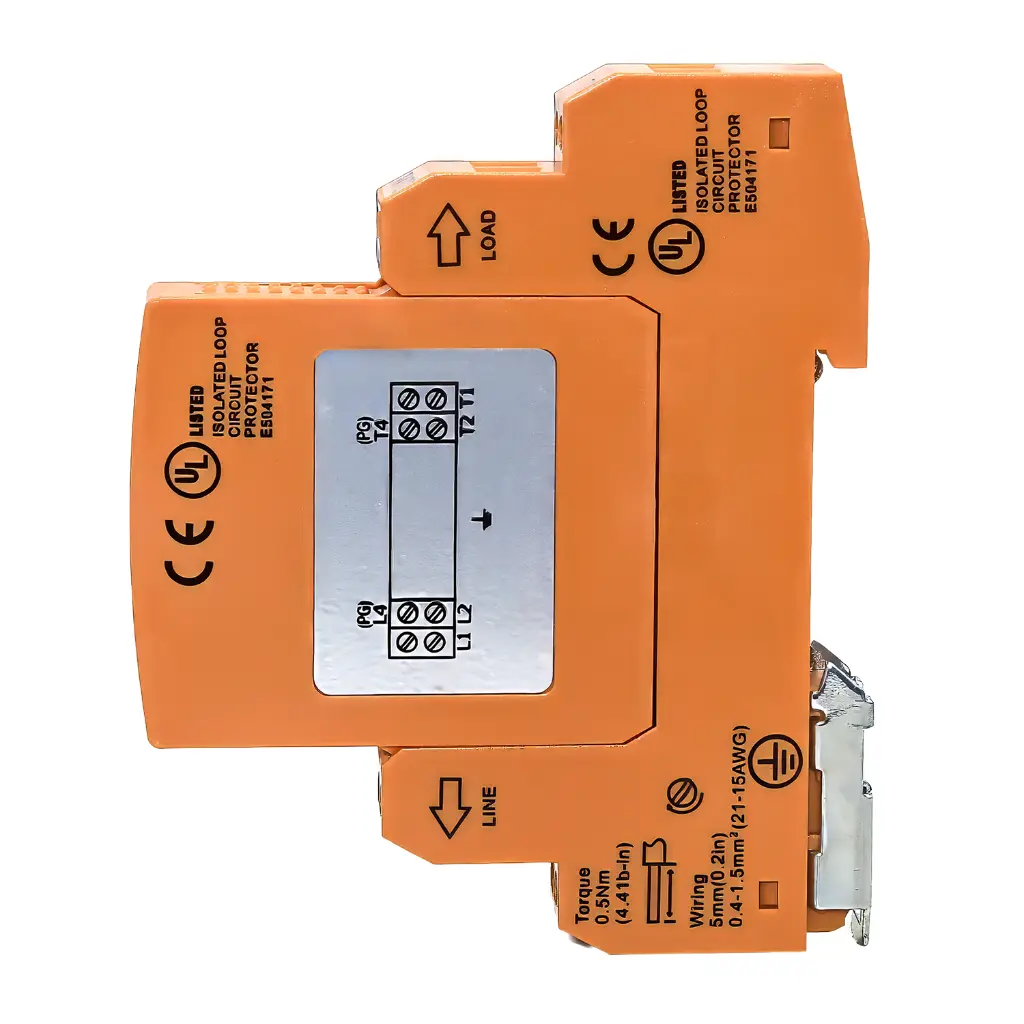

ASI DM48-M2N1 | RS232C Surge Protector | 2-Wire | 2-Stage Protection Circuit | 12V DC | SCCR 5kA | Application: High Frequency Network Data Circuit Protection, 0-20mA, 4-20mA Current Loop, TTY 4-20mA, TTY, TTL | UL 497B Compliant
SKU: ASIDM48-M2N1
DIN Rail Mounted High Frequency Signal Transmission Two Stage Protection Device. Suitable to use for 0-20mA, 4-20mA current loop, TTY 4-20mA, TTY, TTL, V24 (RS232C）and high-frequency transmission system etc
*UL listed dataline protector per UL 497B standard (File No. E504171)

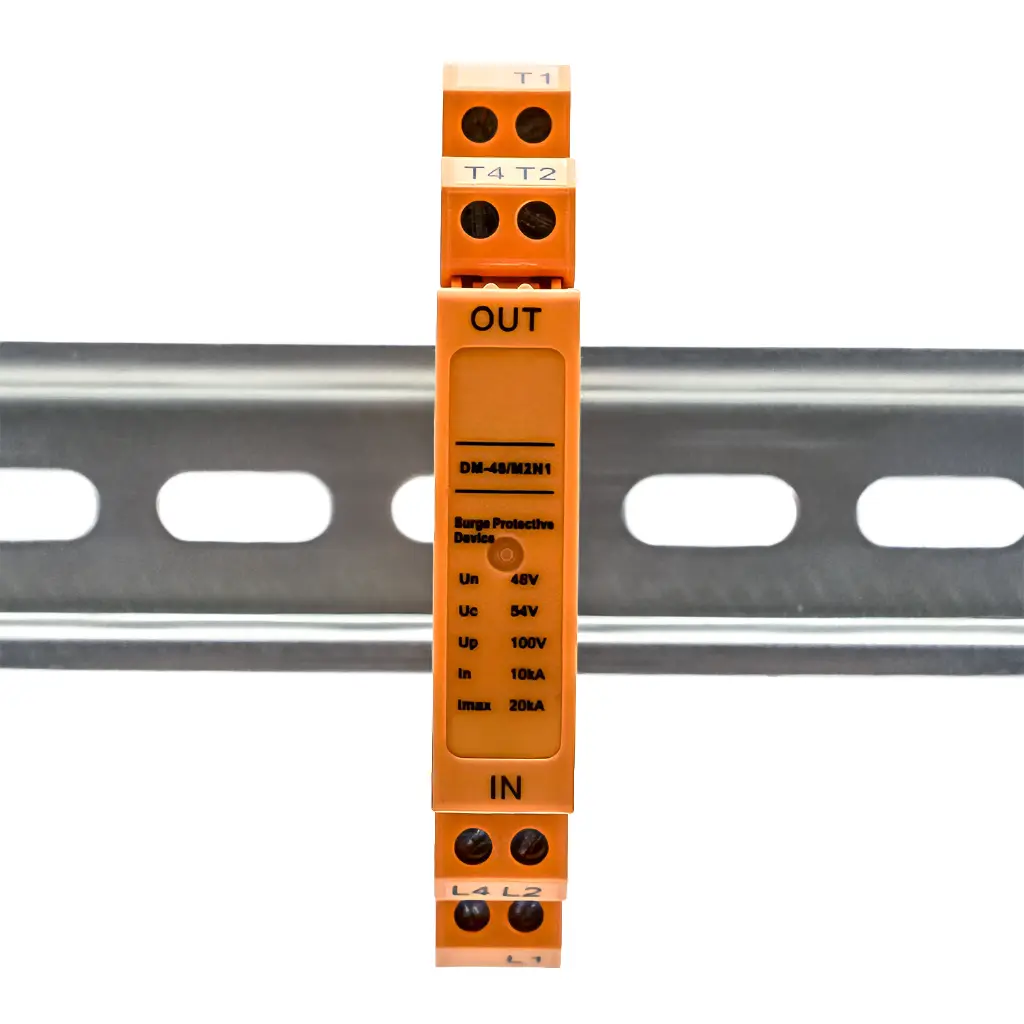

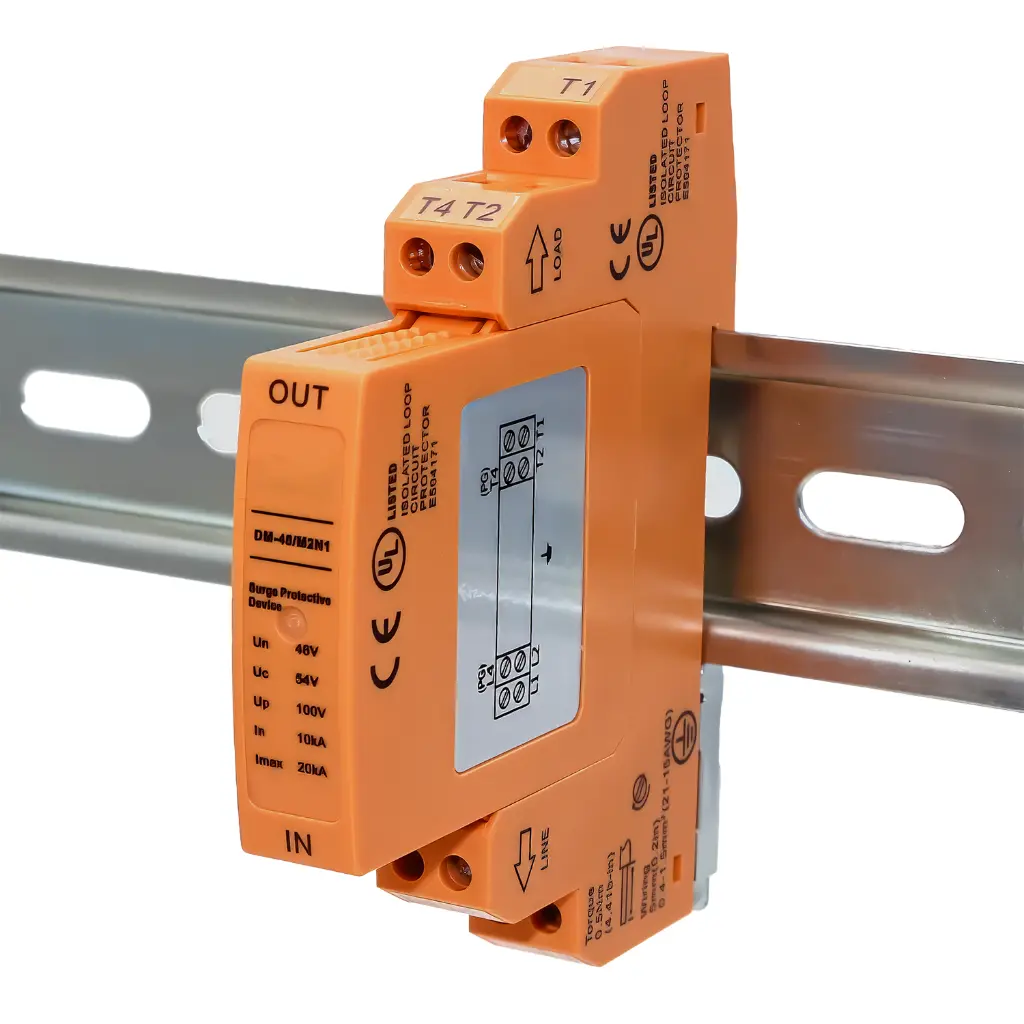

*Pluggable DIN Rail surge protection device
*Signal transmission is not interrupted when exchanging module
*Rate load current 1A
*Two-stage protection circuit ,limit the transients with gas discharge tubes and transzorb diodes

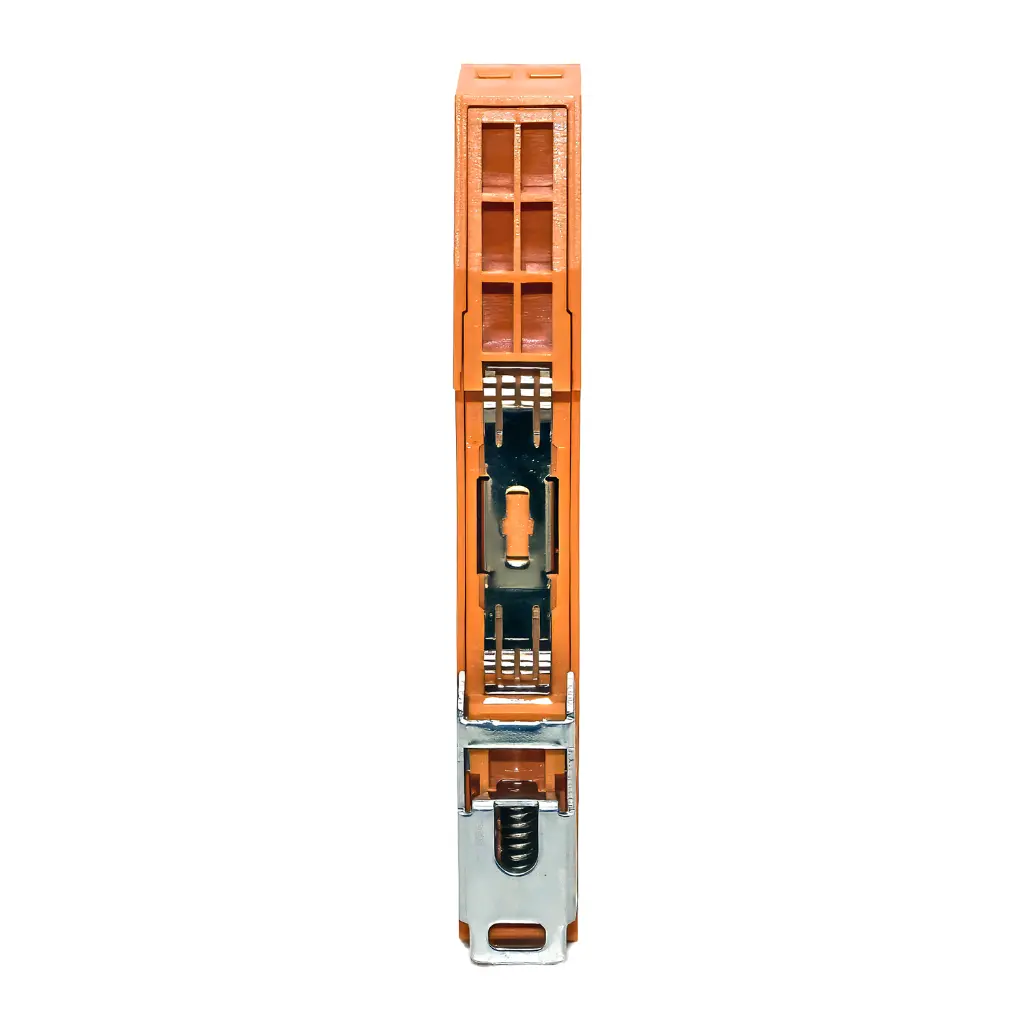

*Earth possible on DIN Rail.
*Comply with UL497, and IEC61643-21:2012,category D1/C1/C2/C3
In Stock (80)
