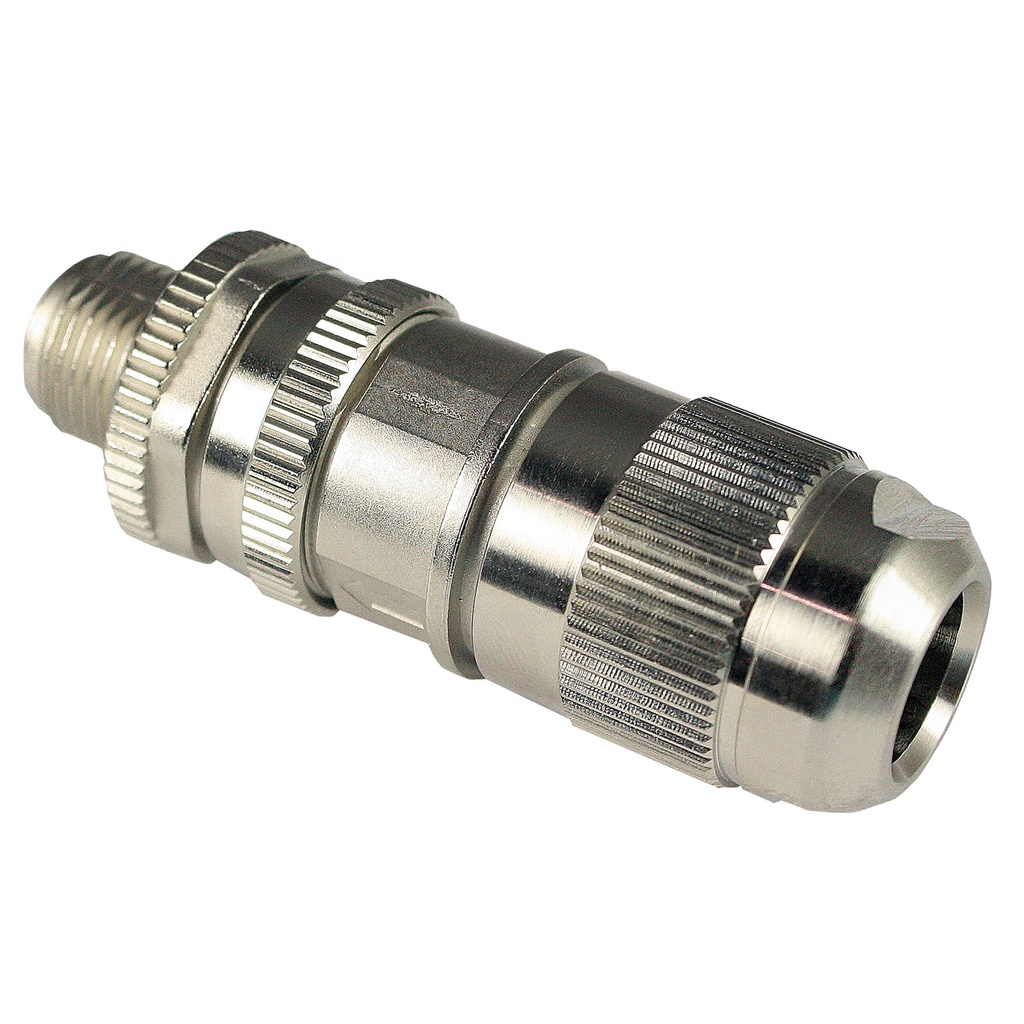

Field Wireable M12 Connector X Coded, 8 Pole Male Cat6A Cat7 IP67

ASIMB12MPSXFF088ST is a field wireable male M12 Connector x coded with 8 poles. This field wired x coded m12 connector is typically used in fieldbus system applications using 10 gigabit Ethernet. The metal housing of this field wireable M12, x coded connector is nickel plated zinc alloy, the contacts are made of gold plated brass, and the connector nut/screw is made of nickel plated brass/zinc. The sealing O-ring is made of FKM. In the locked position this Ethernet Cable Connector meets IP67 standards protecting against liquid and debris. Rated 0.5 Amps at 50 Vac/60Vdc, it accepts 26 to 22 AWG Cat6A or Cat7 Ethernet cable. Ideal operating temperature range is -25 C to 90 C.

In Stock (81)

36.39 36.39 USD 36.39


Not Available For Sale


    This combination does not exist.
