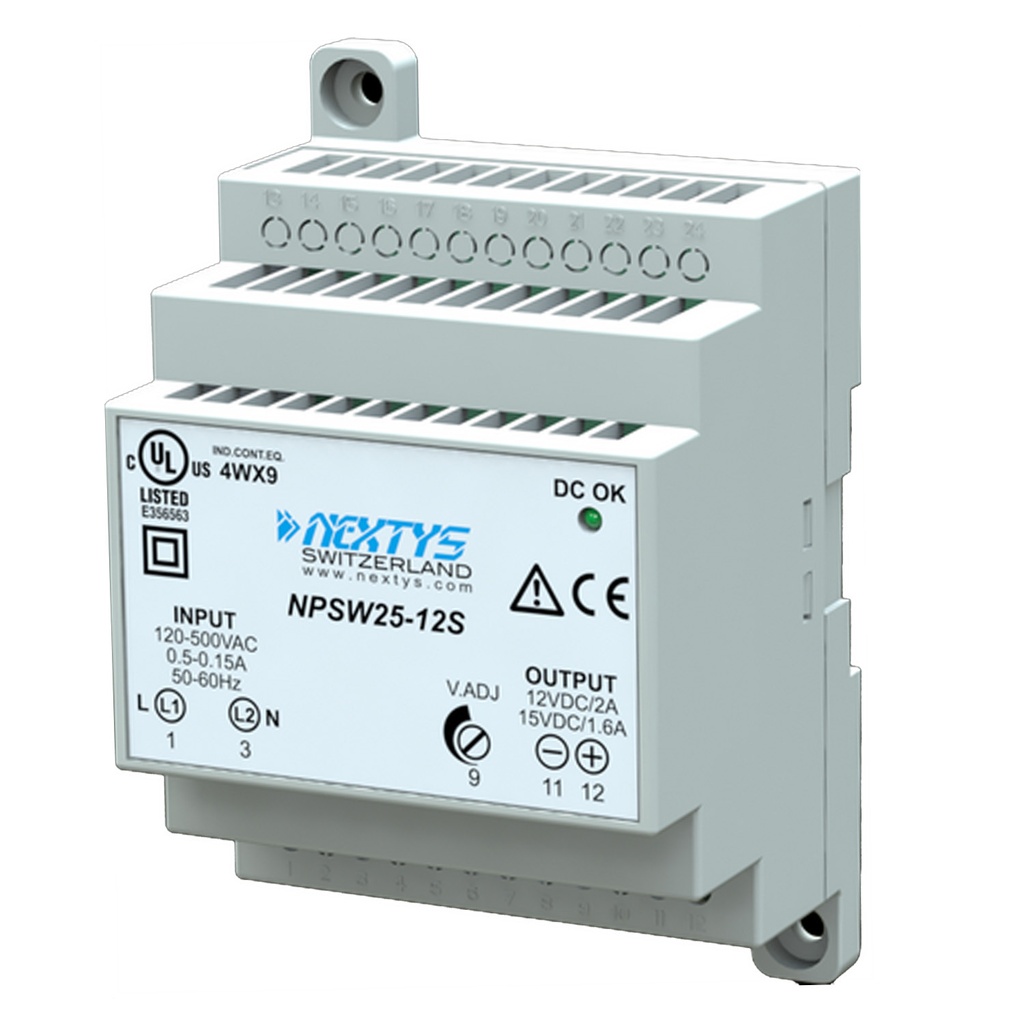

12V 2A DIN Rail Power Supply, 1-2 Phase 90-550V Input


The ASINPSW25-12S is a space saving wide range input, 90-550Vac, adjustable 12V to 15V output DIN rail power supply for use in applications with restricted space. The compact low profile dimensions of 61mm high and only 72mm wide ensure saving space and an ideal fit for small enclosures. This Class 2 isolation wide range input 12V power supply also saves time and money during installation since a ground connection is not required. The ASINPSW25-12S provides 25 Watts or 2 Amps at 12Vdc or 1.6A at 15Vdc using a wide range 90 to 550Vac input that makes it applicable for use in North America and elsewhere in the world. The high efficiency design and operation provides for low dissipated power and a long reliable life. The screw clamp connections will save time and money during and after installation. This DIN rail mount 12v power supply is UL508 Listed and has features such as LED status indication, short circuit, over temperature, input and output overvoltage protection. The overload limit for this 12Vdc to 15Vdc DIN rail power supply ranges from 2.65A to 2.9A depending on the input voltage.

Call for Availability

182.74 182.74 USD 182.74


Not Available For Sale


    This combination does not exist.
