600V PV Surge Protector, DIN Rail Mount, V Configuration, 2-Pole DC Surge Protector For Solar, ASISPV600-V-C-S

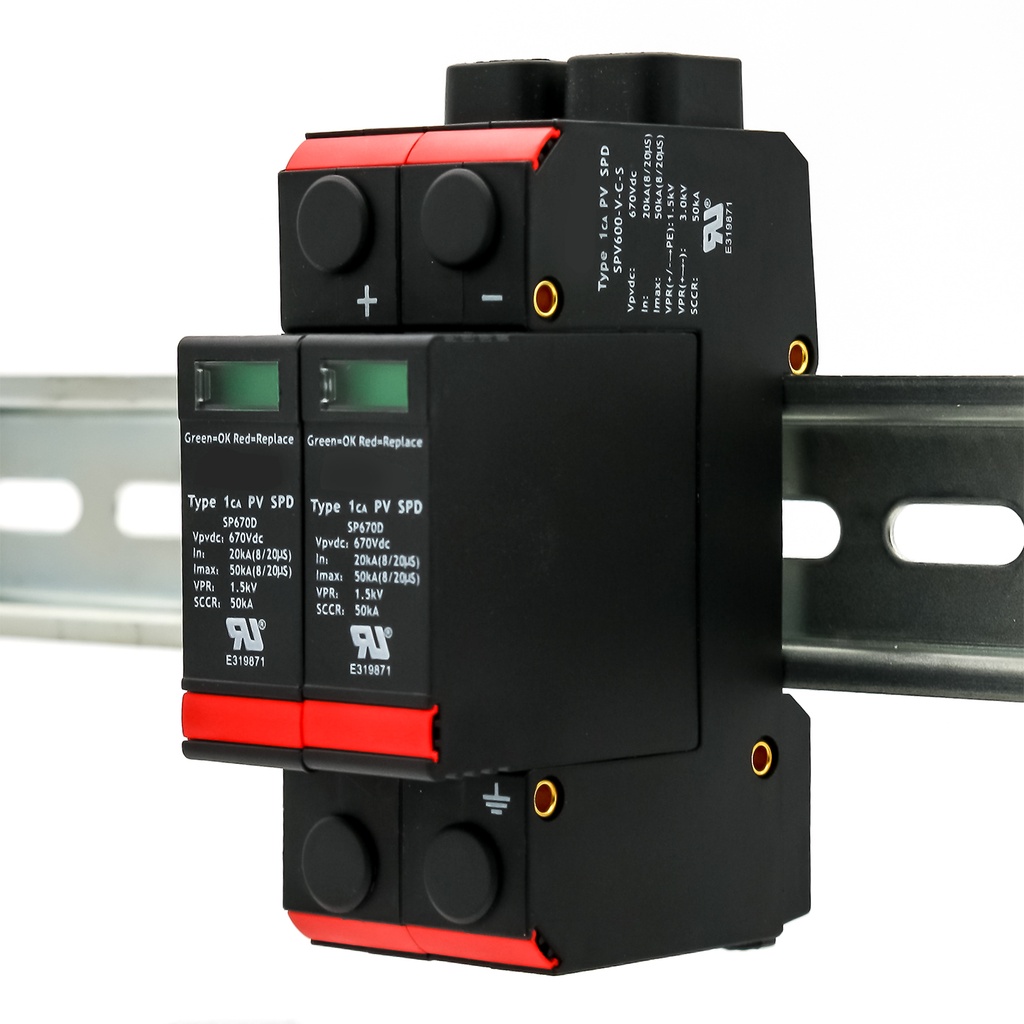

The ASISPV600-V-C-S is a PV surge protector designed as a surge protector for solar applications using MOV technology. This DC surge protector mounts on a DIN rail and has a rating of MCOV 670 Vdc, 50kA Max Discharge Current. UL 1449 4th Edition rated Type 4 for use in Type 1, 2 and 3 applications and KEMA certified with a MCOV rating of 670 Vdc. The SPD is factory tested for an SCCR Rating of 50 kA. Remote contact is standard making status monitoring easy. The SPD base is designed to be mounted on 35 mm DIN rail while plugs have easy to read visual indication and are easily replaceable. Replacement plug ASIMSP550 can be purchased separately. Voltage specific keying is on all modules to make it easy to know the plug is assembled to the correct base.

In Stock (27)

111.48 111.48 USD 111.48


Not Available For Sale


    This combination does not exist.
