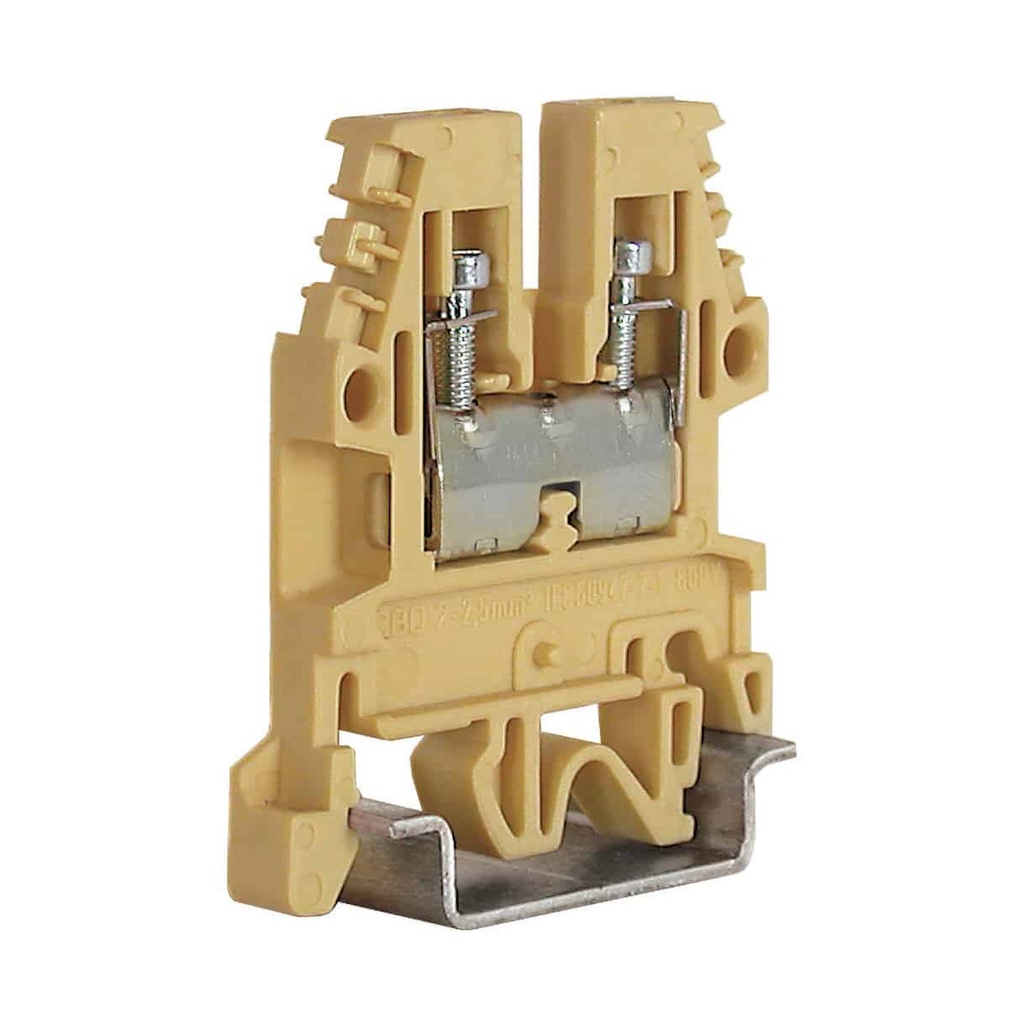

Feed Through Terminal Block | 20A 600V | 20-12 AWG | DIN Rail Mount | Screw Terminal | 5.5mm Wide | UL Recognized | PACK of 50 | ASI CB110

The CB110, type CBD.2 is a premium feed through terminal block with screw terminal block wire terminations. The beige housing of this high quality DIN terminal block is made of a UL94V0 polyamide material. The CB110 DIN rail screw terminal block for industrial applications features a nickel plated copper, full metal body that offers superior resistance to corrosion. This screw terminal block, DIN rail mount uses a reliable clamp technology where the wire is stationary and the clamp comes down to mechanically hold the wire to the metal body which is nickel plated for maximum protection in any environment. The CBD.2 DIN rail mounted terminal block has a wire range of 20 to 12 AWG and a rating of 20 amps at 600 volts by UL. The CB110 can be labeled on both sides of the block for easy visual identification of the circuit.
