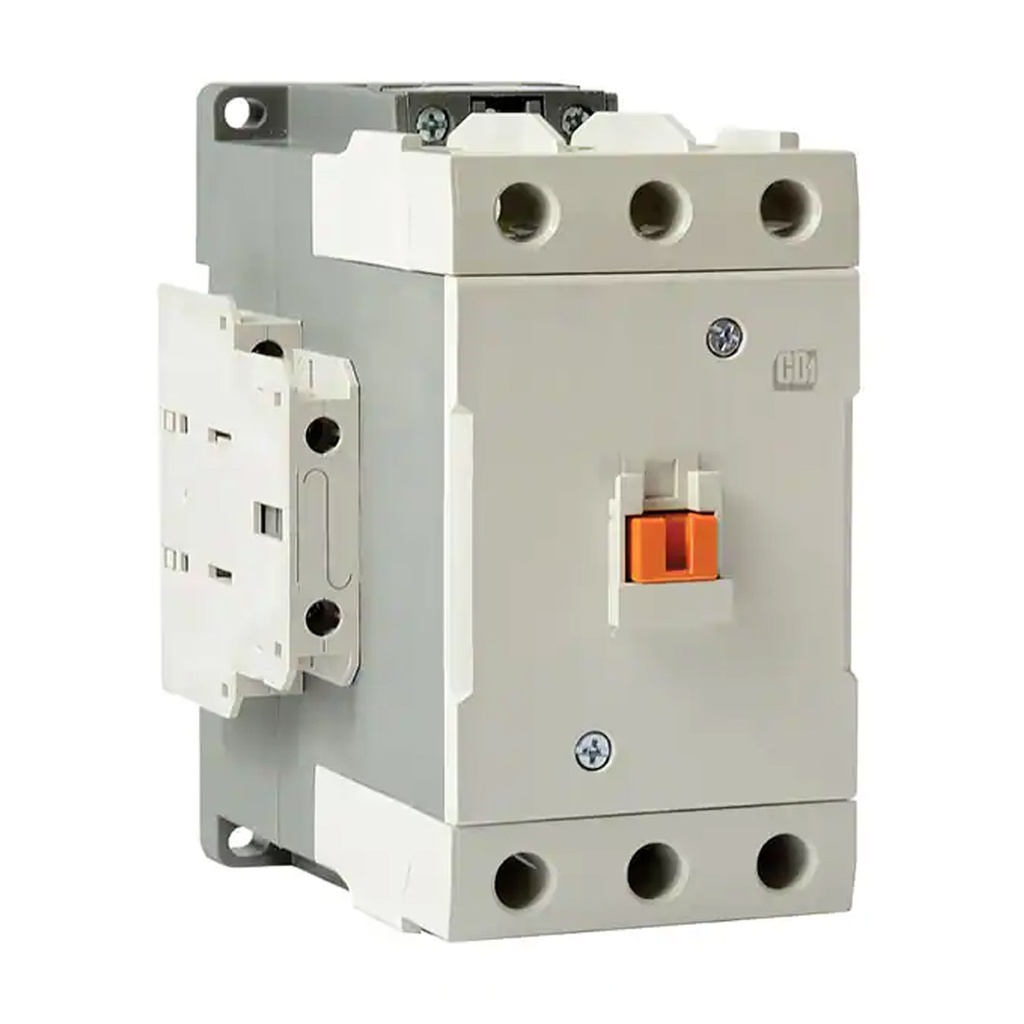

3 Pole IEC Contactor 160 Amp, 3 Phase Contactor 120V Coil , DIN Rail, Panel Mount 3 Pole AC Contactor, UL508 Listed
SKU: CC100-110
The ASI CC100-110 is a compact DIN rail/panel mount 3 pole contactor with a 120Vac coil that has a 160 amp UL (50/60Hz) rating. This single phase and three phase IEC contactor is suitable for use with up to 10 hp 120Vac or up to 20 hp 240Vac single phase motors; and up to 75 hp 600Vac three phase motors. The screw clamp connections on this 160A, 3 pole contactor with a 120V coil provide for easy wiring of #8-2/0AWG stranded/solid wires with a torque value of 45 lb-in. The ASI CC100-110 3 pole IEC contactor is UL508 listed.
In Stock (12)
Cross-referenced as: 1342012900, MC100A-30-22-K7-S-E
Specifications
| Poles | 3 |
| UL | UL 508 |
| Phase Type | 3 Phase |
