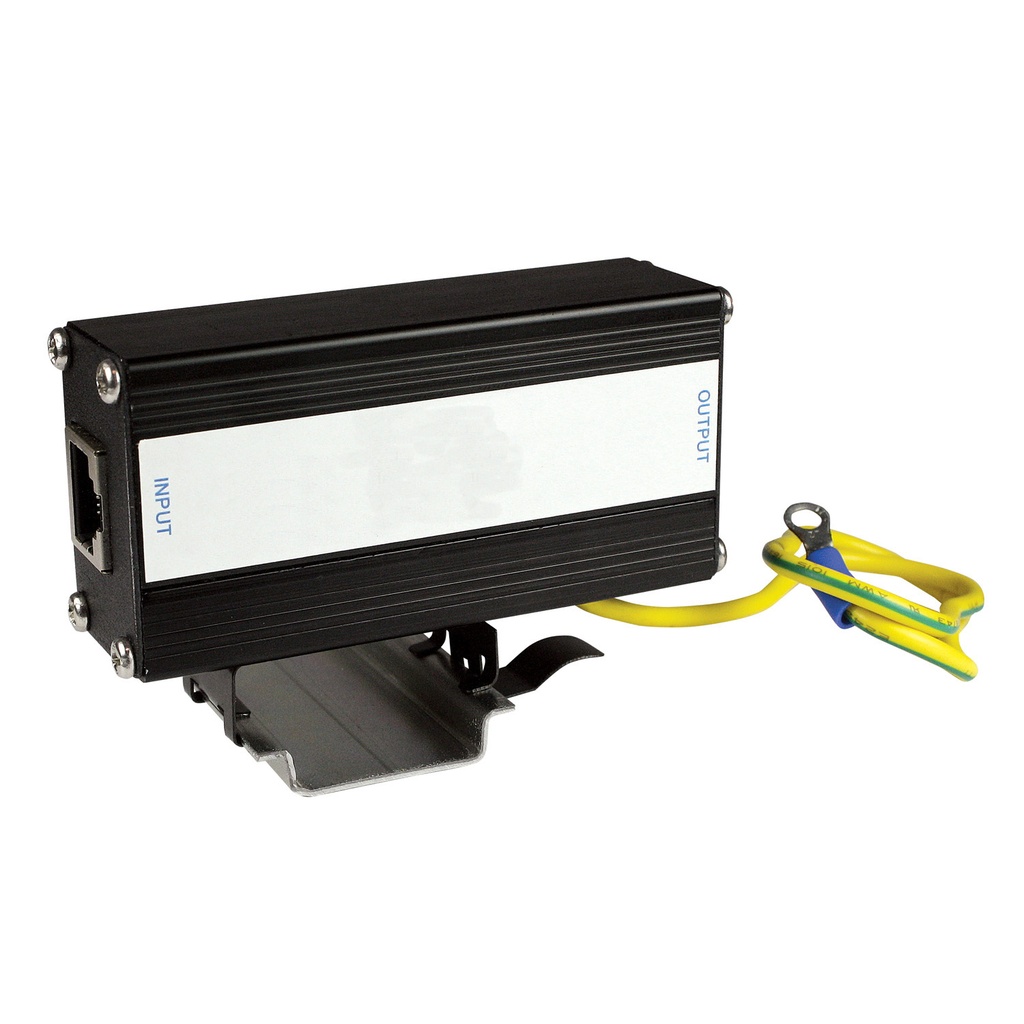

RJ45 Ethernet Surge Protector | Cat6 Gigabit | 2-Stage GDT/TVS Protection | D-05/RJ45B
The D-05/RJ45B is an industrial Ethernet surge protection device designed to protect sensitive network equipment from transient overvoltages caused by lightning-induced surges, electrical switching, and other disturbances. Installed inline with an Ethernet connection, the device helps reduce the risk of damage to network switches, PLC communication ports, industrial controllers, and other connected equipment.
Designed for Cat6 / Class E Ethernet applications, the D-05/RJ45B supports Gigabit Ethernet communication up to 1000 Mbps. Its two-stage surge protection design combines gas discharge tube (GDT) technology with transient voltage suppression (TVS) diodes to divert surge energy and limit transient voltages reaching connected electronics.
WHAT PROBLEM DOES THIS SOLVE?
Industrial Ethernet equipment is vulnerable to voltage surges entering through network cables. A transient event can damage Ethernet ports, interrupt machine communications, and require replacement of costly electronic equipment. The D-05/RJ45B adds surge protection to the Ethernet communication path, helping protect connected equipment and reduce the risk of unplanned downtime. It is particularly useful where Ethernet cables run between machines, control panels, buildings, or electrically noisy areas.
KEY FEATURES & BENEFITS
• Protects Ethernet Equipment from Transient Voltage Surges
• Supports Cat6 / Class E Ethernet Communication up to 250 MHz
• Compatible with Gigabit Ethernet Networks up to 1000 Mbps
• Two-Stage GDT and TVS Technology Provides Surge Protection
• Fast Transient Response Helps Limit Voltage Spikes
• Inline RJ45 Connections Simplify Network Integration
• Helps Reduce Surge-Related Equipment Damage and Downtime
• Suitable for Industrial and Commercial Ethernet Applications
APPLICATIONS
• Industrial Ethernet Networks
• PLC and Machine Control Systems
• Industrial Ethernet Switches
• Factory Automation Equipment
• Building Automation Networks
• Ethernet Communication Between Control Panels
• Industrial Monitoring and Data Acquisition
• Commercial Network and Telecommunications Equipment
IMPORTANT APPLICATION NOTE
The D-05/RJ45B is intended for low-voltage Ethernet data circuits with a nominal operating voltage of 5VDC. Prosurge specifies a maximum continuous operating voltage of 6V.
This model should not be selected for PoE, PoE+, or PoE++ circuits without manufacturer confirmation. Prosurge offers the D-48/RJ45-PoE for applications requiring Ethernet surge protection with PoE power transmission.
Proper grounding is essential for surge protection performance. Install the device near the equipment being protected and follow the manufacturer's grounding and wiring instructions.
