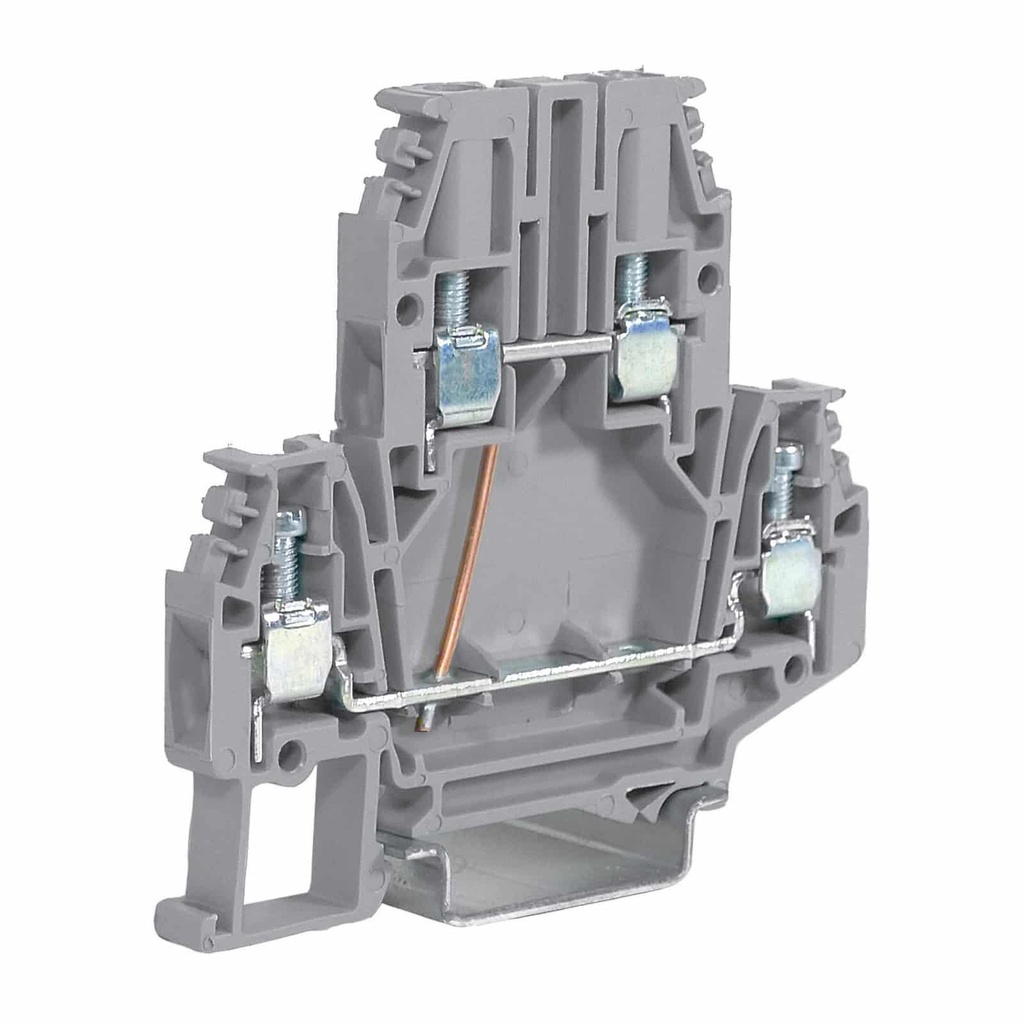

2 Level Terminal Block, DIN Rail Mount, Only 5mm Wide, Upper And Lower Level Connected, 28-12 AWG, Accepts Push In Jumpers,


The DB117GR, type DBC.2/CI/GR is a 2 level terminal block that has an internal jumper connection the upper and lower level making this a 4 wire terminal block. This internally jumper 2 level terminal block has 2 slots per level that accept the patented push-in PTC circuit jumpers. The upper and lower level of this 2 level DIN terminal block are connected internally making all 4 connections common. The UL rating for this 2-level DIN terminal block is 28-12 AWG, 20A, 600V. The unique jumper system for this double level DIN terminal block allows for consecutive or alternating circuit jumping. An Exi version in blue of this double level terminal block is available.

Call for Availability

882.34 882.34 USD 882.34


Not Available For Sale

/Pack of 120 (7.35 / Each)
