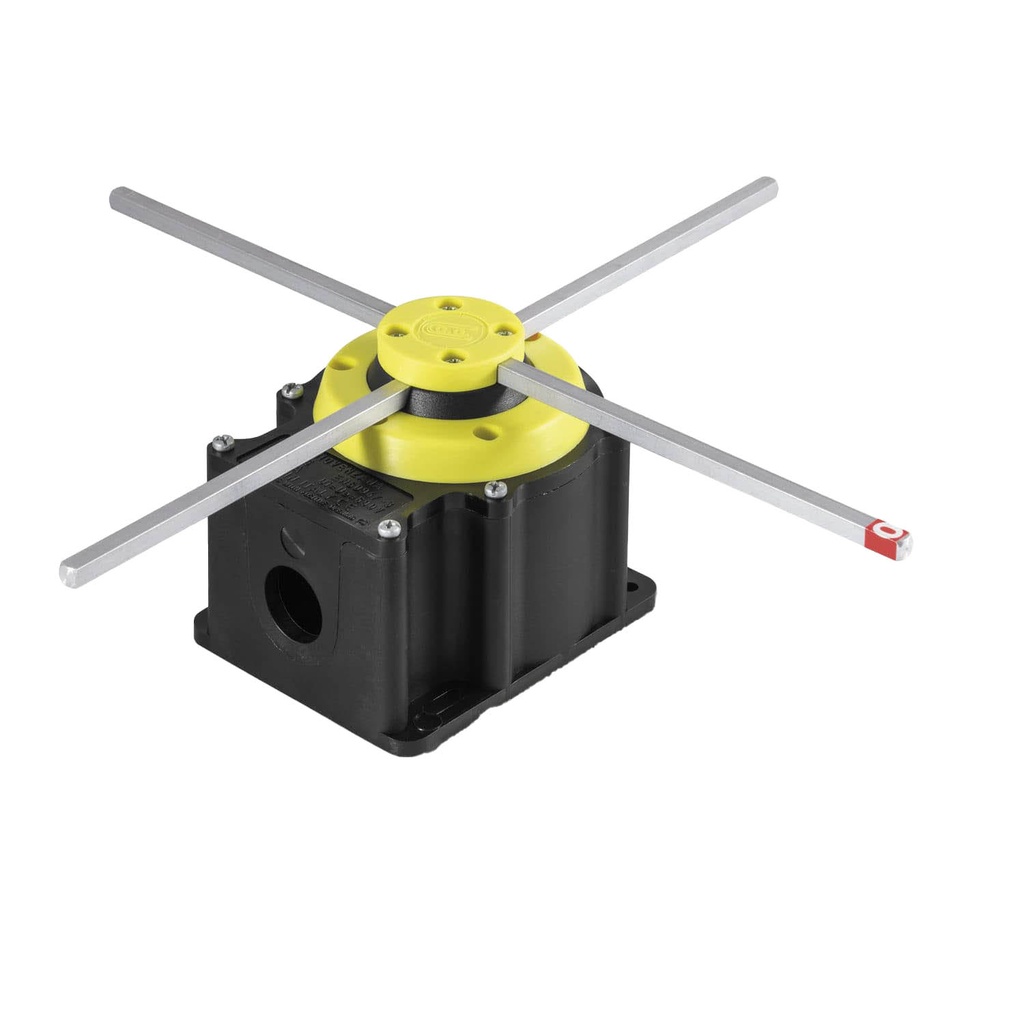

Cross Bar Limit Switch, 4 Position, Single Speed

The ASI FCR003 is a standard single speed 4 position cross limit switch used as an overhead crane limit switch. This standard 3 position single speed cross bar limit switch uses a 2 pole rotary cam switch with positive opening contacts that are rated at 16 amps. The housing of the FCR003 cross bar limit switch has 4 mounting holes for easy and secure installation. The 6x6mm aluminum rods on this compact cross limit switch are 300mm end to end and the IP65 rated thermoplastic housing is equipped with a knockout for an easy to install cable gland.

In Stock (7)

125.39 125.39 USD 125.39


Not Available For Sale


    This combination does not exist.

    Addtional Resources:
