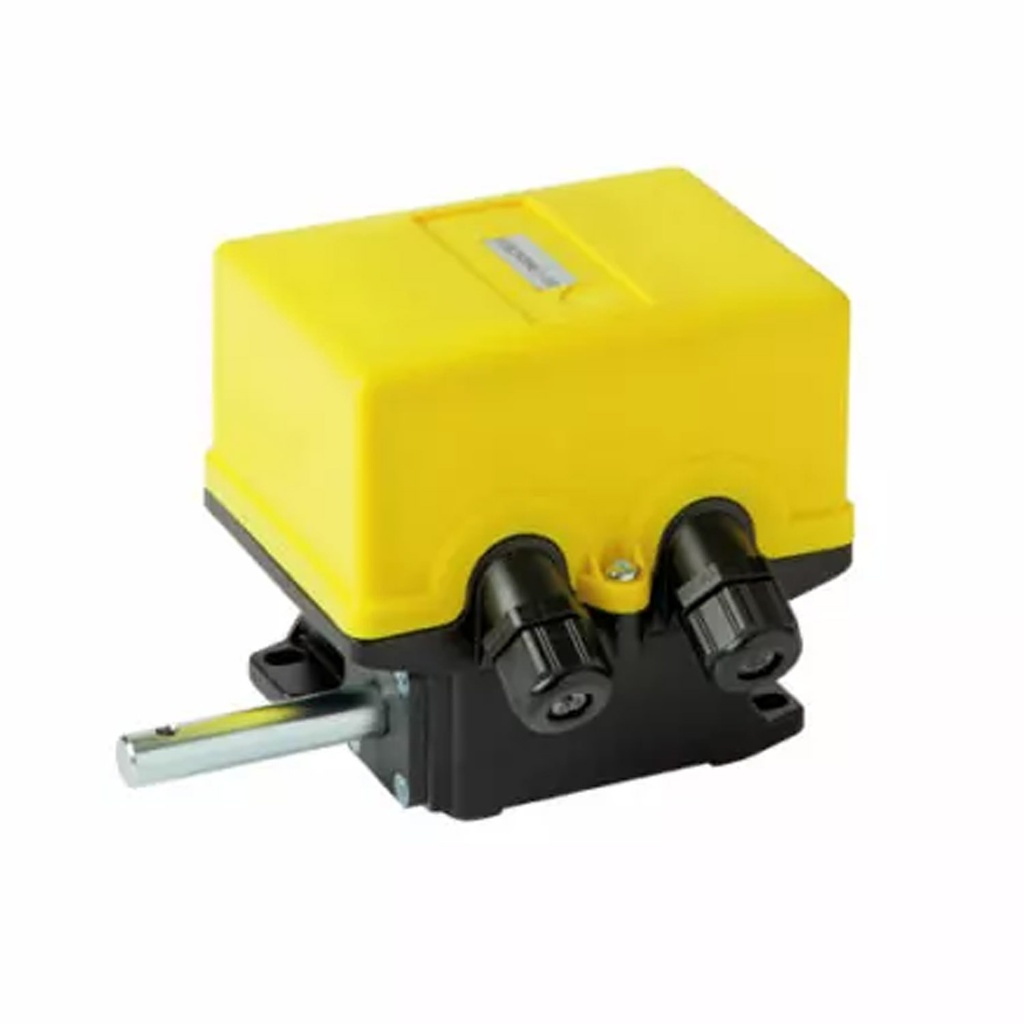

Crane Rotary Gear Limit Switch, Metal Base, 4 Microswitch, 1:100 Ratio

The FGR2N009 is a base mount Crane Rotary Gear Limit Switch with a single shaft which is used to control the rotation of industrial control equipment and as an EOT crane limit switch. Housing dimensions for this crane rotary gear limit switch are 110x90x122mm and the base it is made of aluminum and the top is a thermoplastic. This crane rotary gear limit switch carries an IP65 rating. This EOT crane limit switch has a ratio of 1:100, and features two M20 cable entries. It is suitable for use in ambient temperature ratings of -25°C to +70°C. This Giovenzana rotary limit switch features 4 MFI.7 microswitches, each with 1NO and 1 positive opening NC contact.
