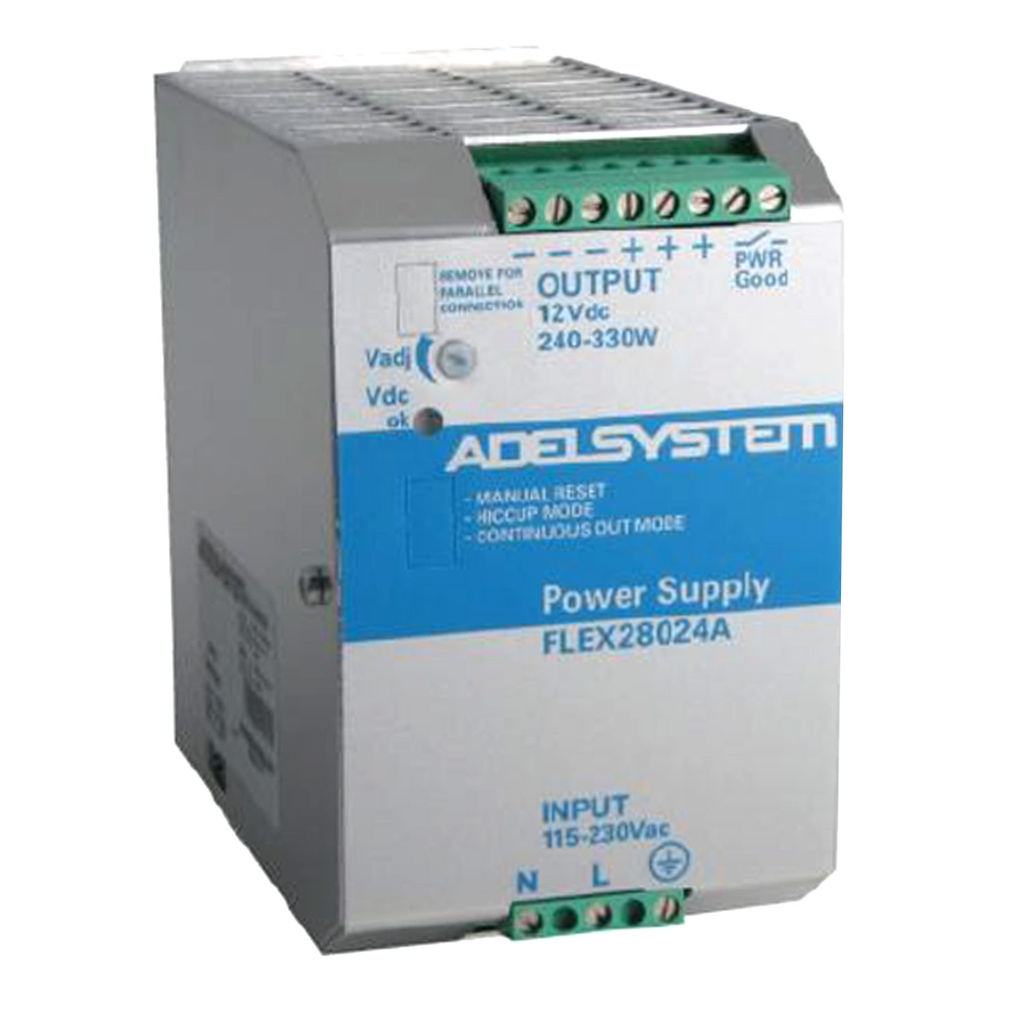

12V DC Power Supply, 20 Amp, 115-230V AC Input, DIN Rail Mounted

https://www.sourceasi.com/web/image/product.template/16/image_1920?unique=8ab494a
SKU: FLEX28012A

The FLEX28012A is a space saving single-phase DIN rail power supply with compact dimensions that require less than 2.9 inches of rail space thereby saving valuable panel space. It provides 240 watts or 20 amps at 12 Vdc power using a wide range 115 to 230 volts AC input that makes it applicable for use in North America or anywhere else in the world. It has pluggable connections that will save time and money during and after installation. The high efficiency design of this 12V, 20A DIN rail power supply is 91% which provides for low dissipated power and a long reliable life. The FLEX28012A power supply features Overload, Over Temperature (Shut down and Automatic restart), Short Circuit (Hiccup Mode, Continuous Out Mode and Manual Reset) and Over Voltage Output Protection. It features a “Power Good” relay contact for remote indication. The FLEX28012A power supply is suitable for parallel connection applications.

Call for Availability

296.14 296.14 USD 296.14

296.14

Not Available For Sale

/EACH

    This combination does not exist.

    Addtional Resources:
