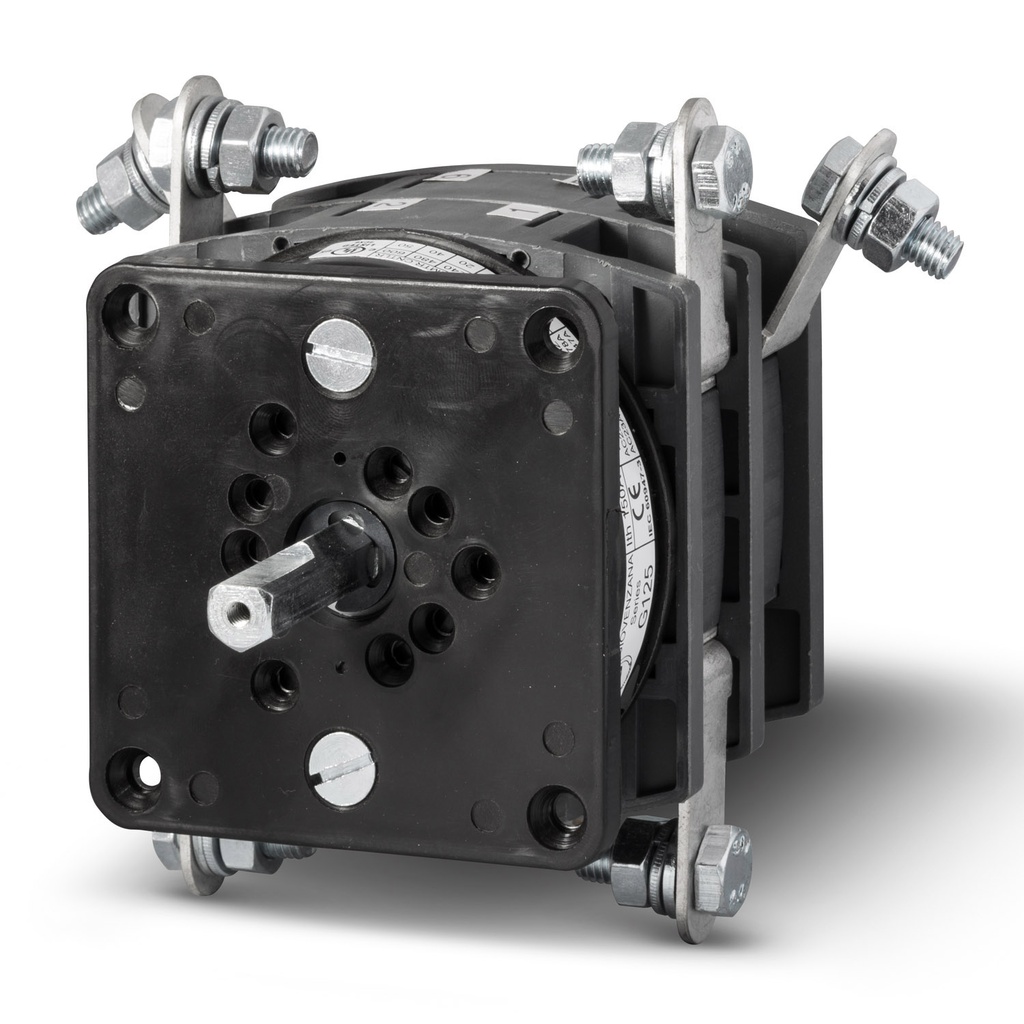

125 Amp 1 Pole Changeover Switch, 125 Amp Single Pole Rotary Changeover Switch, Rear Panel Mount, UL508 Listed, G1250008R

https://www.sourceasi.com/web/image/product.template/81109/image_1920?unique=46fcda2
SKU: G1250008R

The ASI G1250008R is a 125 amp single pole changeover switch that is rear panel mounted. The ASI G1250008R 125A single pole rotary cam changeover switch features self cleaning contacts, silver alloy plating and a UL94V0 thermoplastic housing. With a UL508 general use rating of 125A at 600Vac, the G1250008R 125 amp 3 position changeover switch is a compact design to save space, the wire connections are shock hazard proof and information on wiring and identification are laser engraved into the housing. This robust 125 amp, 3 position rotary cam changeover switch is ideal for control and load switching applications in all types of industrial applications. A wide range of NEMA 4X handles and operators are available for the rotary cam changeover switch including a lockable handle capable of accepting padlocks. Custom configurations of rotary cam switches are available upon request.
