2 Level Spring Terminal Block With Both Levels Internally Connected, DIN Rail Mount, 26-14 AWG, 15A, 600V,

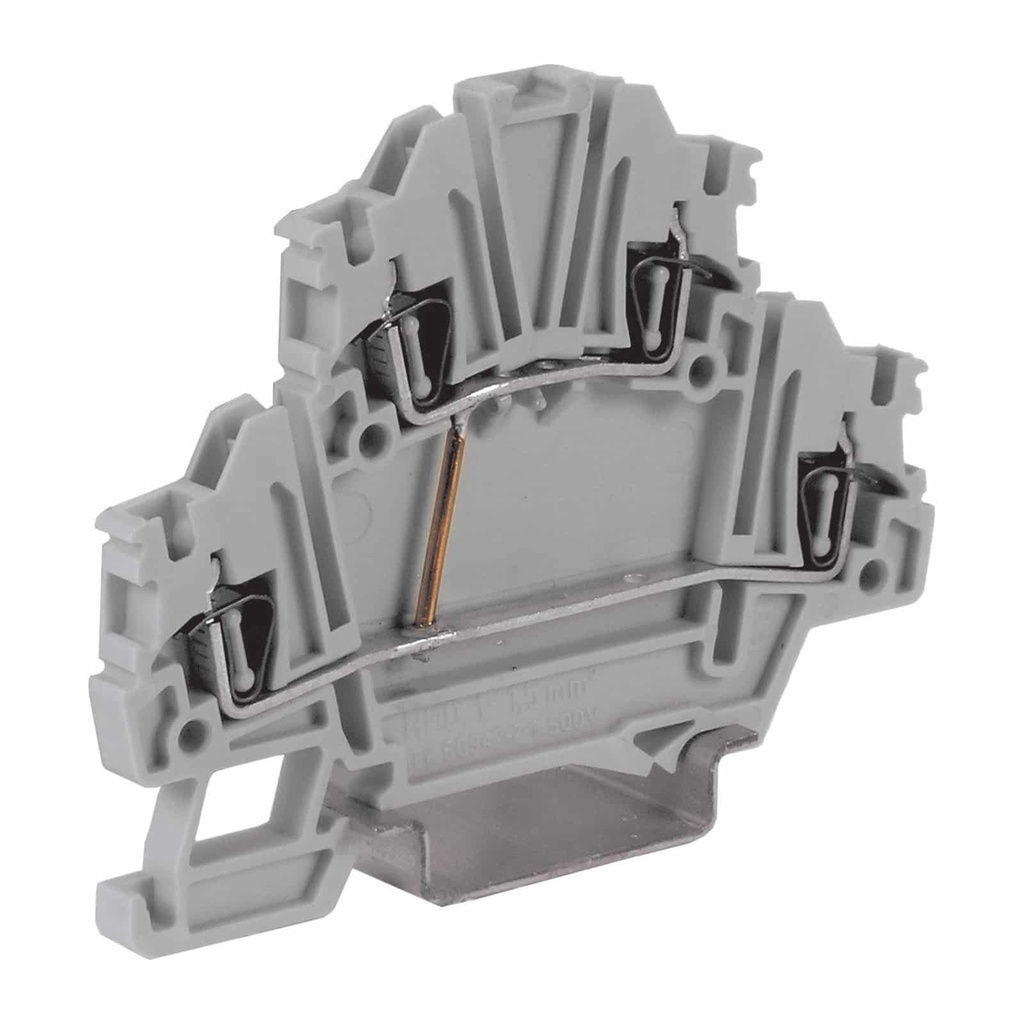

The HD120GR is a 2 level screwless, spring terminal block that has an internal jumper between the upper and lower level making it a 4 wire terminal block. This 2 level terminal block is DIN rail mounted has spring terminal connections and has a UL rating of 26-14 AWG, 15A, 600V. The dimensions of this DIN rail 2 level terminal block with an internal jumper and spring terminals are 59(H)x73(W)x4.2(D)mm.
