125 Amp, 4 Pole, 480V AC, 60V DC, Trip Curve: C, DIN Rail Mount-Miniature Circuit Breaker, UL1077
SKU: NDB1-125C125-4

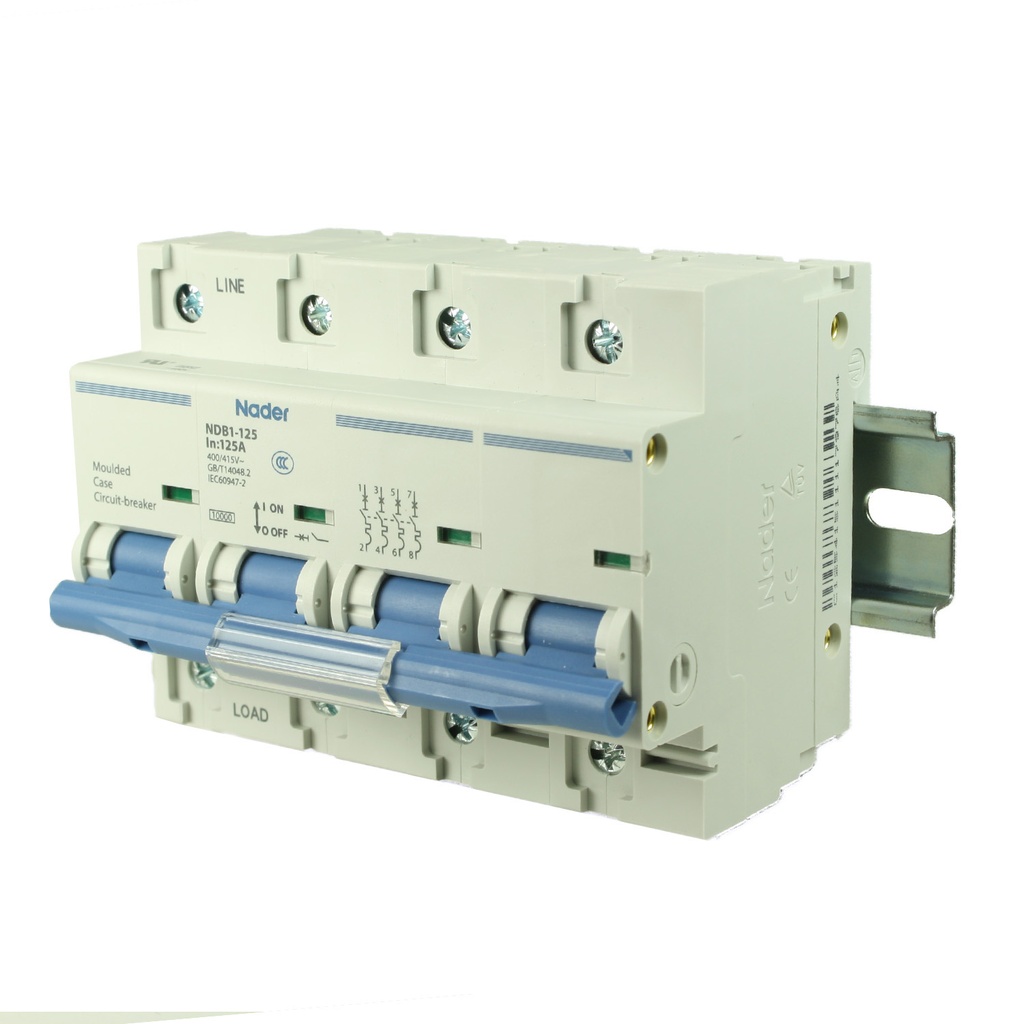

The NDB1-125C125-4 is a high current four pole 125 amp DIN rail circuit breaker that mounts on the standard 35mm DIN rail. This 125A C curve MCB features a visual trip indication window and is rated as a 10kA MCB. The NDB1-125 series of DIN rail mount circuit breakers is UL1077 Recognized. This 4 pole 125 amp DIN rail breaker has screw clamp wire terminations, utilizes a C Trip Curve and has a UL voltage rating of 480Vac. Optional accessories for this four pole 125 amp DIN rail breaker include an auxiliary contact, an alarm contact and a shunt release.
In Stock (1)
Specifications
| Amperage | 125 Amps |
| Poles | 4 |
| Trip Curve | C Trip Curve (Medium) |
| Breaker Mounting | 35mm DIN Rail |
