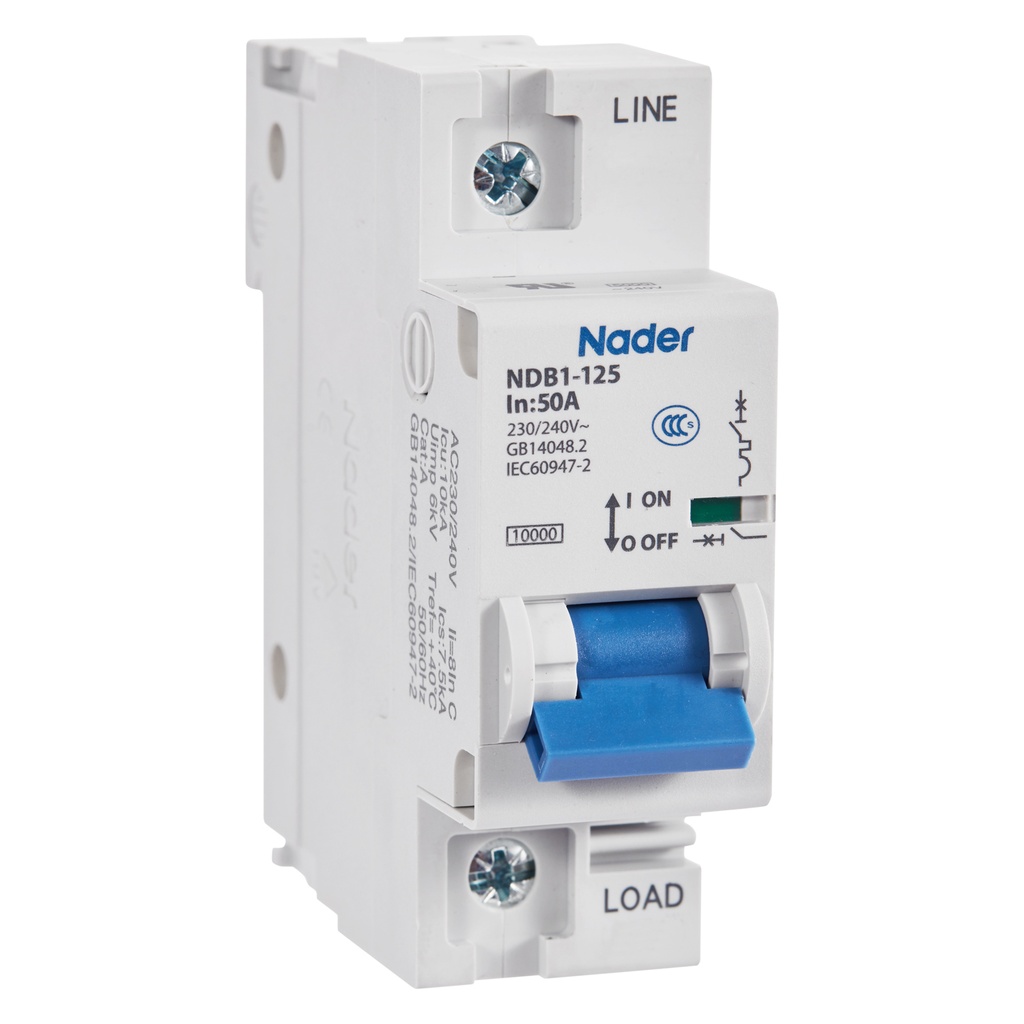

1 Pole, 50A, 240V AC, 60V DC, Trip Curve: C, DIN Rail Mount-Miniature Circuit Breaker, 18mm Width, UL1077

https://www.sourceasi.com/web/image/product.template/1354/image_1920?unique=8ab494a
SKU: NDB1-125C50-1

NDB1-125C50-1, a robust high-current single-pole 50 amp DIN rail circuit breaker designed for seamless integration onto the standard 35mm DIN rail. This C curve MCB (Miniature Circuit Breaker) is equipped with a visual trip indication window, offering clear insights into its operational status, and boasts a 10kA rating for enhanced reliability.

Part of the UL1077 Recognized NDB1-125 series, this DIN rail breaker ensures optimal performance and safety in a variety of applications. The screw clamp wire terminations facilitate easy and secure installation, while the C Trip Curve and UL voltage rating of 240Vac further enhance its versatility.

For added functionality, the NDB1-125C50-1 can be customized with optional accessories, including an auxiliary contact, an alarm contact, and a shunt release, providing tailored solutions to meet specific requirements. Choose reliability and performance with the NDB1-125C50-1, the ideal choice for high-current circuit protection in diverse applications.

In Stock (26)

17.08 17.080000000000002 USD 17.08

17.08

Not Available For Sale

/EACH

    This combination does not exist.

    Addtional Resources:
