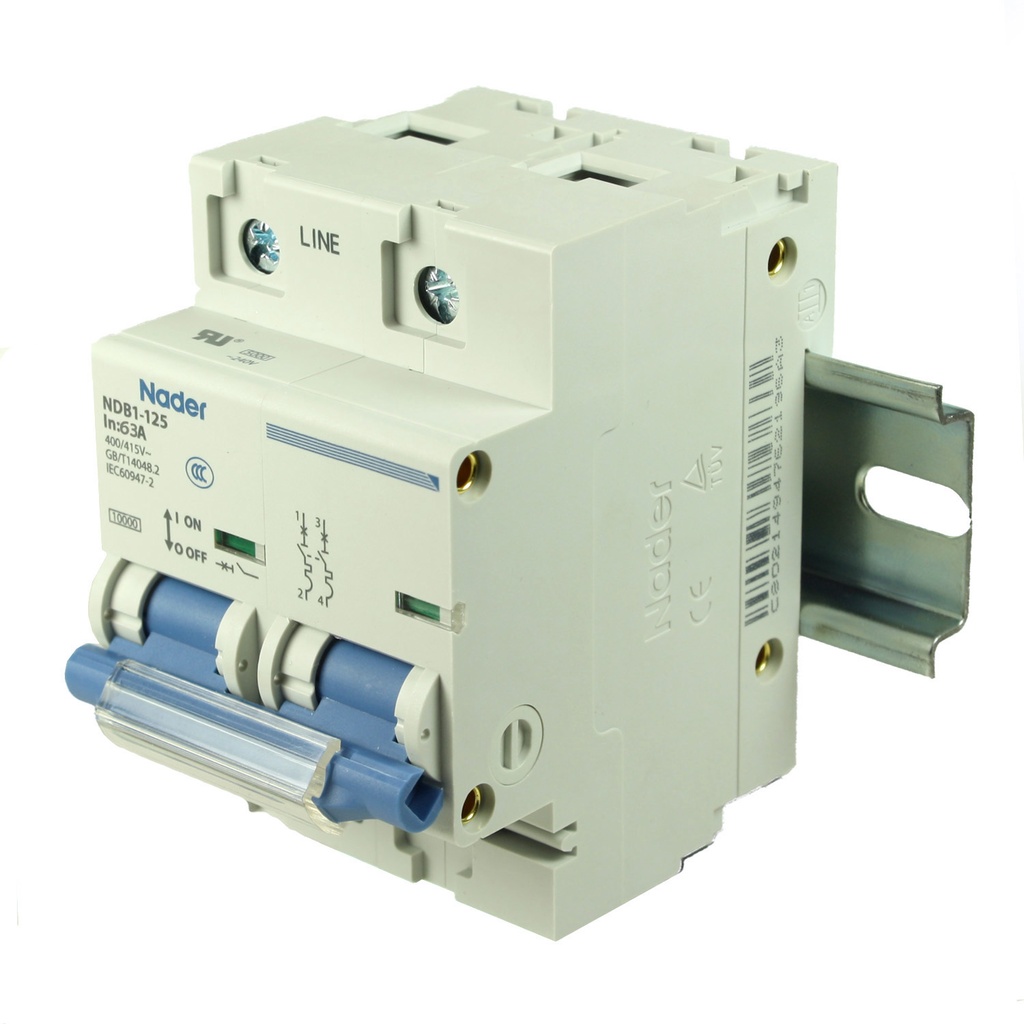

2 Pole, 63A, 480V AC, 60V DC, Trip Curve: C, DIN Rail Mount-Miniature Circuit Breaker, 36mm Width, UL1077

SKU: NDB1-125C63-2

The NDB1-125C63-2 is a high current two pole 63 amp DIN rail circuit breaker that mounts on the standard 35mm DIN rail. This 63A C curve MCB features a visual trip indication window and is rated as a 10kA MCB. The NDB1-125 series of DIN rail mount circuit breakers is UL1077 Recognized. This 2 pole 63 amp DIN rail breaker has screw clamp wire terminations, utilizes a C Trip Curve and has a UL voltage rating of 240Vac. Optional accessories for this two pole 63 amp DIN rail breaker include an auxiliary contact, an alarm contact and a shunt release.

44.53 44.53 USD 44.53


Not Available For Sale

  • Amperage

This combination does not exist.


Amperage 63 Amps
