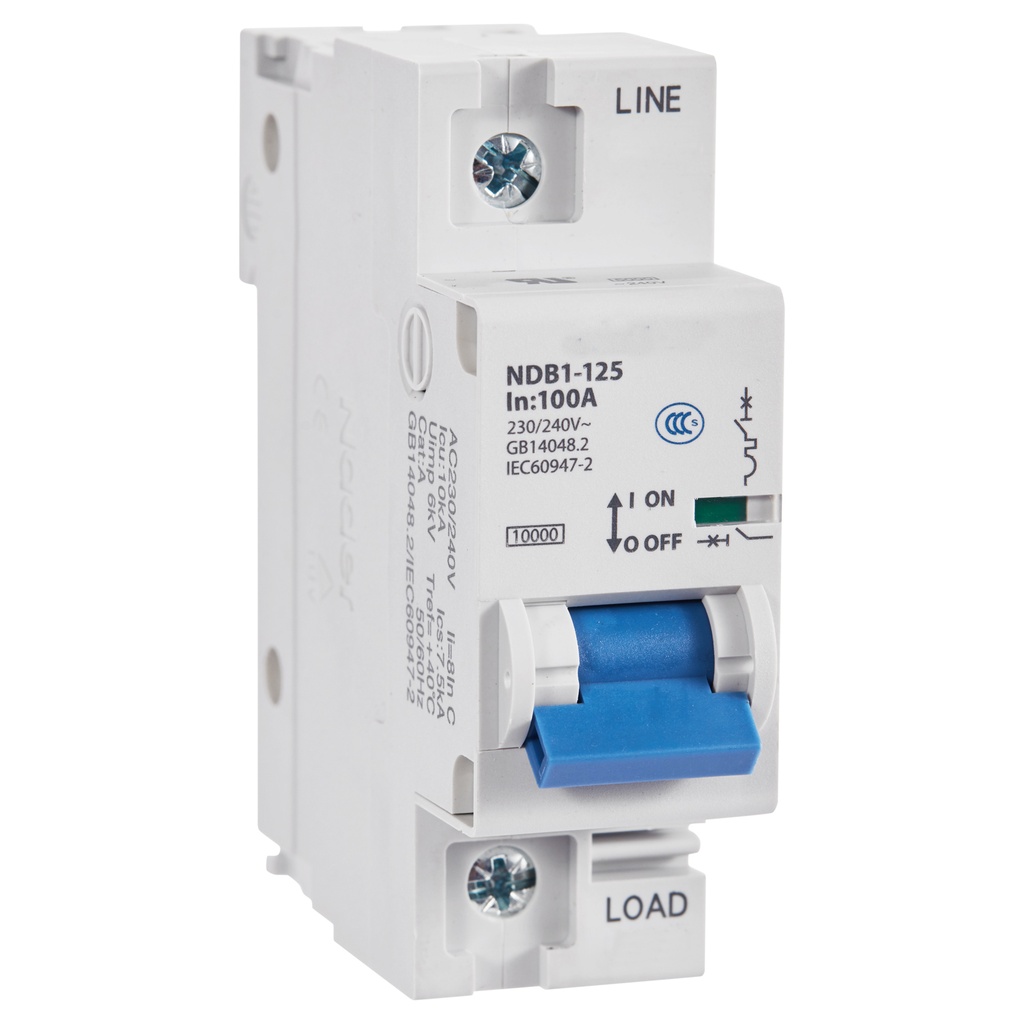

100 Amp, 1 Pole, 240V AC, 60V DC, Trip Curve: D, DIN Rail Mount-Miniature Circuit Breaker, UL1077

https://www.sourceasi.com/web/image/product.template/1363/image_1920?unique=d4064c0
SKU: NDB1-125D100-1

The NDB1-125D100-1 is a high current one pole 100 amp DIN rail circuit breaker that mounts on the standard 35mm DIN rail. This 100A D curve MCB features a visual trip indication window and is rated as a 10kA MCB. The NDB1-125 series of DIN rail mount circuit breakers is UL1077 Recognized. This 1 pole 100 amp DIN rail breaker has screw clamp wire terminations, utilizes a D Trip Curve and has a UL voltage rating of 240Vac. Optional accessories for this one pole 100 amp DIN rail breaker include an auxiliary contact, an alarm contact and a shunt release.

In Stock (120)

24.47 24.47 USD 24.47

24.47

Not Available For Sale

/EACH
