2 Pole, 100A, 480V AC, 60V DC, Trip Curve: C, DIN Rail Mount-Miniature Circuit Breaker, 36mm Width, UL1077

SKU: NDB1-125D100-2

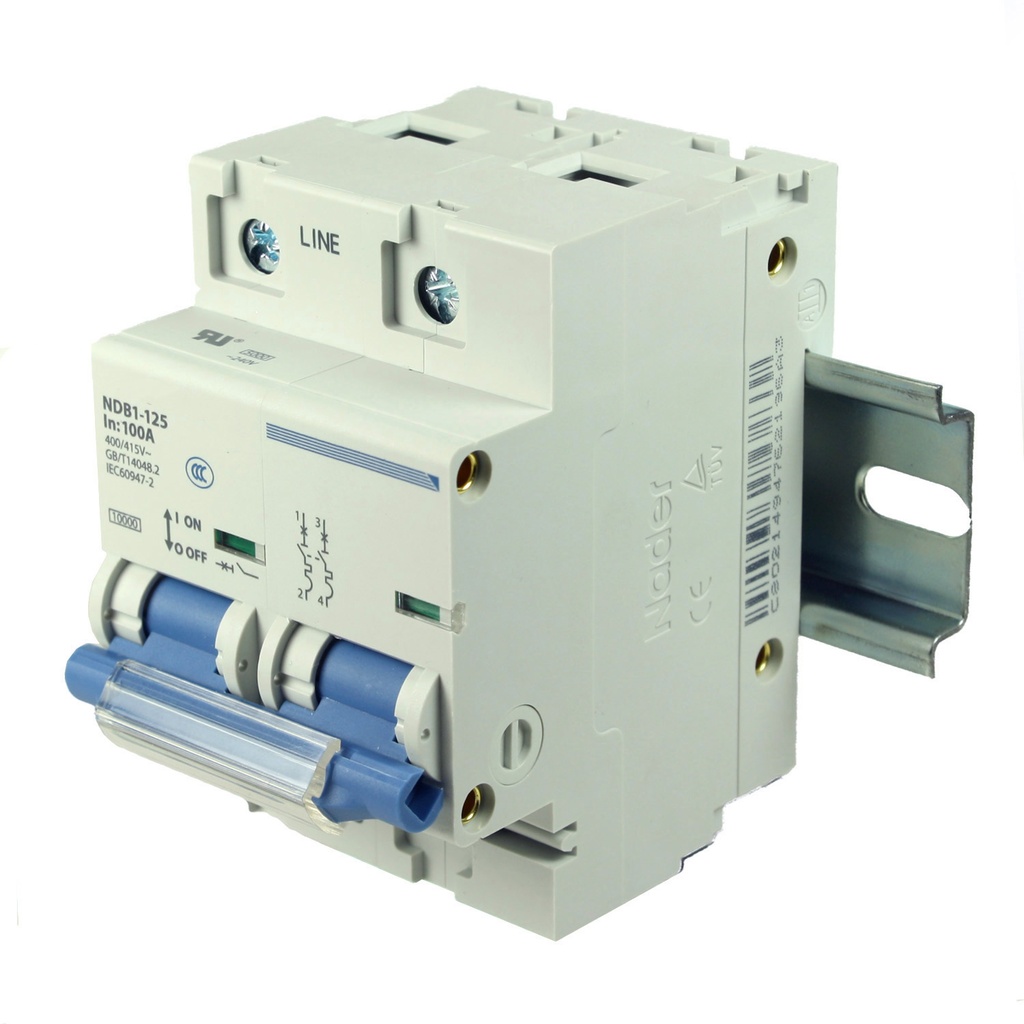

The NDB1-125D100-2 is a high current two pole 100 amp DIN rail circuit breaker that mounts on the standard 35mm DIN rail. This 100A D curve MCB features a visual trip indication window and is rated as a 10kA MCB. The NDB1-125 series of DIN rail mount circuit breakers is UL1077 Recognized. This 2 pole 100 amp DIN rail breaker has screw clamp wire terminations, utilizes a D Trip Curve and has a UL voltage rating of 240Vac. Optional accessories for this two pole 100 amp DIN rail breaker include an auxiliary contact, an alarm contact and a shunt release.

In Stock (2)

52.57 52.57 USD 52.57


Not Available For Sale

  • Poles
  • Voltage
  • Voltage
  • Amperage
  • Amperage
  • Trip Curve
  • UL

This combination does not exist.


Poles 2
Voltage 480V AC, 60V DC
Amperage 100 Amps, 100 Amps
Trip Curve C Trip Curve
UL UL 1077
