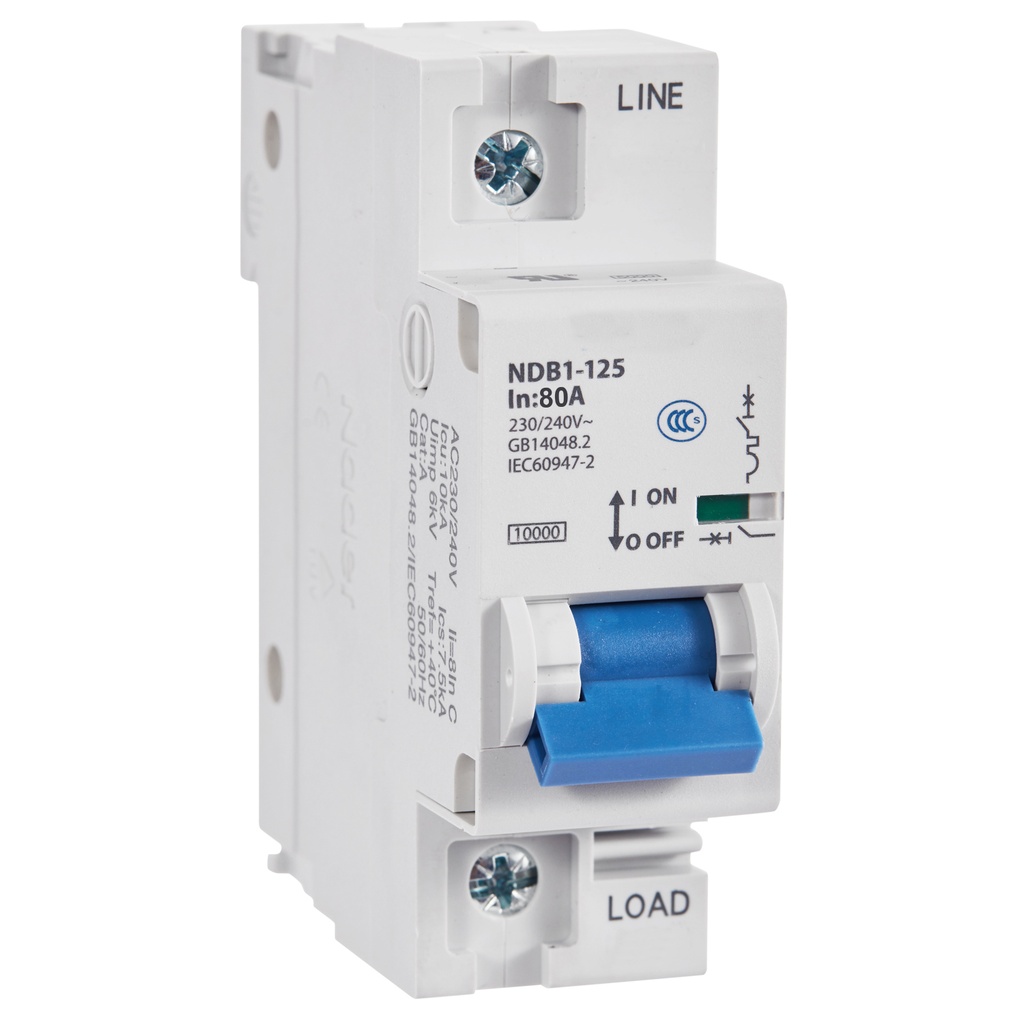

1 Pole, 80A, 240V AC, 60V DC, Trip Curve: D, DIN Rail Mount-Miniature Circuit Breaker, 18mm Width, UL1077

SKU: NDB1-125D80-1

The NDB1-125D80-1 is a high current one pole 80 amp DIN rail circuit breaker that mounts on the standard 35mm DIN rail. This 80A D curve MCB features a visual trip indication window and is rated as a 10kA MCB. The NDB1-125 series of DIN rail mount circuit breakers is UL1077 Recognized. This 1 pole 80 amp DIN rail breaker has screw clamp wire terminations, utilizes a D Trip Curve and has a UL voltage rating of 240Vac. Optional accessories for this one pole 80 amp DIN rail breaker include an auxiliary contact, an alarm contact and a shunt release.

In Stock (9)

20.64 20.64 USD 20.64


Not Available For Sale

  • Poles
  • Voltage
  • Voltage
  • Amperage
  • Amperage
  • Trip Curve

This combination does not exist.

Addtional Resources:


Poles 1
Voltage 240V AC, 60V DC
Amperage 80 Amps, 80 Amps
Trip Curve D Trip Curve
