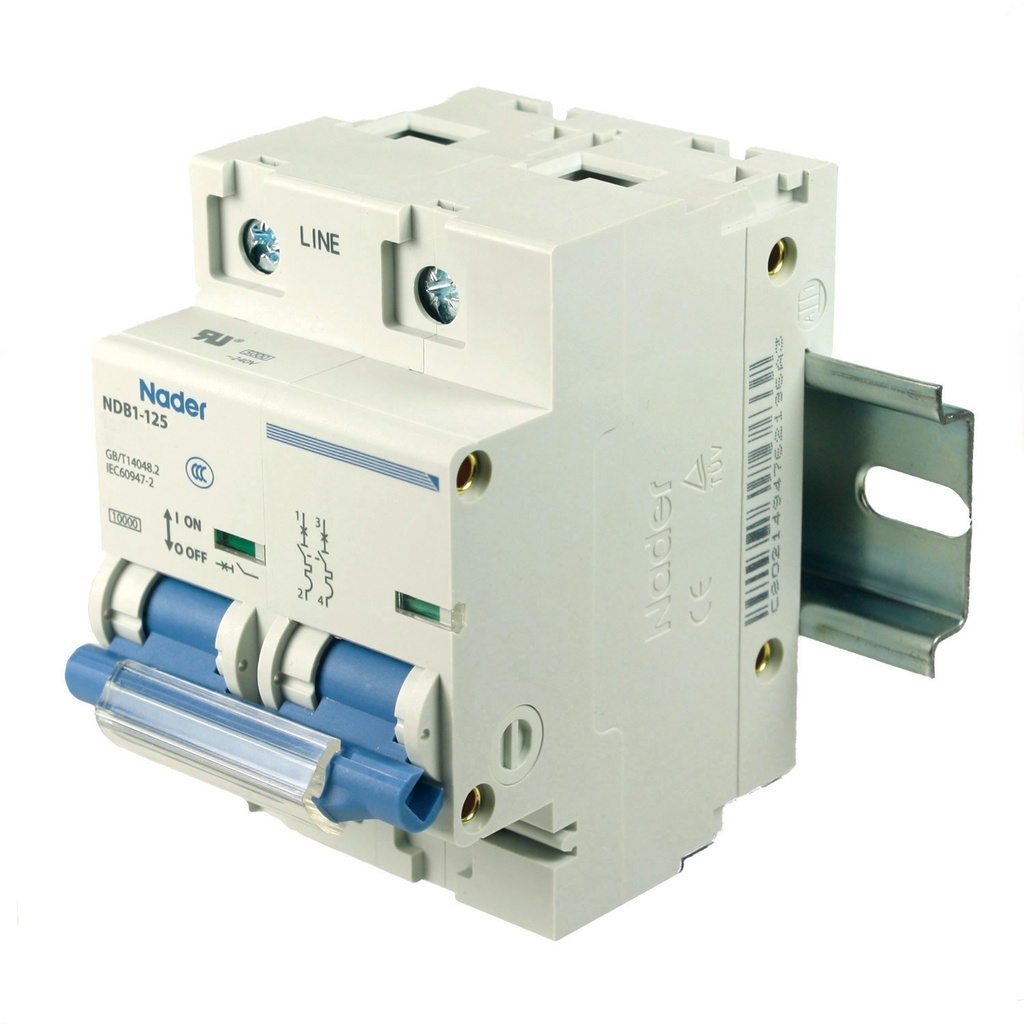

2 Pole, 80A, 240V AC, 60V DC, Trip Curve: D, DIN Rail Mount-Miniature Circuit Breaker, 35mm Width, UL1077

https://www.sourceasi.com/web/image/product.template/1373/image_1920?unique=0f32680
SKU: NDB1-125D80-2

The NDB1-125D80-2 is a high current two pole 80 amp DIN rail circuit breaker that mounts on the standard 35mm DIN rail. This 80A D curve MCB features a visual trip indication window and is rated as a 10kA MCB. The NDB1-125 series of DIN rail mount circuit breakers is UL1077 Recognized. This 2 pole 80 amp DIN rail breaker has screw clamp wire terminations, utilizes a D Trip Curve and has a UL voltage rating of 240Vac. Optional accessories for this two pole 80 amp DIN rail breaker include an auxiliary contact, an alarm contact and a shunt release.

Call for Availability

47.07 47.07 USD 47.07

47.07

Not Available For Sale

/Each
