32 Amp GFCI Breaker, DIN Rail Mount, 30mA Earth Leakage Limit, 1 Pole, 120V AC, C Trip Curve, UL1053

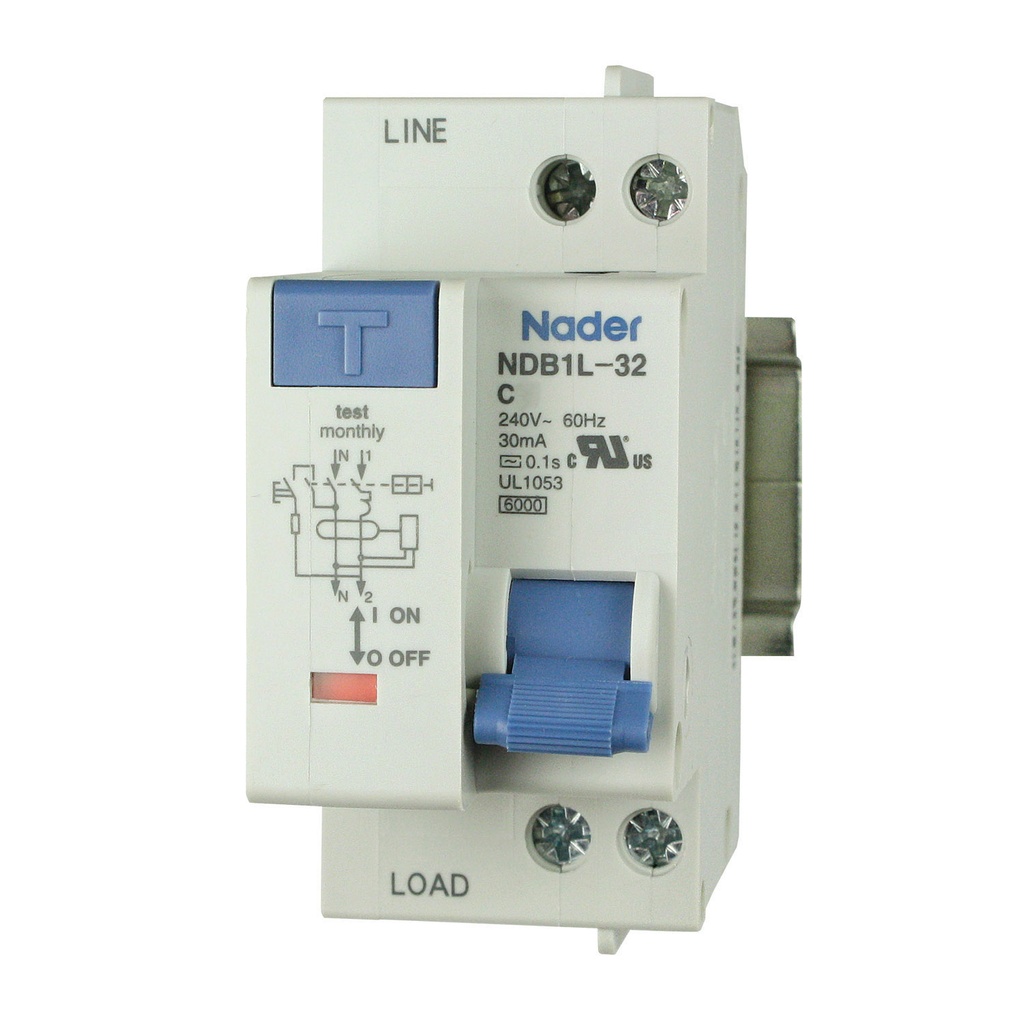

ASI NDB1L-32C-32-120V Ground Fault Circuit Breaker DIN Rail Mount, UL1053 recognized at 32 Amps at 120 V AC. This 32 Amp din rail mounted GFCI breaker, RCCB provides short circuit, overload protection and has a 30 mA earth leakage limit when reached safely opens the circuit and provides LED visual trip indication. This din rail GFCI breaker has a 4.5 Ka capacity. The NDB1L ground fault circuit breaker din rail mount series feature screw clamp wire terminations, a push to test button, and offers the general purpose C Trip Curve with an instantaneous trip from 5 In to 10 In.
|Trip Curve||C Trip Curve|
|Mounting Style||DIN Rail Mounted|
|Wire Range||16 - 8 AWG|
|Interrupting Capacity||4.5 kA|
|Circuit Breaker Type||Ground Fault, GFCI|
