1 Pole, 1A, 240V AC, 60V DC, Trip Curve: C, DIN Rail Mount-Miniature Circuit Breaker, 18mm Width, UL1077

https://www.sourceasi.com/web/image/product.template/1390/image_1920?unique=310394d
SKU: NDB2-63C1-1

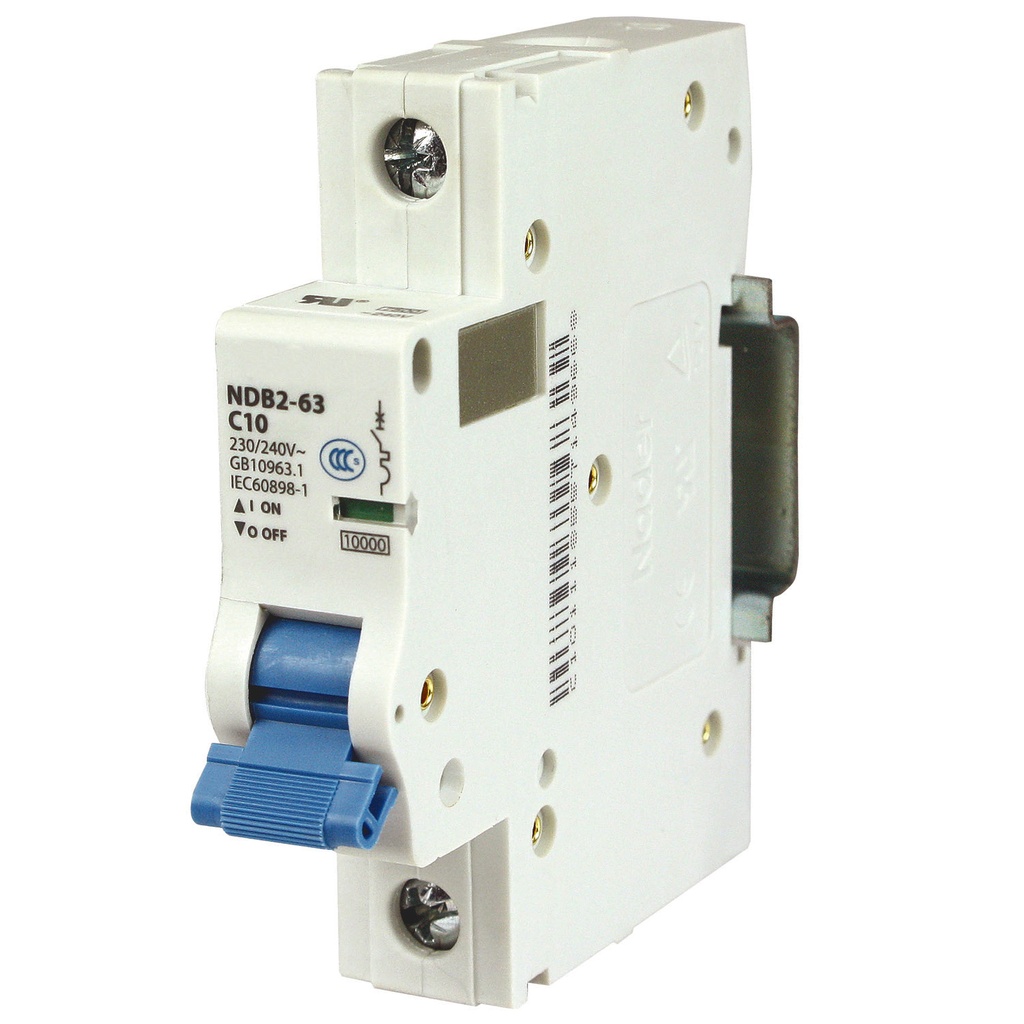

ASI NDB2-63C1-1 is a DIN rail circuit breaker, MCB mini circuit breaker, 1 amp MCB, one pole rated for UL1077 supplemental applications. This DIN rail breaker is a thermal magnetic MCB breaker used in 240 Vac and 60 Vdc circuits. Features include 18 mm wide foot print, DIN rail mounting, visual LED indication when tripped, C trip curve for typical inductive loads, overload and short circuit protection, easy to wire screw clamp MCB terminations, RoHS compliant, and superior 10kA interrupt capacity. Certificates and standards include UL1077, IEC60898-1, GB 10963.1 and UL1077,TUV, CE, CCC. NDB2-63C1-1 is a 1 amp MCB DIN rail circuit breaker.

In Stock (137)

10.96 10.96 USD 10.96

10.96

Not Available For Sale

/Each
  • Poles
  • Trip Curve
  • Wire Range

This combination does not exist.

Alternate Part Numbers: 1492-SPM1C010, S201-C1, TMC 71C 01A, 4230-T110K0CE-1A, 5SY4 101-7, MCB 1077 1P C 1A ACDC


Specifications

Poles 1
Trip Curve C Trip Curve
Wire Range 18 - 2 AWG
