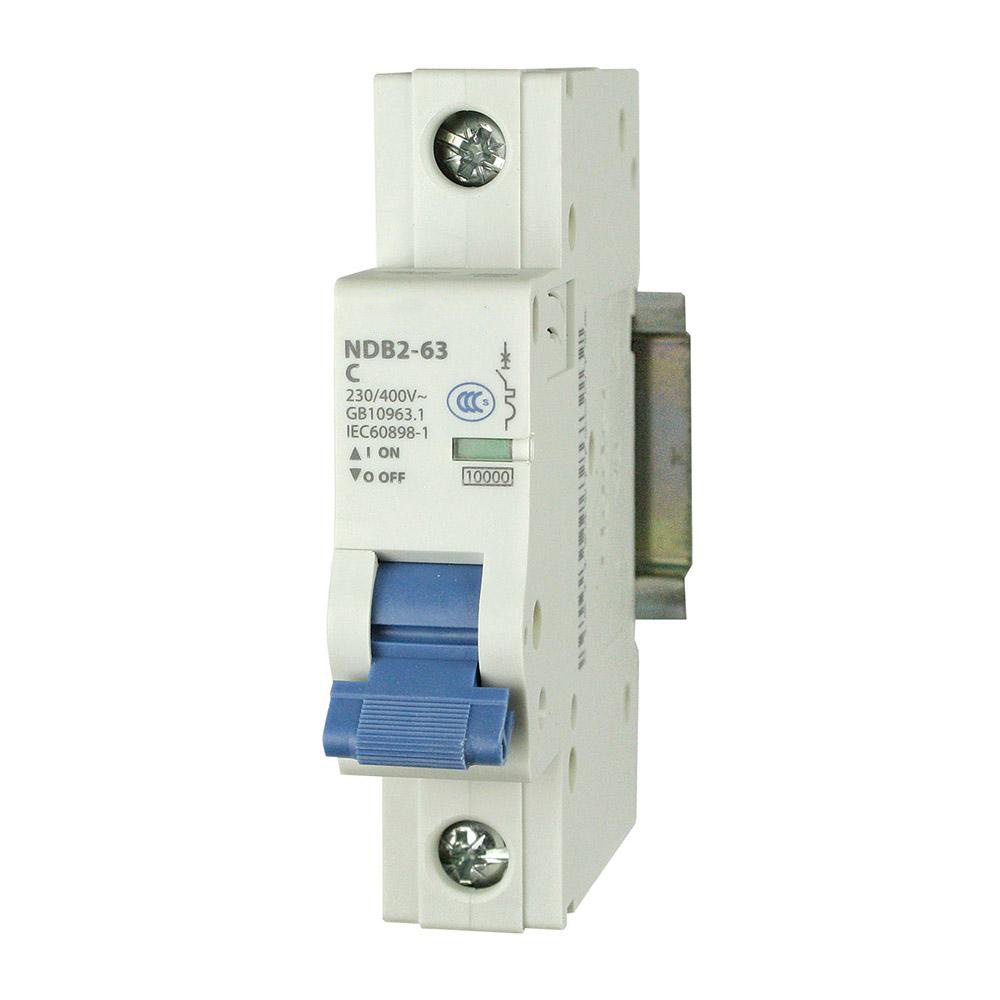

The NDB2-63C10-1 is a 1-pole, 10 amp thermal-magnetic miniature circuit breaker (MCB) rated for 240V AC and 60V DC circuits, with a 10kA interrupt capacity. It carries a C trip curve, suited to circuits with inductive inrush such as motors and transformers, and mounts to standard 35mm DIN rail in a compact 18mm footprint.
It provides supplemental overcurrent protection for control panels, power distribution assemblies, and general industrial and commercial electrical systems. A visual LED trip indicator shows breaker status at a glance, and screw clamp terminals simplify wiring and maintenance.
The breaker is certified to UL1077, IEC60898-1, and GB 10963.1, with TUV, CE, and CCC marks, and is RoHS compliant.
WHAT DOES THIS PRODUCT DO?
The NDB2-63C10-1 interrupts current automatically when a circuit is overloaded or short-circuited, protecting downstream wiring and equipment from damage while allowing manual on/off switching during normal operation.
WHAT PROBLEM DOES THIS SOLVE?
• Need for supplemental overcurrent protection on a DIN rail-mounted circuit
• Protecting motor or transformer circuits from inrush-related nuisance trips
• Quickly identifying a tripped circuit during troubleshooting
• Replacing a failed or incorrectly rated breaker in an existing panel
• Conserving panel space with a narrow breaker footprint
KEY FEATURES & BENEFITS
• 10A Rating for 240V AC and 60V DC Circuits
• C Trip Curve Suited to Motors, Transformers, and Inductive Loads
• Thermal-Magnetic Design for Combined Overload and Short-Circuit Protection
• 10kA Interrupt Capacity for Robust Fault Protection
• Visual LED Trip Indicator Speeds Up Fault Identification
• Compact 18mm Wide DIN Rail Footprint Conserves Panel Space
• Screw Clamp Terminations for Secure, Straightforward Wiring
• Certified to UL1077, IEC60898-1, and GB 10963.1
• RoHS Compliant
APPLICATIONS
• Industrial Control Panels
• Power Distribution Assemblies
• Motor and Transformer Circuit Protection
• Machine Building / OEM Equipment
• Commercial and Industrial Electrical Installations
WHY CHOOSE THIS PRODUCT?
The NDB2-63C10-1 combines a narrow 18mm DIN rail footprint with a 10kA interrupt rating, giving panel builders a compact breaker that still holds up under significant fault conditions. Its C trip curve is matched to the inrush behavior of motors and transformers, reducing nuisance tripping compared to a general-purpose B curve breaker in those applications.
The built-in LED trip indicator lets maintenance technicians identify a tripped breaker without opening a panel schematic, and screw clamp terminals keep field wiring and servicing straightforward.
AVAILABILITY
Stocked in Pennsylvania, USA. Fast shipping and technical product support available from ASI.
