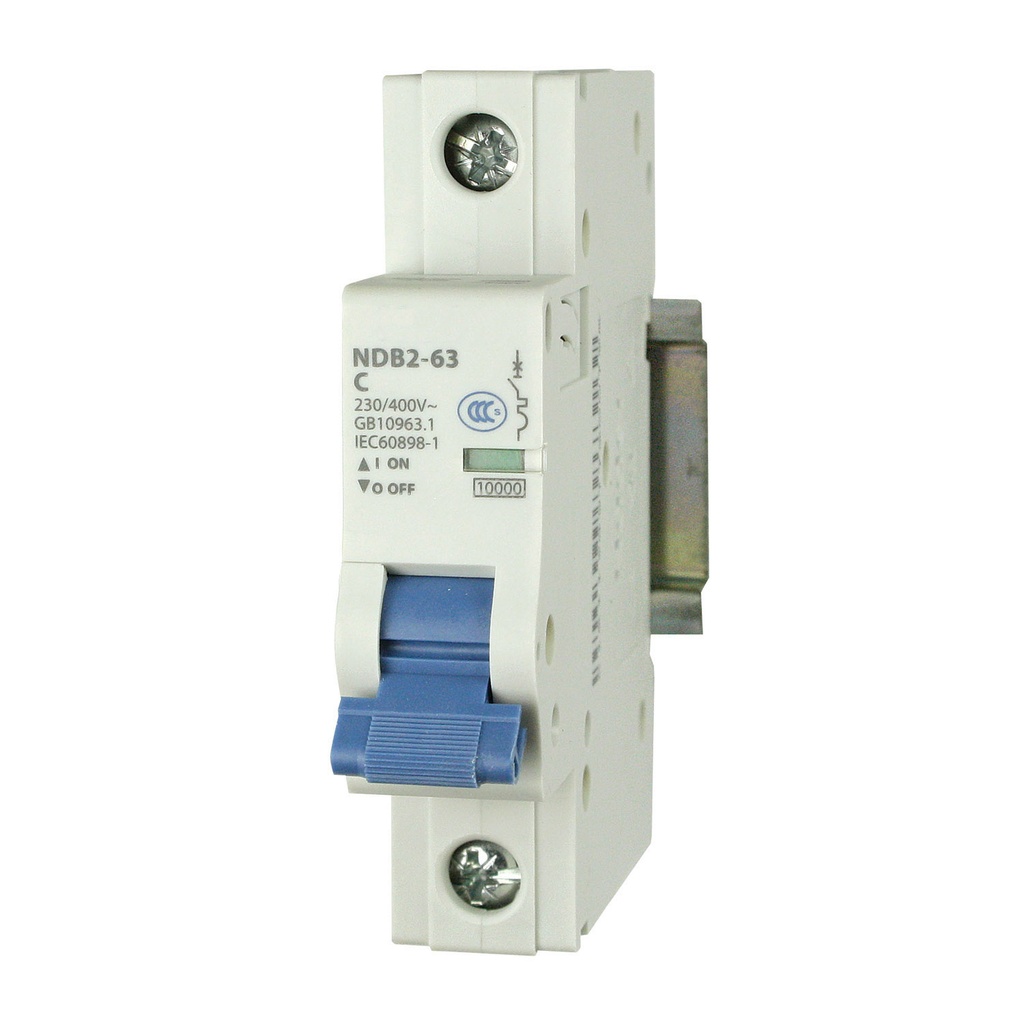

1 Pole, 16A, 240V AC, 60V DC, Trip Curve: C, DIN Rail Mount-Miniature Circuit Breaker, 18mm Width, UL1077

https://www.sourceasi.com/web/image/product.template/1393/image_1920?unique=64b0edd
SKU: NDB2-63C16-1

ASI NDB2-63C16-1 one pole 16 Amp MCB DIN rail circuit breaker, MCB mini circuit breaker, rated for UL1077 supplemental applications. This DIN rail breaker is a thermal magnetic MCB breaker used in 240V AC and 60V DC circuits. Features include 18 mm wide footprint, DIN rail mounting, a visual LED indication when tripped, C trip curve for typical inductive loads, overload and short-circuit protection, easy to wire screw clamp MCB terminations, RoHS compliant, and superior 10kA interrupt capacity. Certificates and standards include UL1077, IEC60898-1, GB 10963.1 and UL1077,TUV, CE, CCC. NDB2-63C16-1 is a 16 amp MCB DIN rail circuit breaker.

In Stock (226)

8.34 8.34 USD 8.34

8.34

Not Available For Sale

/Each
  • Poles
  • Voltage
  • Voltage
  • Amperage
  • Trip Curve
  • Mounting Style
  • Wire Range
  • Width
  • UL
  • Interrupting Capacity
  • Circuit Breaker Type

This combination does not exist.

Alternate Part Numbers: 1492-SPM1C160, S201-C16


Specifications

Poles 1
Voltage 240V AC, 60V DC
Amperage 16 Amps
Trip Curve C Trip Curve
Mounting Style DIN Rail Mounted
Wire Range 18 - 2 AWG
Width 18 mm
UL UL 1077
Interrupting Capacity 10 kA
Circuit Breaker Type Thermal Magnetic
