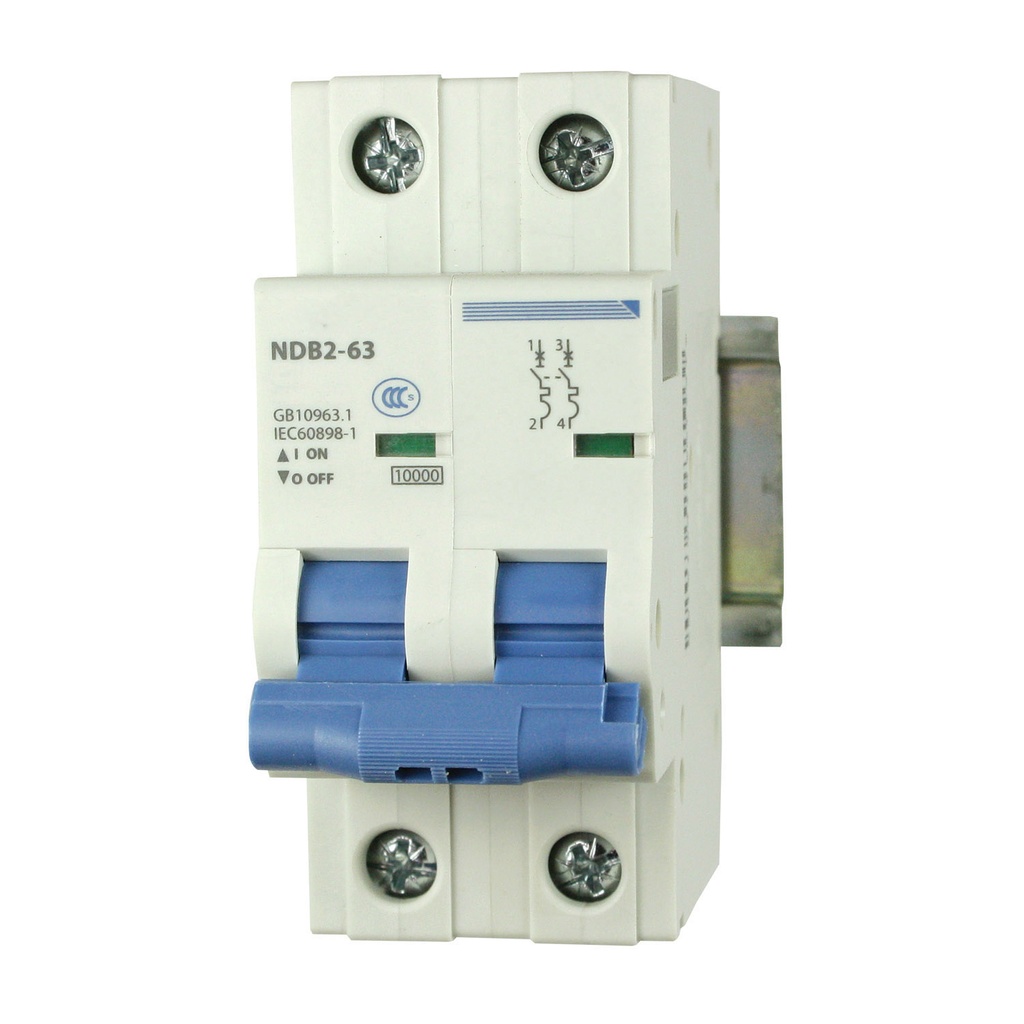

16 Amp, 2 Pole, 480V AC, 125 V DC, Trip Curve: C, DIN Rail Mount-Miniature Circuit Breaker, UL1077

https://www.sourceasi.com/web/image/product.template/1394/image_1920?unique=897633f
SKU: NDB2-63C16-2

ASI NDB2-63C16-2 is a DIN rail circuit breaker, MCB mini circuit breaker, 16 amp MCB, two pole rated for UL1077 supplemental applications. This DIN rail breaker is a thermal magnetic MCB breaker used in 480 V AC and 125 V DC circuits. Features for this two pole circuit breaker include 36 mm wide foot print, DIN rail mounting, visual LED indication when tripped, C trip curve for typical inductive loads, overload and short circuit protection, easy to wire screw clamp MCB terminations, RoHS compliant, and superior 10kA interrupt capacity. Certificates and standards include UL1077, IEC60898-1, GB 10963.1 and UL1077,TUV, CE, CCC. NDB2-63C16-2 is a 16 amp MCB DIN rail circuit breaker.

In Stock (39)

19.17 19.17 USD 19.17

19.17

Not Available For Sale

/EACH

    This combination does not exist.

    Competitive Part Numbers: 1492-SPM2C160, S202-C16
