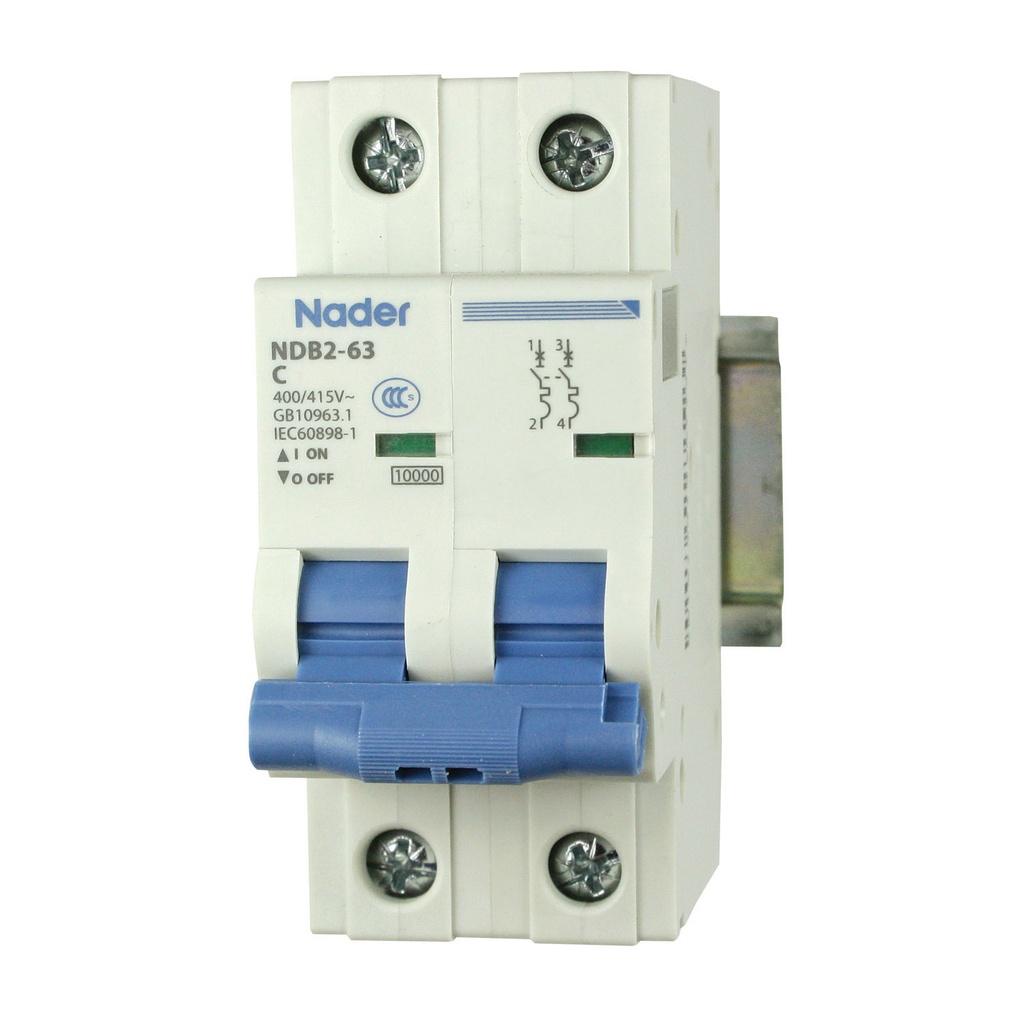

2 Pole, 40A, 480V AC, Trip Curve: C, DIN Rail Mount-Miniature Circuit Breaker, 36mm Width, UL1077

https://www.sourceasi.com/web/image/product.template/1409/image_1920?unique=c6a1732
SKU: NDB2-63C40-2

ASI NDB2-63C40-2 is a DIN rail circuit breaker, MCB mini circuit breaker, 40 amp MCB, two pole rated for UL1077 supplemental applications. This DIN rail breaker is a thermal magnetic MCB breaker used in 480 Vac and 125 Vdc circuits. Features for this two pole circuit breaker include 36 mm wide foot print, DIN rail mounting, visual LED indication when tripped, C trip curve for typical inductive loads, overload and short circuit protection, easy to wire screw clamp MCB terminations, RoHS compliant, and superior 10kA interrupt capacity. Certificates and standards include UL1077, IEC60898-1, GB 10963.1 and UL1077,TUV, CE, CCC. NDB2-63C40-2 is a 40 amp MCB DIN rail circuit breaker.

20.20 20.2 USD 20.20

20.20

Not Available For Sale

/Each
  • Poles
  • Voltage
  • Amperage
  • Trip Curve
  • Mounting Style
  • Width
  • UL

This combination does not exist.

Alternate Part Numbers: 1492-SPM2C400, S202-C40


Specifications

Poles 2
Voltage 480V AC
Amperage 40 Amps
Trip Curve C Trip Curve
Mounting Style Mini Din Rail Mount
Width 36 mm
UL UL 1077
