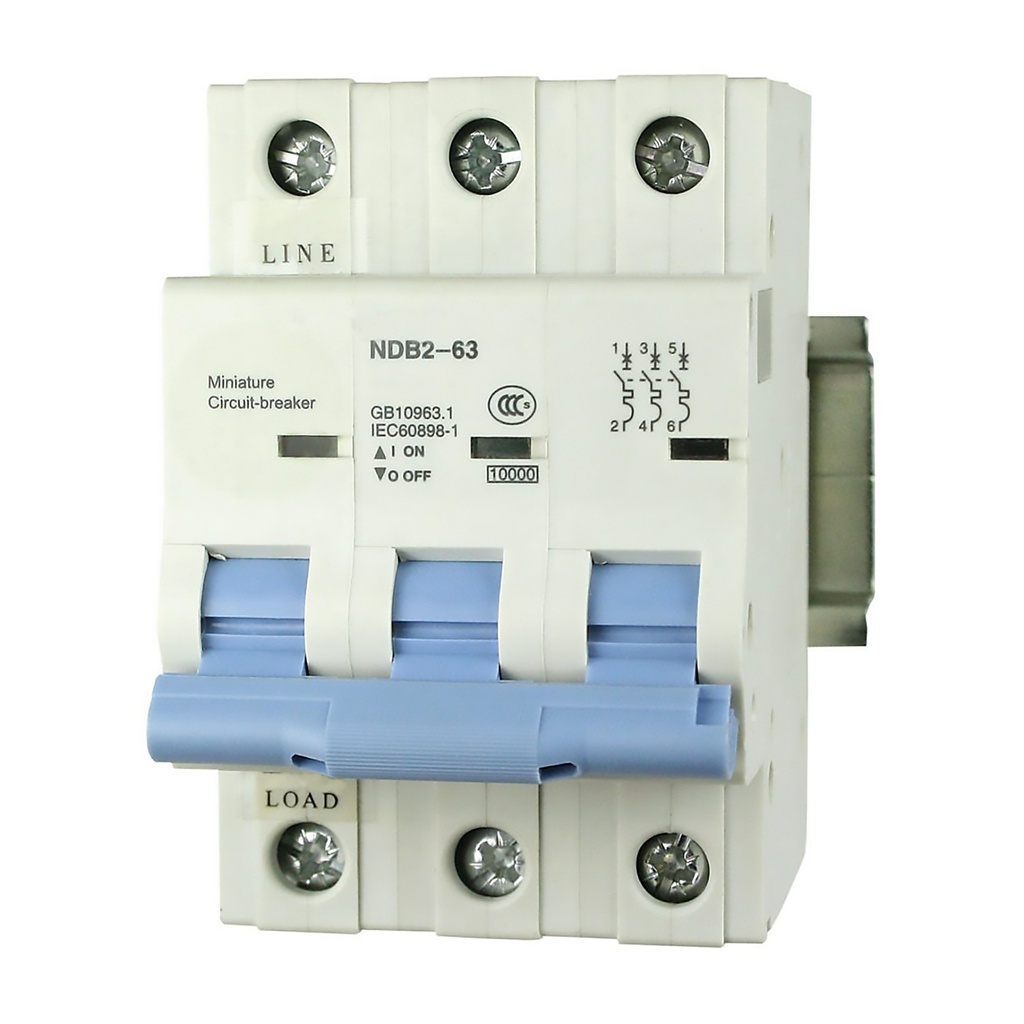

3 Pole, 63A, 480V AC, Trip Curve: C, DIN Rail Mount-Miniature Circuit Breaker, 52mm Width, UL1077
ASI NDB2-63C63-3 is a DIN rail circuit breaker, MCB mini circuit breaker, 63 amp MCB, three pole rated for UL1077 supplemental applications. This DIN rail breaker is a thermal magnetic MCB breaker used in 480V AC circuits. Features include 54 mm wide foot print, DIN rail mounting, visual LED indication when tripped, C trip curve for typical inductive loads, overload and short circuit protection, easy to wire screw clamp MCB terminations, RoHS compliant, and superior 10kA interrupt capacity. Certificates and standards include UL1077, IEC60898-1, GB 10963.1 and UL1077,TUV, CE, CCC. NDB2-63C60-3 is a 63 amp MCB DIN rail circuit breaker.
|Trip Curve||C Trip Curve|
|Mounting Style||DIN Rail Mounted|
|Wire Range||16 - 2 AWG|
|Interrupting Capacity||10 kA|
|Circuit Breaker Type||Thermal Magnetic, Miniature|
|Agency Approvals||UL1077, IEC60898-1, GB 10963.1 and UL1077, TUV, CE, CCC|
