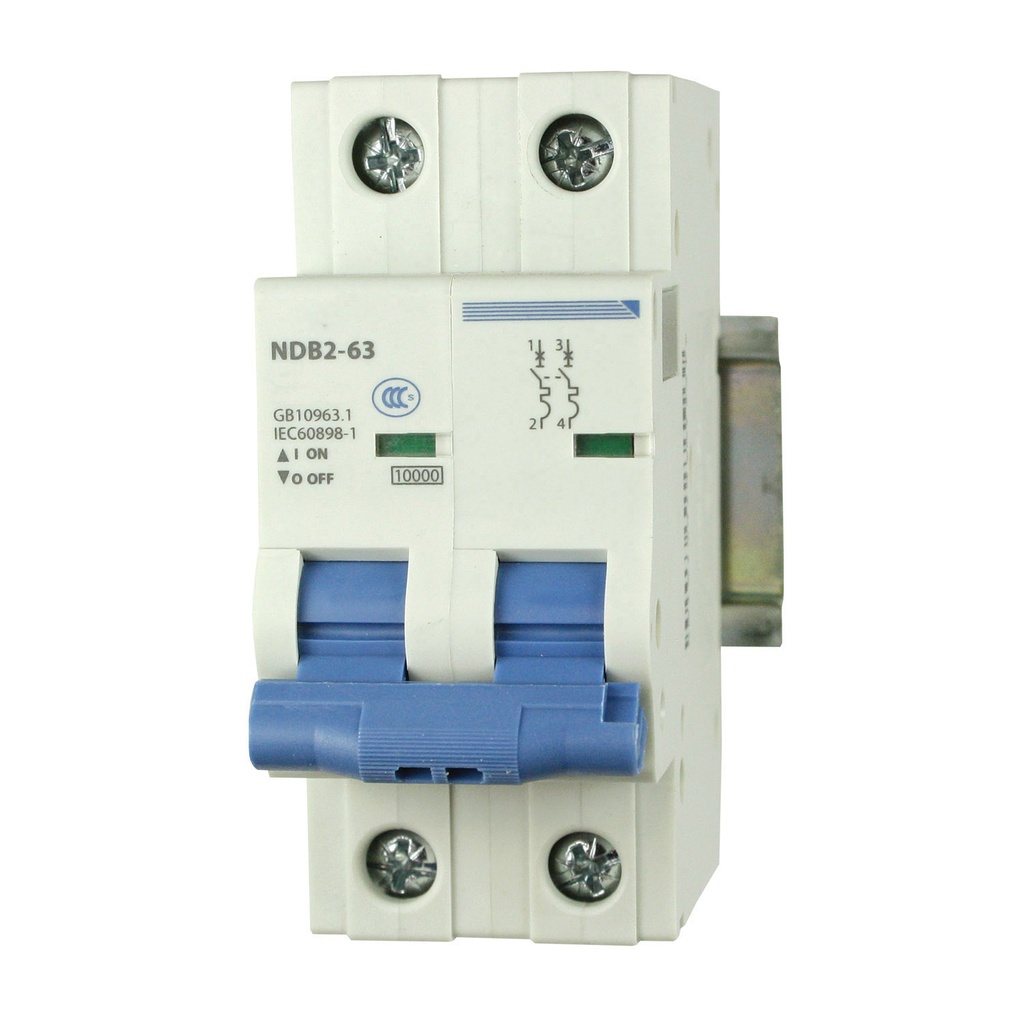

2 Pole, 16A, 240V AC, 60V DC, Trip Curve: D, DIN Rail Mount-Miniature Circuit Breaker, 35mm Width, UL1077
ASI NDB2-63D16-2 is a DIN rail circuit breaker, MCB mini circuit breaker, 16 amp MCB, two pole rated for UL1077 supplemental applications. This DIN rail breaker is a thermal magnetic MCB breaker used in 480 Vac and 125 Vdc circuits. Features for this two pole circuit breaker include 36 mm wide foot print, DIN rail mounting, visual LED indication when tripped, D trip curve for highly inductive loads, overload and short circuit protection, easy to wire screw clamp MCB terminations, RoHS compliant, and superior 10kA interrupt capacity. Certificates and standards include UL1077, IEC60898-1, GB 10963.1 and UL1077,TUV, CE, CCC. NDB2-63D16-2 is a 16 amp MCB DIN rail circuit breaker.
|Voltage||240V AC, 60V DC|
|Trip Curve||D Trip Curve|
|Mounting Style||DIN Rail Mounted|
|Circuit Breaker Type||Thermal Magnetic|
