3 Pole, 63A, 240V AC, 60V DC, Trip Curve: D, DIN Rail Mount-Miniature Circuit Breaker, 54mm Width, UL1077

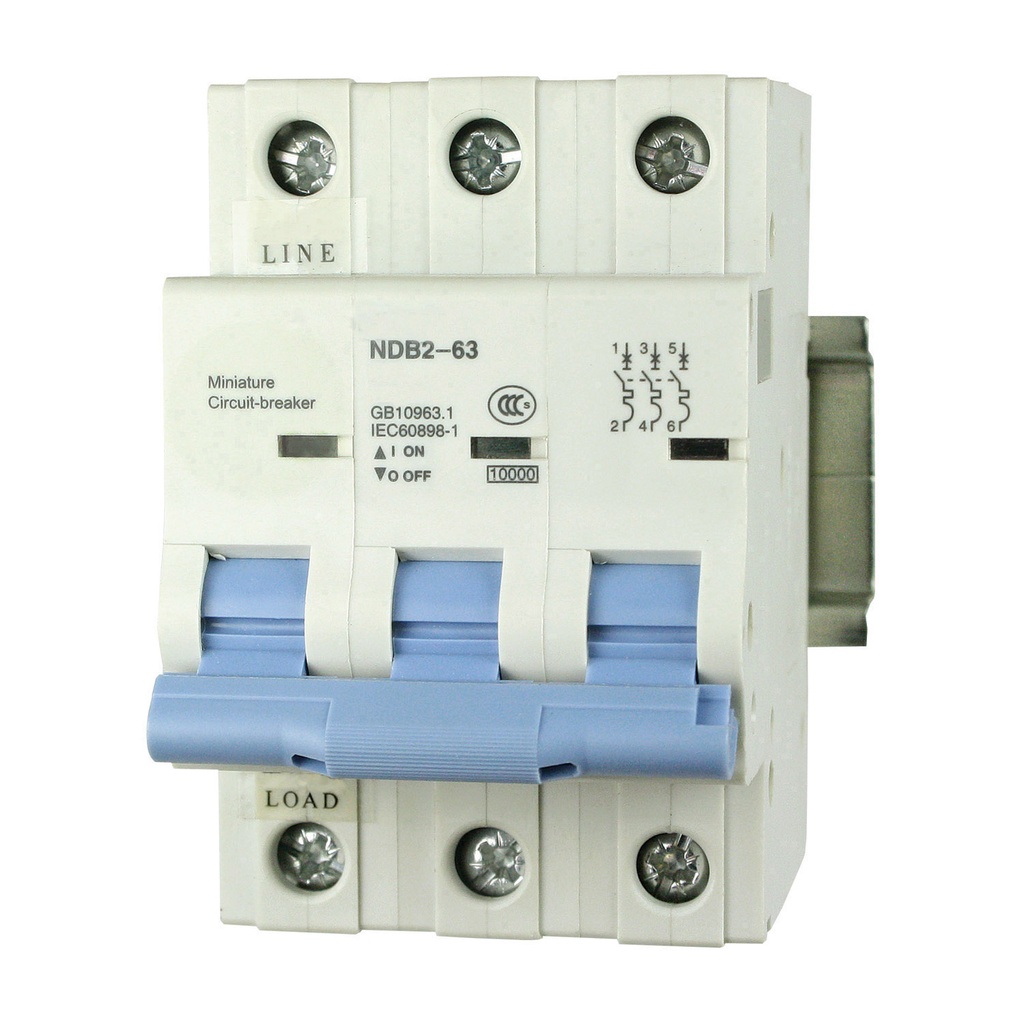

ASI NDB2-63D63-3 is a DIN rail circuit breaker, MCB mini circuit breaker, 63 amp, three pole rated for UL1077 supplemental applications. This DIN rail breaker is a thermal magnetic MCB breaker used in 480 Vac circuits. Features include 54 mm wide foot print, DIN rail mounting, visual LED indication when tripped, D trip curve for highly inductive loads, overload and short circuit protection, easy to wire screw clamp terminations, RoHS compliant, and superior 10kA interrupt capacity. Certificates and standards include UL1077, IEC60898-1, GB 10963.1 and UL1077,TUV, CE, CCC. NDB2-63D60-3 is a 63 amp DIN rail circuit breaker.
|Trip Curve||D Trip Curve|
|Mounting Style||DIN Rail Mounted|
|Wire Range||16 - 2 AWG|
|Interrupting Capacity||10 kA|
|Circuit Breaker Type||Thermal Magnetic, Miniature|
