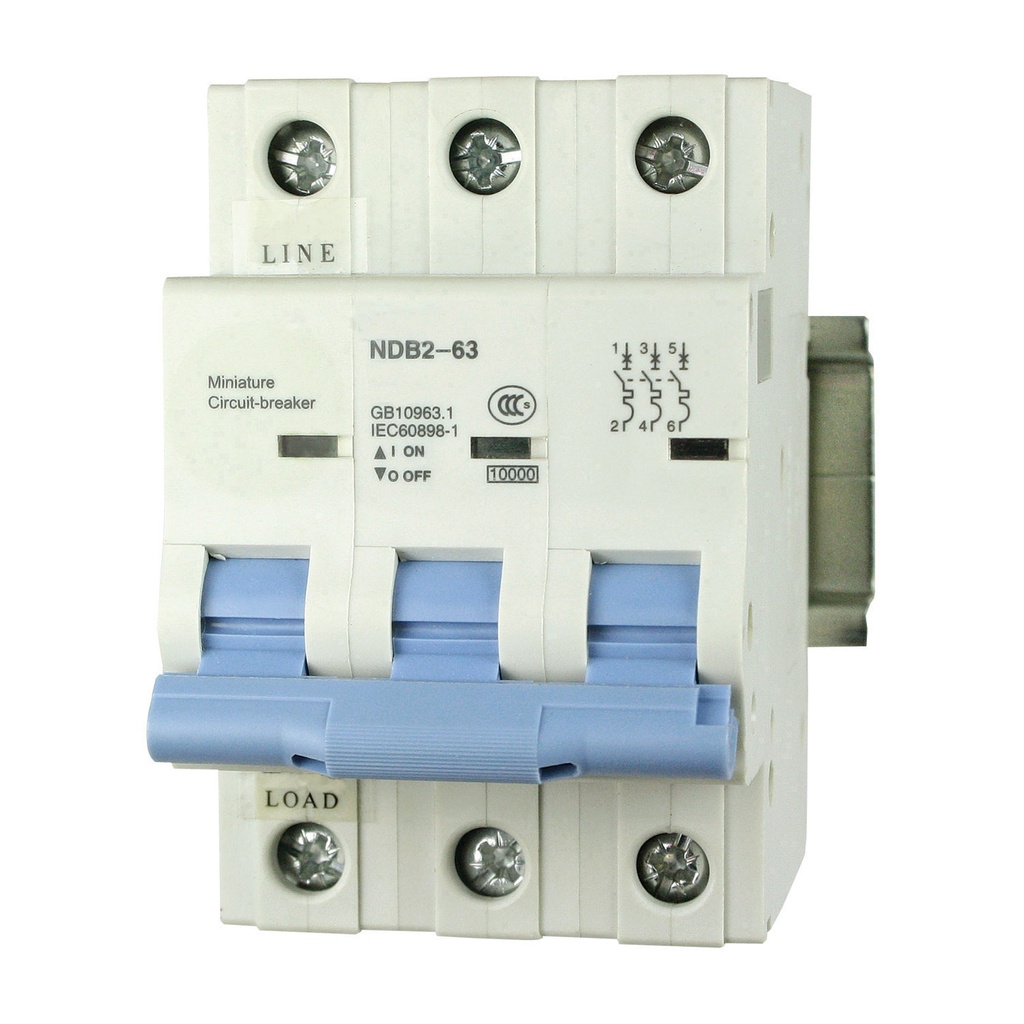

63 Amp, 3 Pole, 480V AC, Trip Curve: D, DIN Rail Mount-Miniature Circuit Breaker, UL1077
SKU: NDB2-63D63-3
ASI NDB2-63D63-3 is a DIN rail circuit breaker, MCB mini circuit breaker, 63 amp, three pole rated for UL1077 supplemental applications. This DIN rail breaker is a thermal magnetic MCB breaker used in 480 V AC circuits. Features include 54 mm wide foot print, DIN rail mounting, visual LED indication when tripped, D trip curve for highly inductive loads, overload and short circuit protection, easy to wire screw clamp terminations, RoHS compliant, and superior 10kA interrupt capacity. Certificates and standards include UL1077, IEC60898-1, GB 10963.1 and UL1077,TUV, CE, CCC. NDB2-63D60-3 is a 63 amp DIN rail circuit breaker.
In Stock (19)
Specifications
| Amperage | 63 Amps |
| Poles | 3 |
| Trip Curve | D Trip Curve (Long) |
| Breaker Voltage | 480V AC |
| Breaker Mounting | 35mm DIN Rail |
