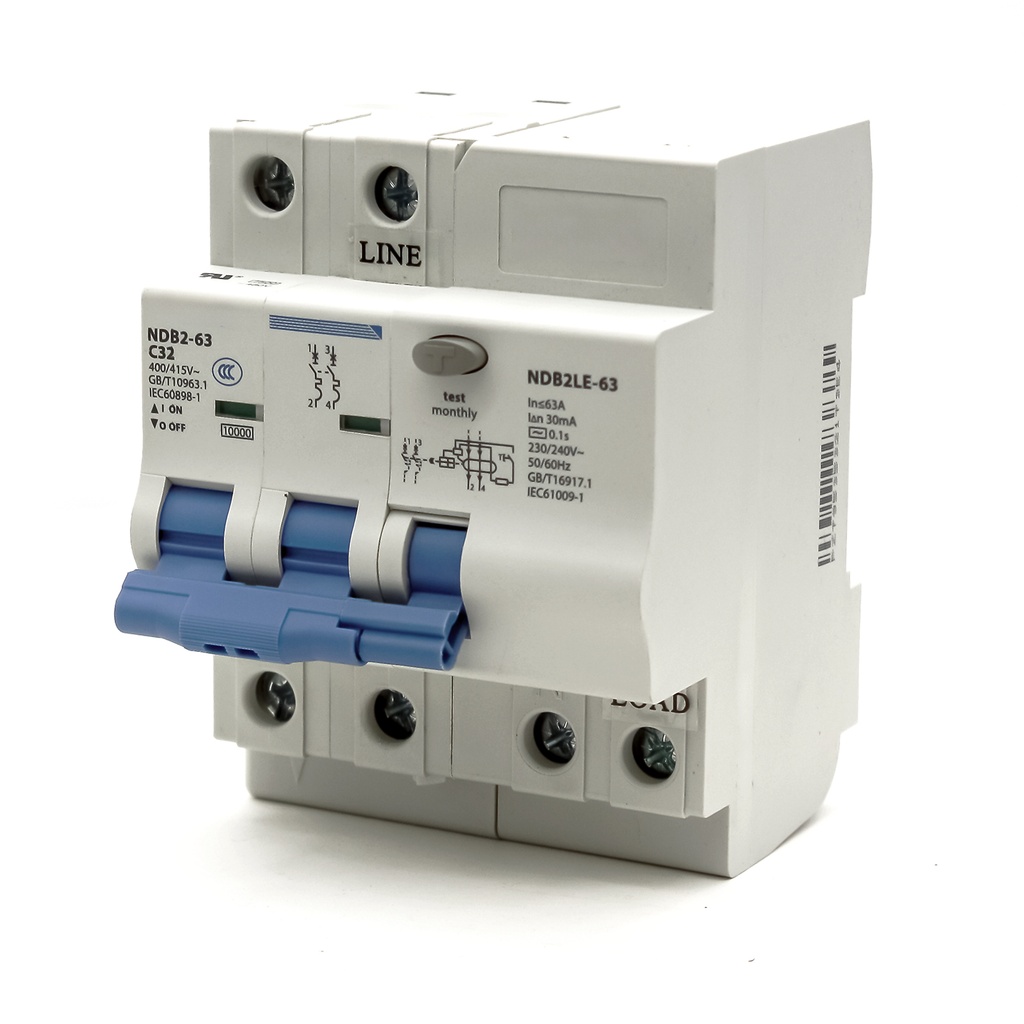

Mini Circuit Breaker | 32A C Curve 400/415VAC 80VDC 10kAIC | DIN Rail Mount | Non Polarized | MCB Branch Circuit Protection | 2P + N | NDB2LE-63C32-2 (2 Pole, C Trip, 32 Amp)

NDB2LE-63 series residual current unit clipped onto the right side of NDB2-63 series MCBs to protection against earth leakage faults which is used in low voltage electrical distribution system in industrial applications.

Features of NDB2LE-63 Series
- Protection against short circuit
- Protection against overload
- earth leakage Protection
- Isolation

Technology data of NDB2LE-63 Series
- Rated working voltage: AC230/240V(1P+N, 2P) AC380/400/415V(3P, 3P+N)
Rated working frequency: 50/60Hz
Rated current: 1A,2A,4A,6A,10A,16A,20A,25A,32A,40A,50A,63A
Breaking capacity: 10kA
Rated residual operating current: 30mA、50mA、100mA、300mA
Rated residual operating time: ≤0.1s
Rated residual making and breaking capacity(I△m): 600A

Mechanical & Electrical life:10000 times
