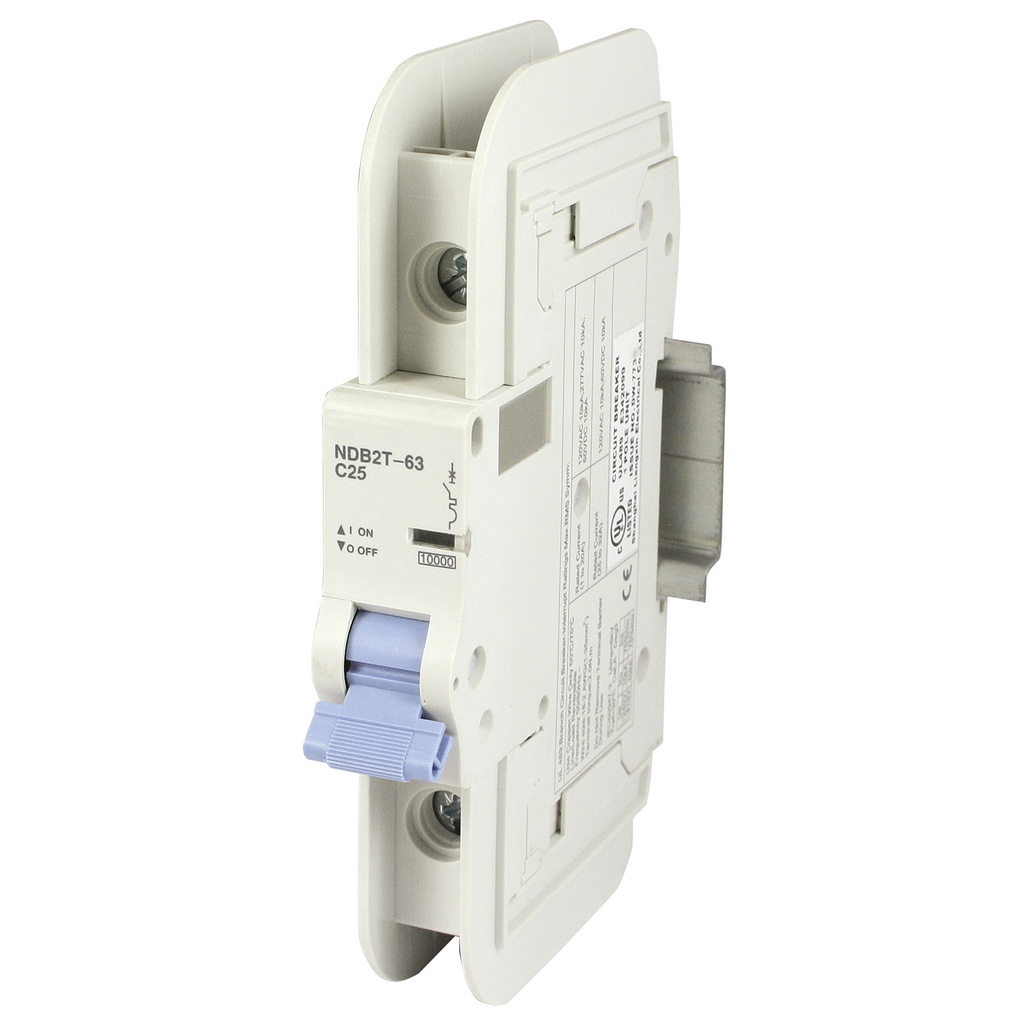

Mini Circuit Breaker | UL489 Listed | 25A C Curve 120/277VAC 60VDC 10kAIC | DIN Rail Mount | Non Polarized | MCB Branch Circuit Protection | NDB2T-63C25-1L (1 Pole, C Trip, 25 Amp)
SKU: NDB2T-63C25-1L
ASI NDB2T-63C25-1L is a UL489 DIN rail miniature circuit breaker, 25 Amp, 240 Vac/60 Vdc, single pole. It is a din rail mounted thermal magnetic MCB that is factory tested 300% to guarantee quality and reliability. The MCB mini circuit breaker features visual trip indication, easy to wire screw clamp connections and mounts on the industry standard 35 mm DIN rail. The NDB2T UL489 DIN rail circuit breaker series of circuit breakers can be used in most industrial applications and are an ideal drop-in replacement to existing branch circuit breakers. The NDB2T-63C25-1L uses the general purpose C curve trip characteristics.
In Stock (13)
Cross-referenced as: 1489-A1C250, S201U-C25, SU201M-C25
Specifications
| Circuit Breakers | |
|---|---|
| Breaker Voltage | 120/277V AC / 60V DC |
| Trip Curve | C Trip Curve (Medium) |
| Others | |
|---|---|
| Amperage | 25 Amps |
| Poles | 1 |
| UL | UL 489 |
