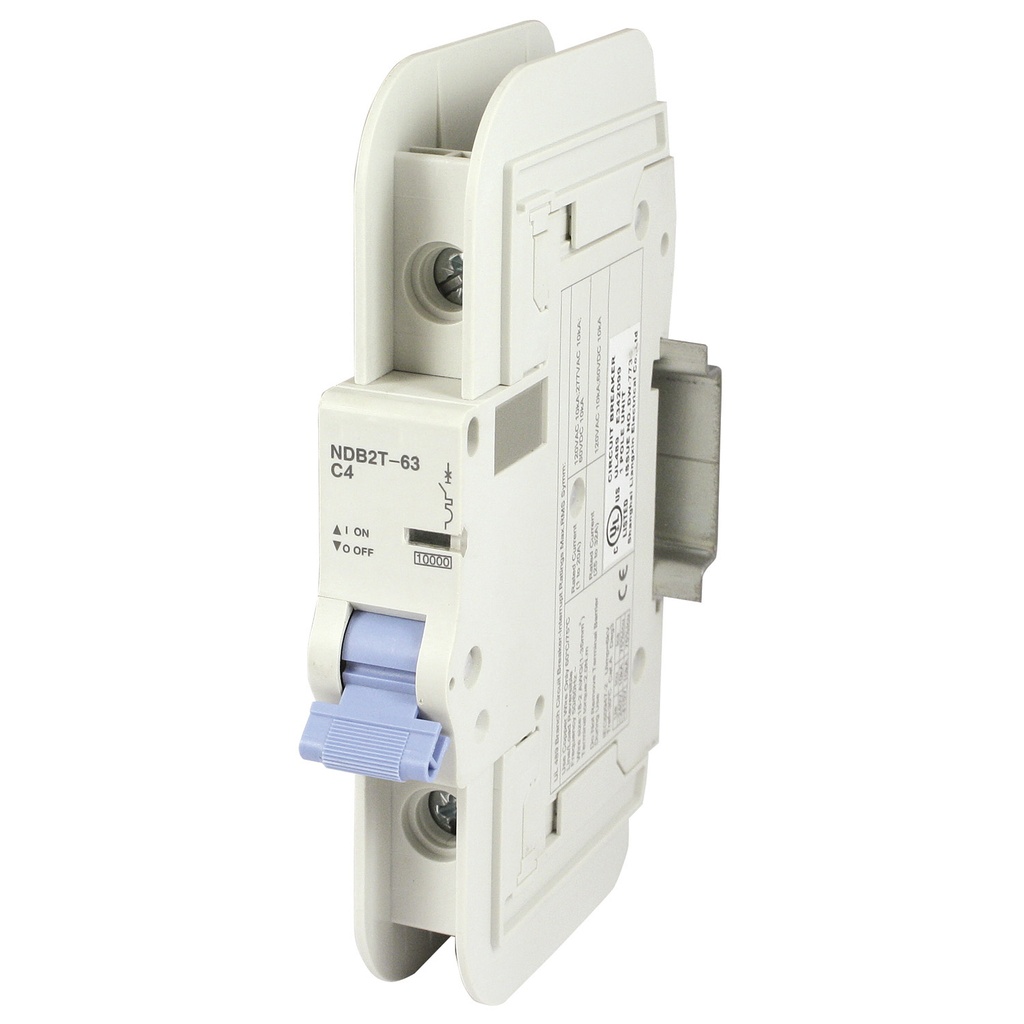

4 Amp, 1 Pole, 120/277V AC, 60V DC, Trip Curve: C, DIN Rail Mount-Miniature Circuit Breaker, UL489
SKU: NDB2T-63C4-1L
ASI NDB2T-63C4-1L is a UL489 DIN rail circuit breaker, 4 Amp, 120 Vac/60 Vdc, single pole. It is a din rail mounted thermal magnetic MCB that is factory tested 300% to guarantee quality and reliability. The MCB mini circuit breaker features visual trip indication, easy to wire screw clamp connections and mounts on the industry standard 35 mm DIN rail. The NDB2T UL489 DIN rail circuit breaker series of circuit breakers can be used in most industrial applications and are an ideal drop-in replacement to existing branch circuit breakers. The NDB2T-63C4-1L uses the general purpose C curve trip characteristics.
In Stock (12)
Cross-referenced as: 1489-A1C040, S201U-C4, SU201M-C4
Specifications
| Amperage | 4 Amps |
| Poles | 1 |
| Trip Curve | C Trip Curve (Medium) |
| Breaker Mounting | 35mm DIN Rail |
| UL | UL 489 |
