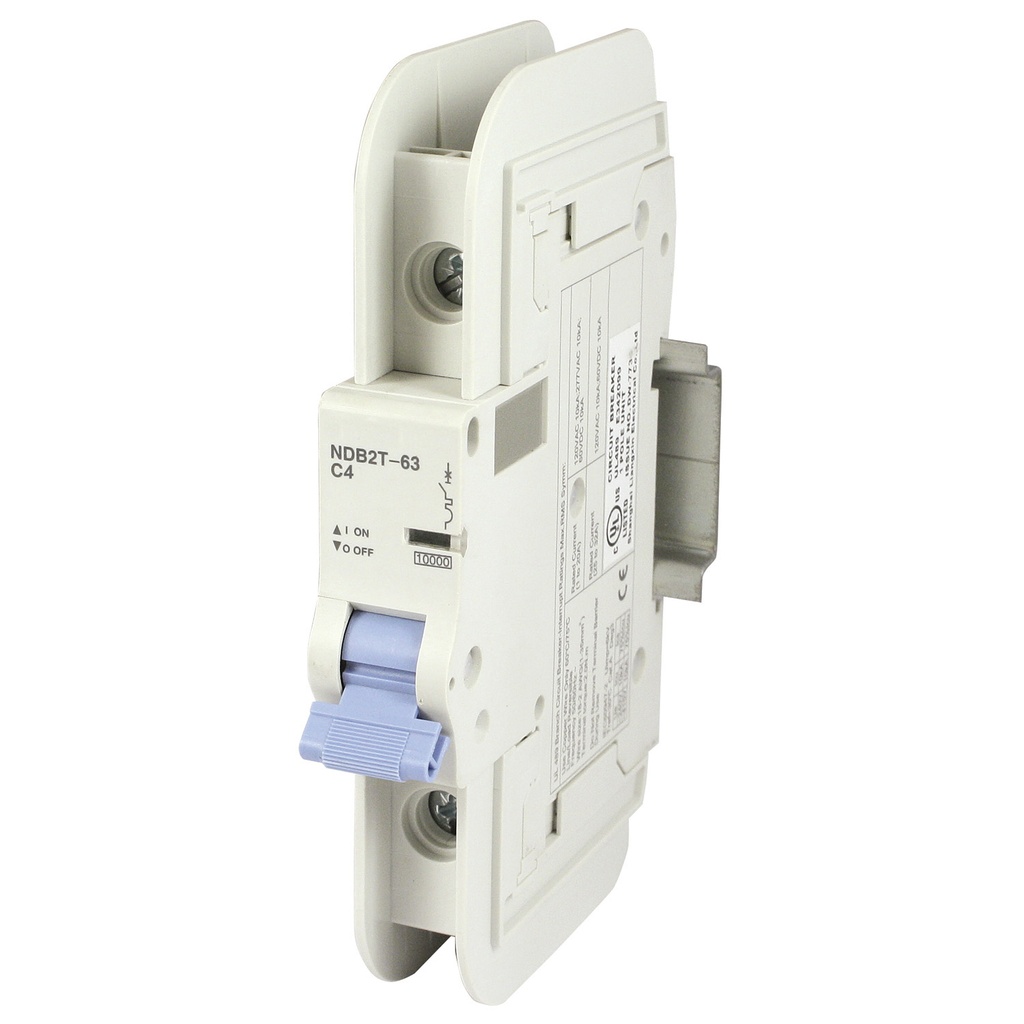

1 Pole, 40A, 120V AC, Trip Curve: C, DIN Rail Mount-Miniature Circuit Breaker, 18mm Width, UL489
SKU: NDB2T-63C40-1L
ASI NDB2T-63C40-1L is a UL489 DIN rail circuit breaker, 40 Amp, 120 Vac/60 Vdc, single pole. It is a din rail mounted thermal magnetic MCB that is factory tested 300% to guarantee quality and reliability. The MCB mini circuit breaker features visual trip indication, easy to wire screw clamp connections and mounts on the industry standard 35 mm DIN rail. The NDB2T UL489 DIN rail circuit breaker series of circuit breakers can be used in most industrial applications and are an ideal drop-in replacement to existing branch circuit breakers. The NDB2T-63C40-1L uses the general purpose C curve trip characteristics.
Alternate Part Numbers: 1489-A1C400, S201U-C40, SU201M-C40
Specifications
| Poles | 1 |
| Voltage | 120/277V AC, 60V DC |
| Amperage | 40 Amps |
| Trip Curve | C Trip Curve |
| Mounting Style | DIN Rail Mounted |
| Wire Range | 16 - 2 AWG |
| Width | 18 mm |
| UL | UL 489 |
| Interrupting Capacity | 10 kA |
| Circuit Breaker Type | Thermal Magnetic, Miniature |
