SKU: NDB2T-63D6-1L

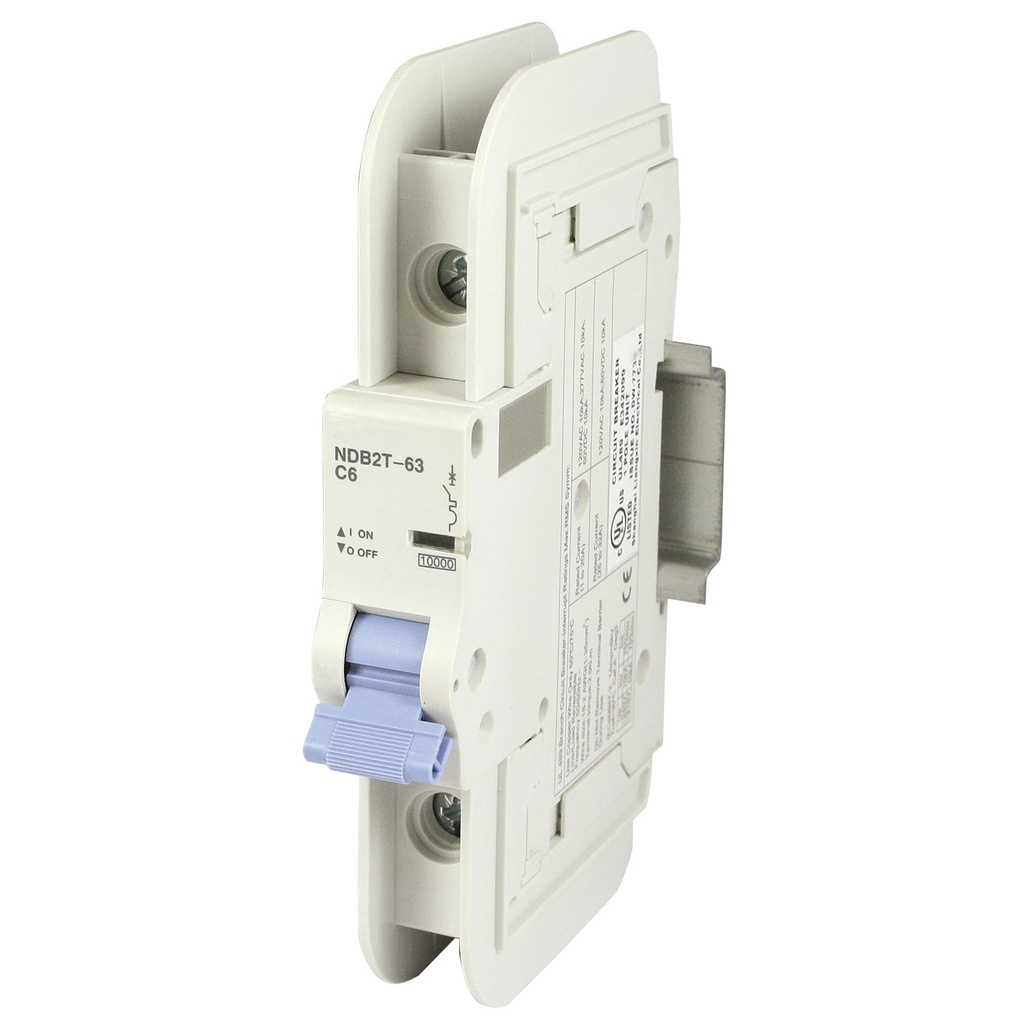

1 Pole, 6A, 120V/277V/480V AC, 60V DC, Trip Curve: C, DIN Rail Mount-Miniature Circuit Breaker, 18mm Width, UL489

https://www.sourceasi.com/web/image/product.template/2005/image_1920?unique=da690ce
SKU: NDB2T-63D6-1L

DIN Rail Circuit Breaker, 18mm Width, 6A, AC120V (1P); 227V (1P, 2P, 3P); 240V (2P, 3P); AC480V (1P, 2P, 3P); DC60V (1P/2P); DC125V (2P), 10kA MCB, 1 Pole, D Curve, UL489 Branch Circuit Protection

25.35 25.35 USD 25.35

25.35

Not Available For Sale

/Each
  • Poles
  • Voltage
  • Voltage
  • Amperage
  • Trip Curve
  • Mounting Style
  • Wire Range
  • Width
  • UL
  • Interrupting Capacity
  • Circuit Breaker Type
  • Circuit Breaker Type

This combination does not exist.


Specifications

Poles 1
Voltage 120/277V AC, 60V DC
Amperage 6 Amps
Trip Curve D Trip Curve
Mounting Style DIN Rail Mounted
Wire Range 16 - 2 AWG
Width 18 mm
UL UL 489
Interrupting Capacity 10 kA
Circuit Breaker Type Thermal Magnetic, Miniature
